2-15
SERVICING
(2.1 Outdoor Unit)
2.1.7 Removing Compressors for MC1 and MC2
(RAS-24FSG1, RAS-30FSG1, RAS-24FS5 and RAS-30FS5)
Do not expose the inner refrigeration cycle to the atmosphere for a long period of time when
replacing a compressor to protect the cycle from mixing water or foreign particles.
If exposed for a long time, seal pipe ends using caps or tape certainly.
Remove the caps for the compressor just before replacing the compressor.
Check to ensure each terminal No. when connecting compressor power wires.
If incorrectly connected, the compressor will fail due to reverse rotation.
Before starting this work, collect refrigerant into a cylinder from the cycle.

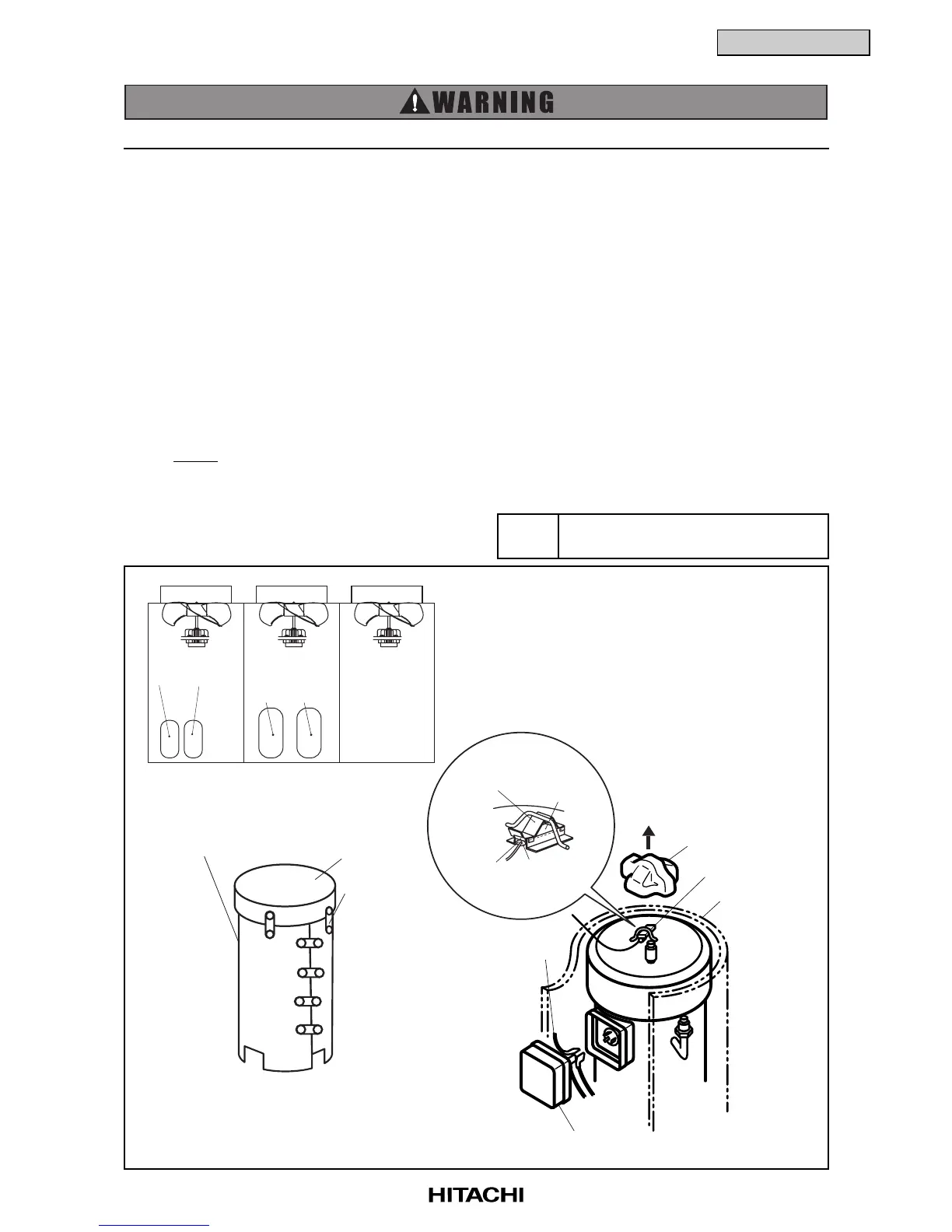

(1) Remove front service panel according to the item 2.1.2 “Removing Front Service Panel”.
(2) Release the lace for top cap of the compressor and remove the top cap.
(3) Remove the holder for Td thermistor on the compressor.
(4) Remove the Td thermistor on the top of the compressor.
NOTE:
The thermostat fixer, holder, thermostat holder and holder for Td thermistor are used again when
reassembling.
Keep them in a box so that the parts are
stored correctly.
TURN OFF all power source switches.
Phillips Screwdriver, Charge-Hose,
Adjustable Wrench or Spanner
Tool
Cap
Lace
Water-proof Cover
Holder for Td Thermistor
Water-proof Cover
Td Thermistor
Wires for Compressor
Ter minal Box Cover
Thermostat
Holder
Holder
Td
Thermistor
Thermostat
Fixer
MC1 MC2
MC3 MC4
To Next Page
