2-55
SERVICING
(2.4 4-Way Cassette Type)
2.4 4-Way Cassette Type

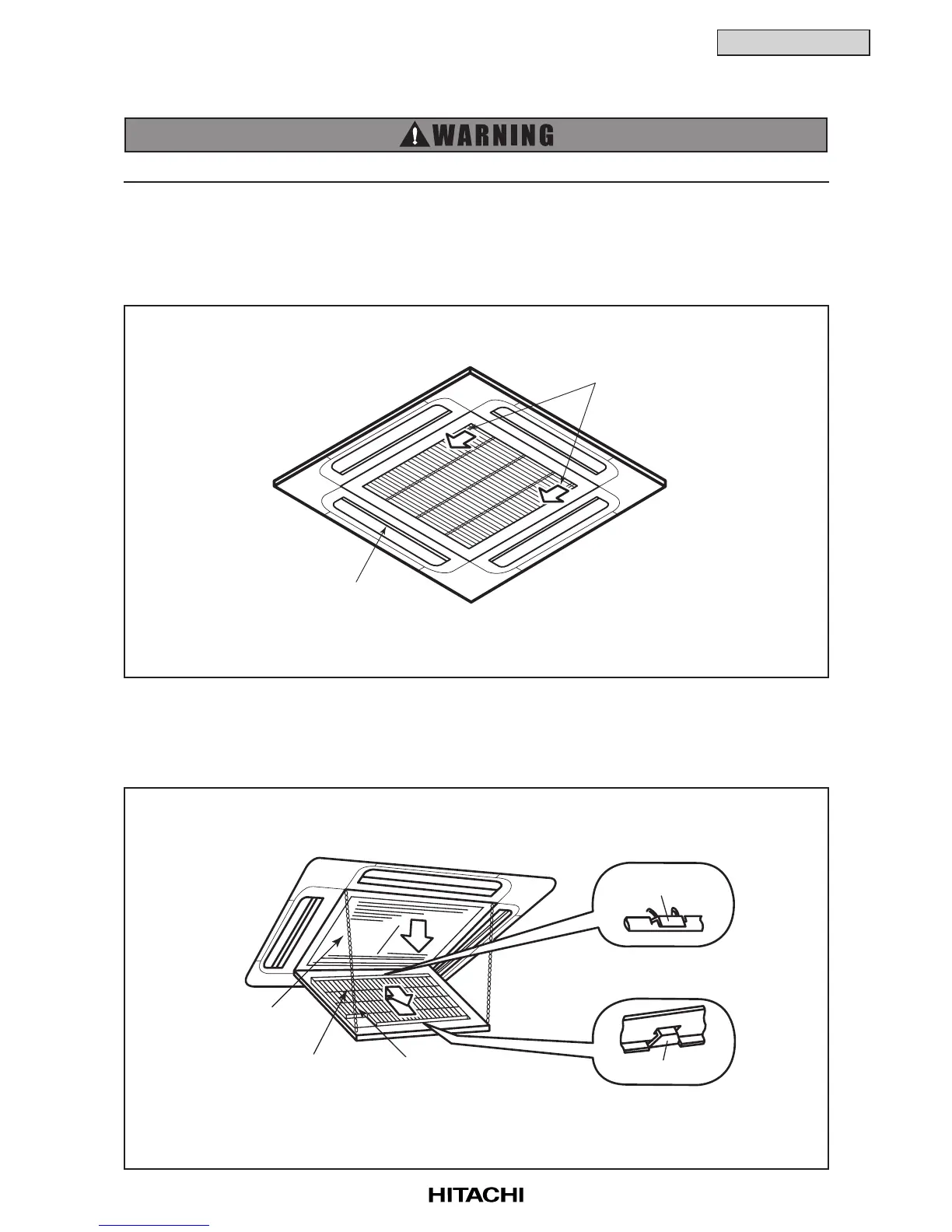

2.4.1 Removing Long Life Filter
(1) The long life filter is located inside of the air intake grille. Detach the filter after opening the air intake
grille. By pushing the knob in the arrow mark direction, the air intake grille can be opened.
(2) The filter can be removed from the air intake grille by supporting the lower side of the air intake grille
and filter, and unhooking it from the extrusion part.
2.4.2 Removing Air Intake Grille
By lifting the air intake grille at an angle of approximately 30° and releasing its chain, the air intake grille
can be removed by holding it upwards and then towards you. If the chain is released and the angle is 90°,
the air intake grille can not be removed.
Knob
Air Intake Grille
TURN OFF all power source switches.
Upper Part of Filter
Hook
Hook
Lower Part of Filter
Long Life Filter
Air Intake Grille
Chain
To Next Page
