2-19
SERVICING
(2.1 Outdoor Unit)

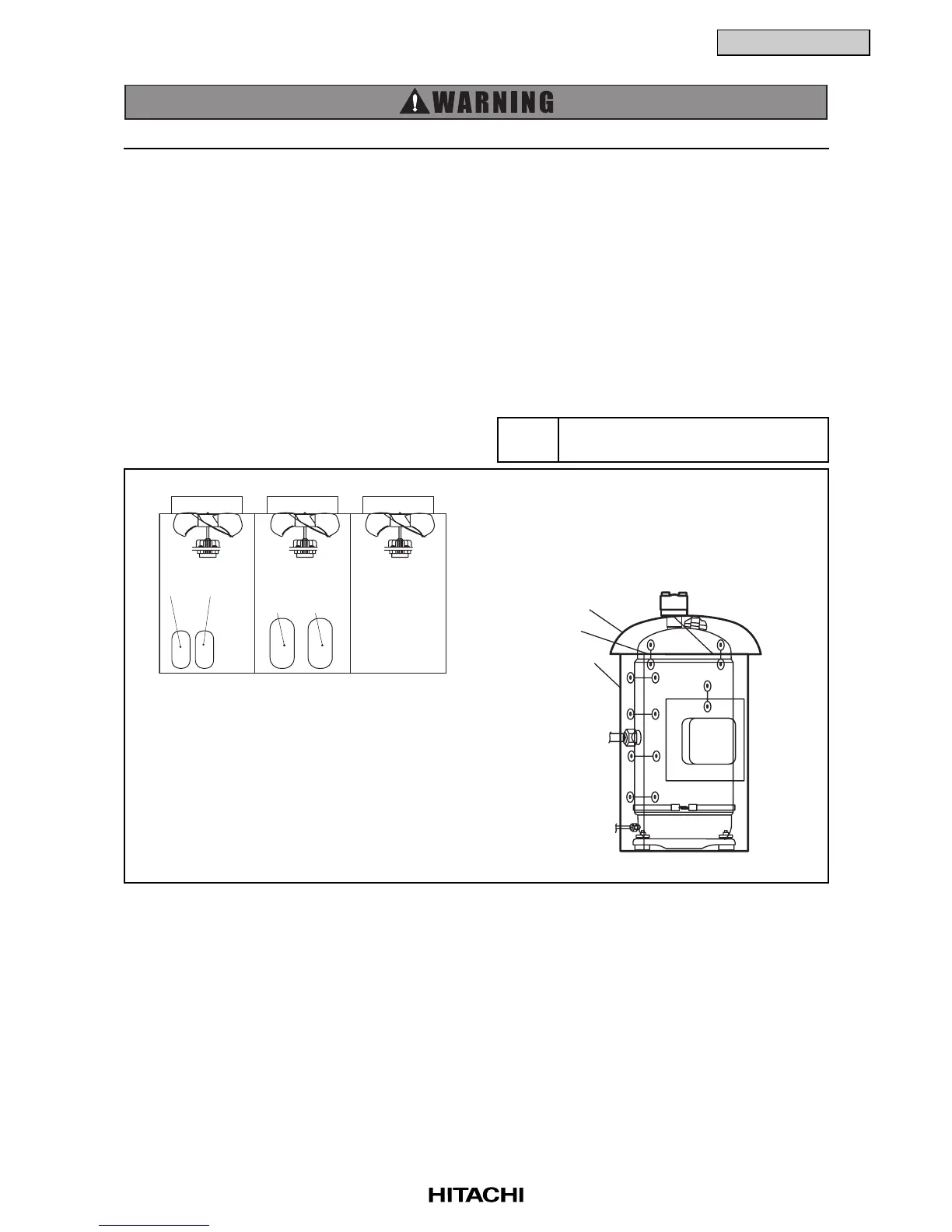

2.1.8 Removing Compressors for MC3 and MC4
(RAS-24FSG1, RAS-30FSG1, RAS-24FS5 and RAS-30FS5)
Do not expose the inner refrigeration cycle to the atmosphere for a long period of time when
replacing a compressor to protect the cycle from mixing water or foreign particles.
If exposed for a long time, seal pipe ends using caps or tape certainly.
Remove the caps for the compressor just before replacing the compressor.
Check to ensure each terminal No. when connecting compressor power wires.
If incorrectly connected, the compressor will fail due to reverse rotation.
Before starting this work, collect refrigerant into a cylinder from the cycle.
(1) Remove front service panel according to the item 2.1.2 “Removing Front Service Panel”.
(2) Release the lace for top cap of the compressor and remove the top cap.
TURN OFF all power source switches.
Phillips Screwdriver, Charge-Hose,
Adjustable Wrench or Spanner
Tool
MC1 MC2
MC3 MC4
Water-proof Cover
Cap
Lace
In Case of More than 6HP Compressor
To Next Page
