2-73
SERVICING
(2.5 2-Way Cassette Type)
Phillips Screwdriver,
Bucket (approx. 5 liters content)
Tool

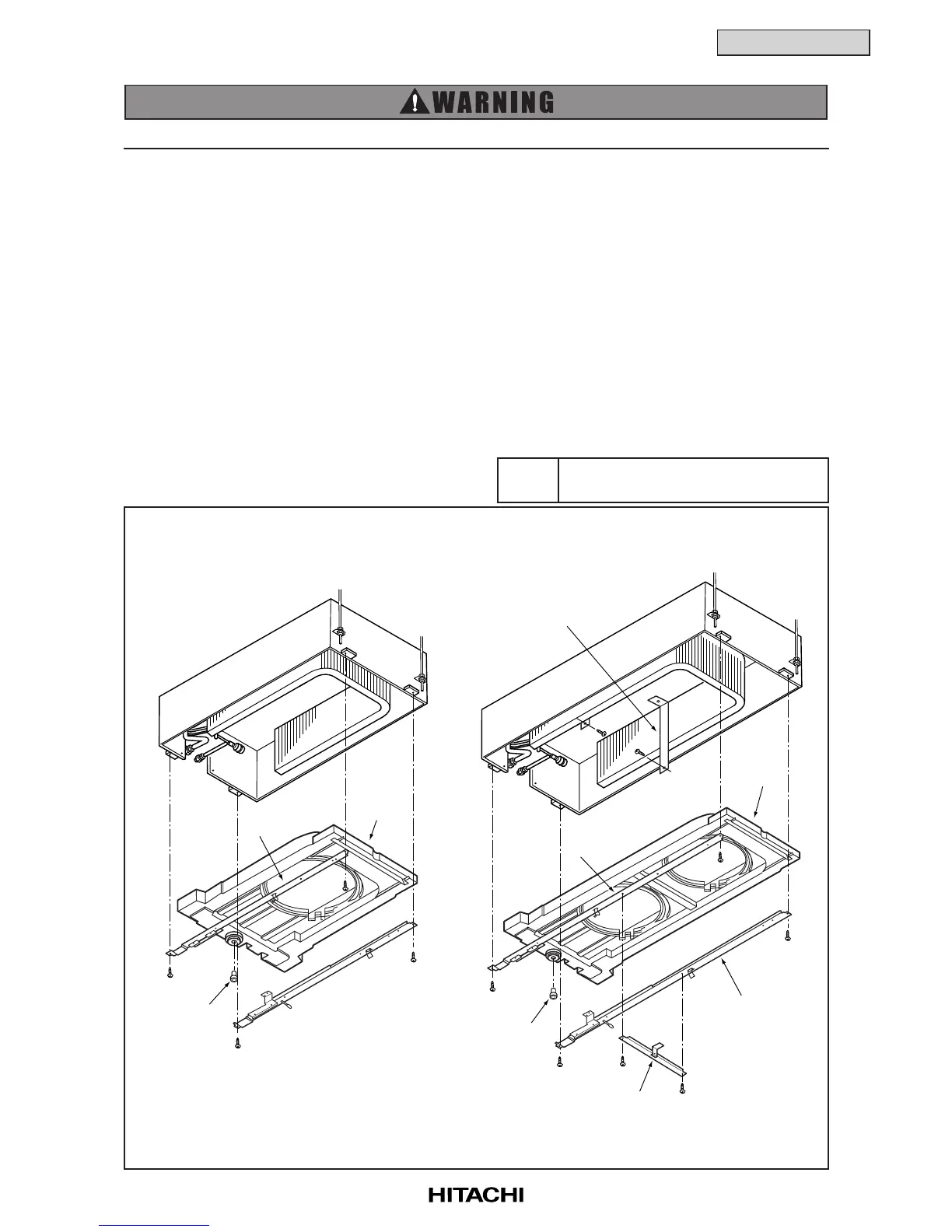

2.5.8 Removing Drain Pan
(1) Remove the air intake grille according to the item 2.5.1 “Removing Long Life Filter and Air Intake
Grille”.
(2) Open the electrical box cover according to the item 2.5.2 “Removing Electrical Box Cover”.
Disconnect the connecting wire between indoor unit and outdoor unit, electrical wiring for the
electrical box and the connectors inside of the electrical box.
(3) Remove the bell-mouth according to the item 2.5.4 “Removing Fan Runner and Fan Motor”.
(4) Discharge the drain water on the drain pan by removing the rubber plug. The sealing agent is used
around the rubber plug. However, the rubber plug can be removed by pulling it out. Do not scratch
the rubber plug by a cutter, etc. Check to ensure that the water hole is not clogged by pricking with a
pencil.
(5) Removing Drain Pan
(a) Remove two (2) screws fixing the enforced plate onto the fixing plate for the drain pan.
Remove two (2) screws fixing the support plate onto the fixing plate for the drain pan and remove
the support plate. (For RCD-4.0 and 5.0FSG1)
(b) Remove two (2) fixing plate for the drain pan.
(c) Remove the drain pan.
RCD-4.0FSG1 and RCD-5.0FSG1 RCD-1.0FSG1 to RCD-3.0FSG1
TURN OFF all power source switches.
Enforced Plate
Drain Pan
Fixing Plate for Drain Pan
Support Plate
Rubber Plug
Rubber Plug
Fixing Plate for
Drain Pan
Fixing Plate for Drain Pan
Drain Pan
To Next Page
