2-85
SERVICING
(2.6 Wall Type)
Phillips ScrewdriverTool
TURN OFF all power source switches.
(4) Remove lead wires for expansion valve, fan motor, thermistor for liquid pipe and gas pipe, AS motor
(✕2) and remote control switch from the connectors. And also remove earth wires (✕2) of the heat
exchanger.
(5) Remove the thermistor for discharge air from the holder fixed at the vertical louver of the air outlet.

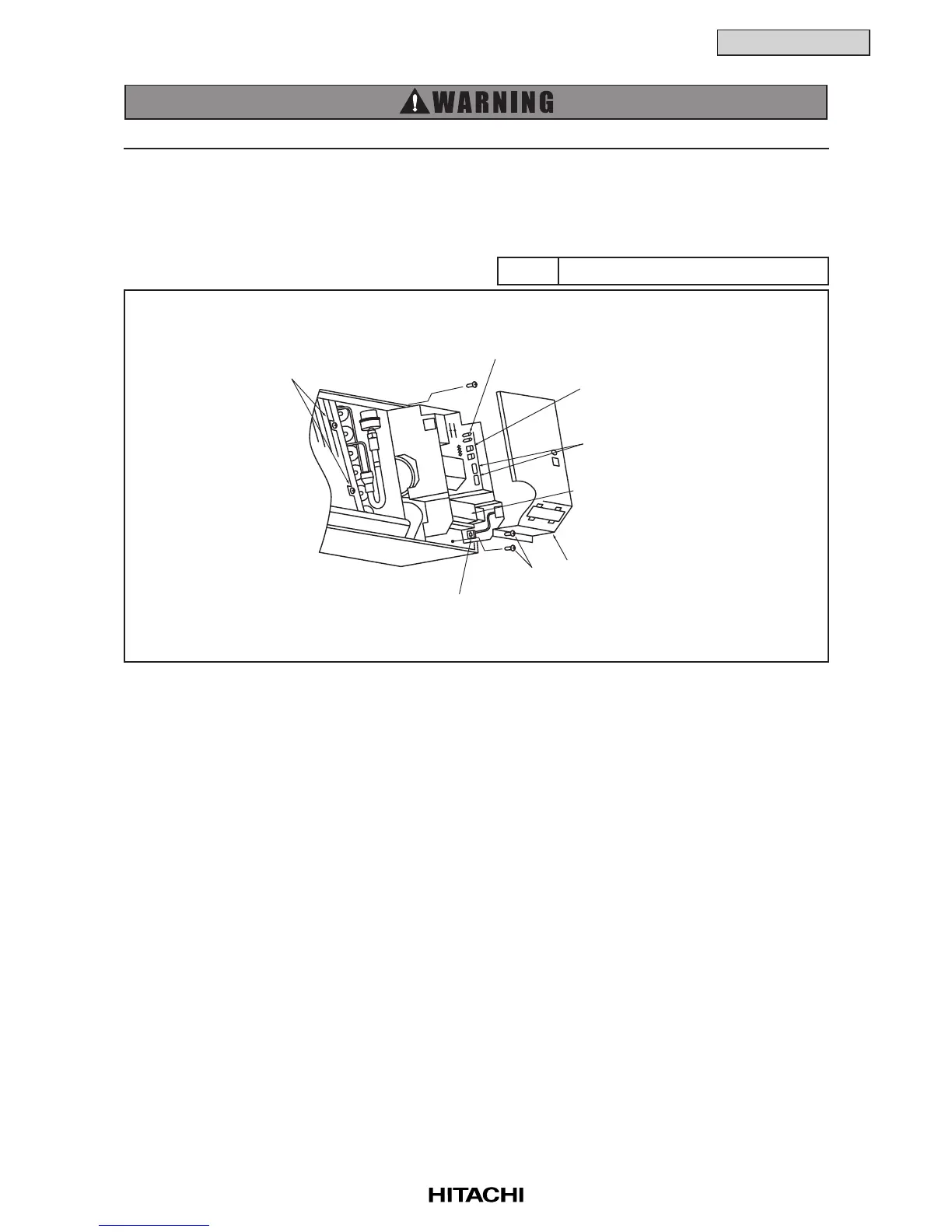

(6) Draw out the electrical box toward the front side after removing two (2) screws fixing the electrical
box.
(7) For attaching the electrical box, set the electrical box, connect the connectors and perform the
reverse procedures for removing the electrical box.
2.6.5 Removing Electrical Box Cover
(1) Remove the front panel according to the item 2.6.2 “Removing Front Panel”.
(2) Remove one (1) screw for the electrical box cover.
(3) Remove the power source wiring and wiring connection between indoor unit and outdoor unit.
Earth Screws
Connector for Remote
Control Switch
Connector for
Expansion Valve
Connector for
AS Motor
Electrical Box
Cover
Connector for
Fan Motor
Ter minal Block
Screw
Screws
To Next Page
