Hitachi RPI-4.0FSG1 - Page 304

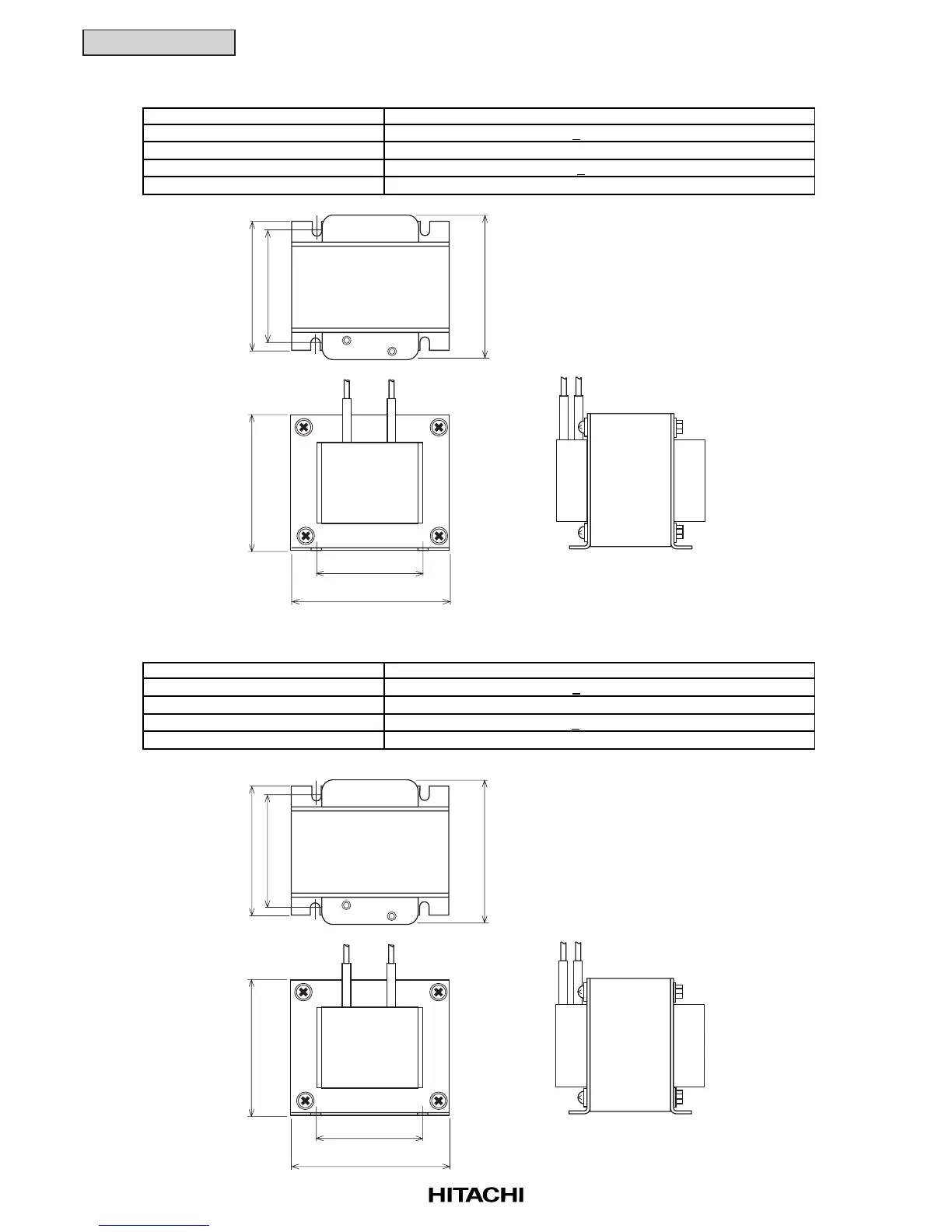

3-30
MAIN PARTS
Items Specifications
Character 0.5mH
+10% (at 1kHz)
Rated Current 37A
Direct Resistance 12.2mΩ
+20% (at 20
o
C)
Permissible Temperature Range -20
o
C to 65
o
C
66
±2
74
±2
86
±2
60
±0.5
47.5
±2
MAX. 80
56
±2
74
±2
86
±2
60
±0.5
37.5
±2
MAX. 70
for RAS-5 to 20FSG/FS3 (220V/60Hz)
for RAS-24 and 30FSG1/FS5
Items Specifications
Character 0.5mH
+10% (at 1kHz)
Rated Current 30A
Direct Resistance 15mΩ
+20% (at 20
o
C)
Permissible Temperature Range -20
o
C to 65
o
C
