Hitachi RX2 - 4.14 Print Specifications; 4.14.1 Character Height, Width, and Orientation

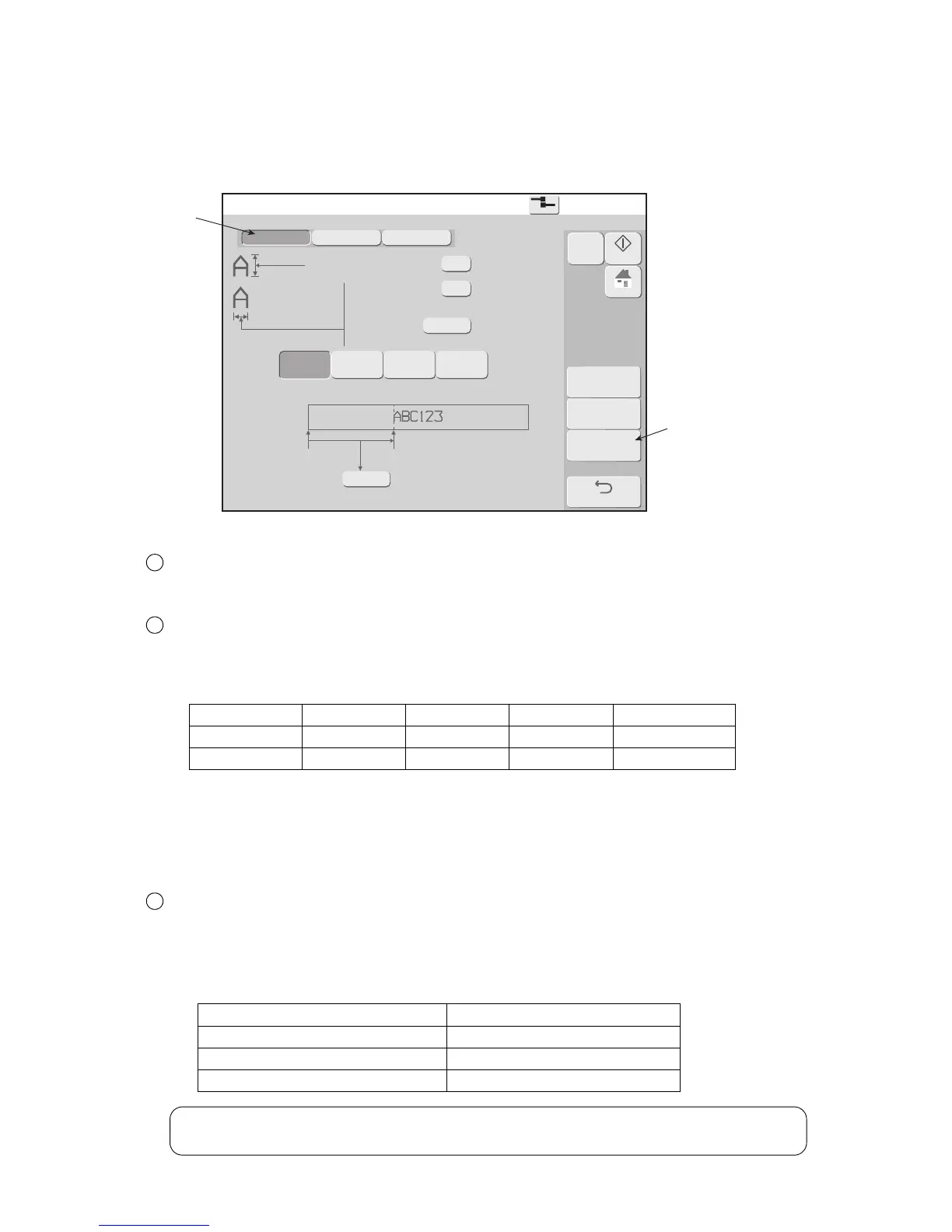

4-71 ●Set the print specifications
Print specifications 2015.07.0712:45
Com=0
[Stop  ]
Changeunit
Print
format
Edit
message
Message name [ ]
Ink drop use
Character width
（1/1〜1/16）
（0〜3999）
Character height （0〜99）
８５
０３
００００
Character
orientation
Printing method １（１：Single scan ２：Interlaced ３：Mixed）
Print start
delay
Arrow : Prin-
ting direction
００００
Print start delay
（0〜9999）SC
Sensor Print start
0:ＡＢＣ
→
1:ＡＢＣ
←
←
→
ＡＢＣ
2:
ＡＢＣ
3:
M
Manual
Startup
HOME
Back
1st screen
2nd screen 3rd screen
4.14 Set the print specifications
4.14.1 Set the character height, character width, and orientation
(1) Function
●Sets the character height, character width, character orientation, and print start.
Character height
●The character height can be specified.
1
3
Ink drop use percentage setting Character width setting
1/1 002
1/2 001
1/3 to 1/16 000
●For rotary encoder wiring and setup, see the Technical Manual “4.3.2-1 Rotary encoder
specifications, wiring and switch setting”.
Ink drop use percentage
●Sets the ratio of drops used in printing. For example, ink drop use 1/3 prints at a ratio of 1 in 3 ink
drops. The 2 ink drops are recovered from the gutter.
2
Setting range of ink drop use percentage
Model type 1 line 2 lines 3 lines Notes
RX2-B 1/3 to 1/16 1/4 to 1/16 1/4 to 1/16 -
RX2-S 1/2 to 1/16 1/2 to 1/16 1/2 to 1/16 Option : Up to 1/1
●When ink drop use is 1/1, high speed printing is possible. For ink drop use 1/16, low speed printing is
performed and the print quality improves.
●When Format setup is Free layout on the Change message screen, setting range of ink drop use
percentage is 1/2 to 1/16.
Character width
●The character width can be specified.
●The character width setting range is from 0 to 3999.
●When the product speed matching feature is incorporated (when the rotary encoder is connected),
set the character width as indicated below.
Changes the print start
delay input units.
Screen
switching
