Hitachi RX2

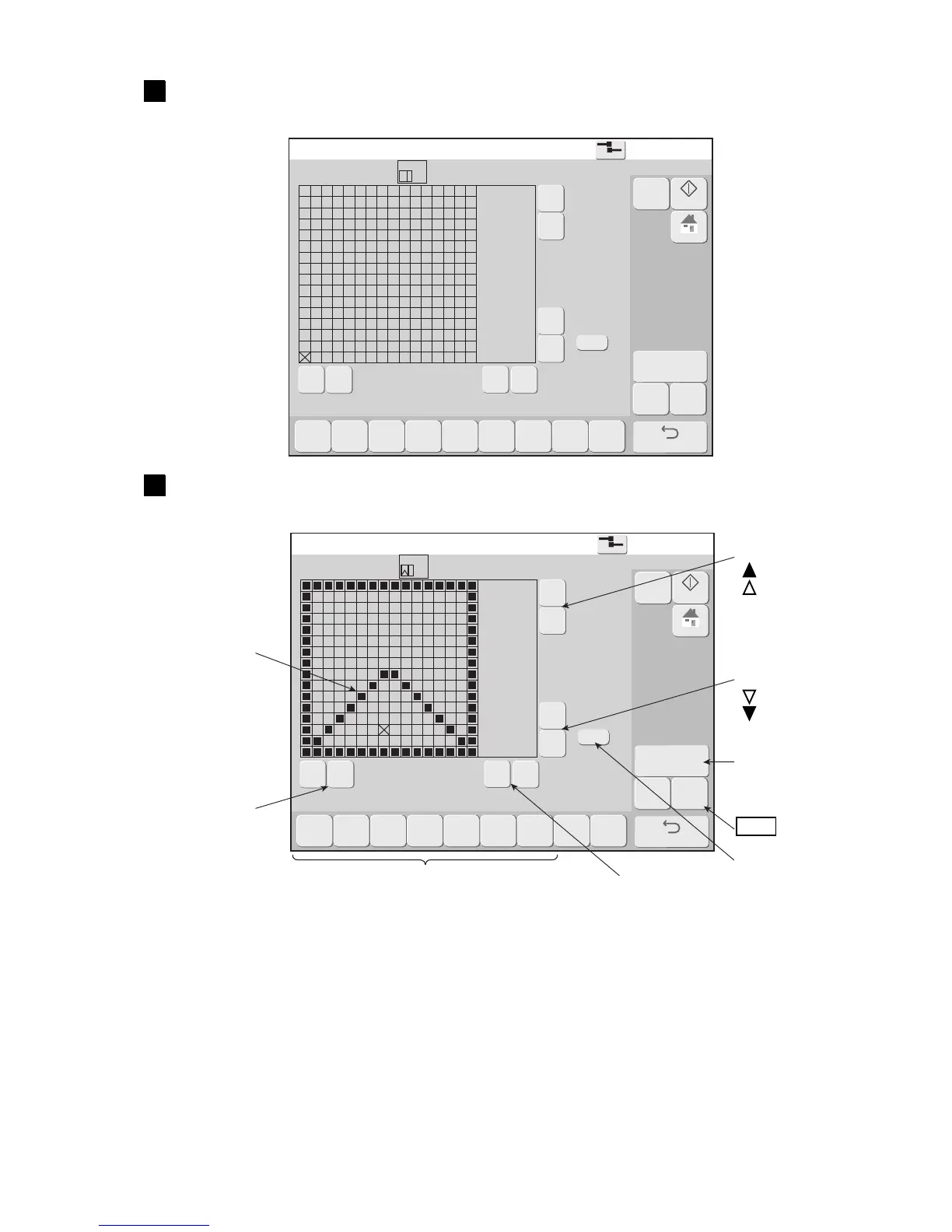

7-17 ●Creating a user pattern
4
Create user pattern 2015.07.0712:45
Com=0
[Stop ]
Pattern [ ]
Pattern size
Hor. ［ 16］
Vert.［ 16］
Cursor
position
Hor. ［ 1］
Vert.［ 1］
Zoom
×2
Clear
Back
Select Save
Dupli-
cate
Paste Move
Clear
area
Invert
Rec-
tangle
Rec-
tangle
fill
〈
《 》
〉
▲
△
▼
▽
M
Manual
Startup
HOME
Create user pattern 2015.07.0712:45
Com=0
[Stop ]
Pattern []
Pattern size
Hor. ［ 16］
Vert.［ 16］
Cursor
position
Hor. ［ 8］
Vert.［ 3］
Zoom
×2
Clear
Back
Select Save
Dupli-
cate
Paste Move
Clear
area
Invert
Rec-
tangle
Rec-
tangle
fill
〈
《 》
〉
▲
△
▼
▽
M
Manual
Startup
HOME
Set Zoom and change the display magnification of the dot pattern creation area.
The display magnification of the dot pattern creation area changes.
5
Create a pattern at the dot pattern creation area. When touched directly, the dot
shading is reversed.
Scroll up
8 dots
1 dot
Scroll down
1 dot
8 dots
Clears the
pattern dots
Save
When a dot was
reversed by
touching it directly,
make the display
magnification
quadruple.
Scroll rigth
> 1 dot
>> 8 dots
Draws a graphic. (See 7.3.3.)
Scroll left
<< 8 dots
< 1 dot
Dot shading of
touched position
is reversed.
