S1 series standard inverter
-211-
Inverter
specification
W1
W2
W3
W4
H1
H2
H3
H4
D1
D2
Installation
hole
diameter
Fixing
screw
132kW200kW
500
180
480
60
870
850
796
37
360
178.5
11
M10

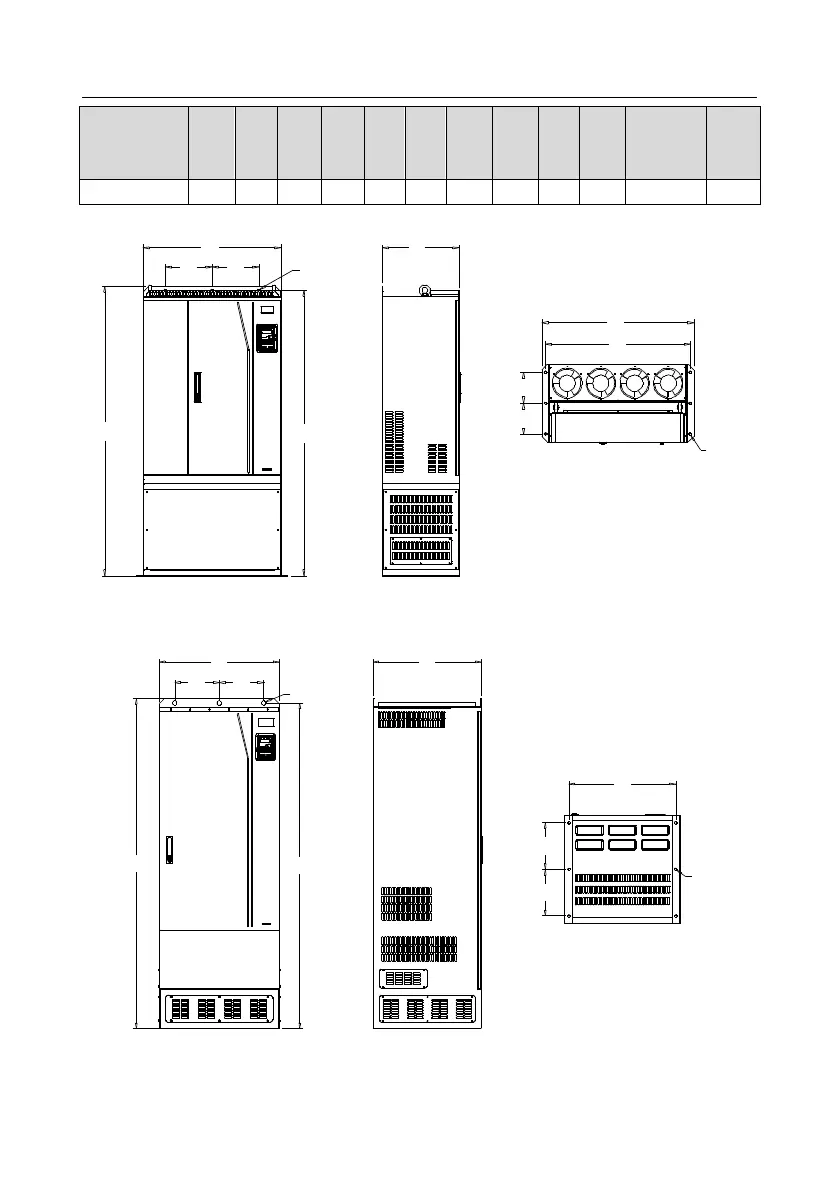

11.4.4 Floor installation dimensions
6- Φ12.0
3- Φ13.0
D2
D2
W3
W1
D1
H2
H1
W2
W2
W4
Fig 11.14 Floor installation diagram of inverters of 400 V, 220 to 315 kW
612.0
W3
D2
D2
D1
3- Φ22. 0
H2
H1
W2
W2
W1
Fig 11.15 Floor installation diagram of inverters of 400 V, 355 to 400 kW
