S1 series standard inverter
-17-
OK NG
NG
A. Vertical installation
B. Horizontal installation
C. Transverse installation

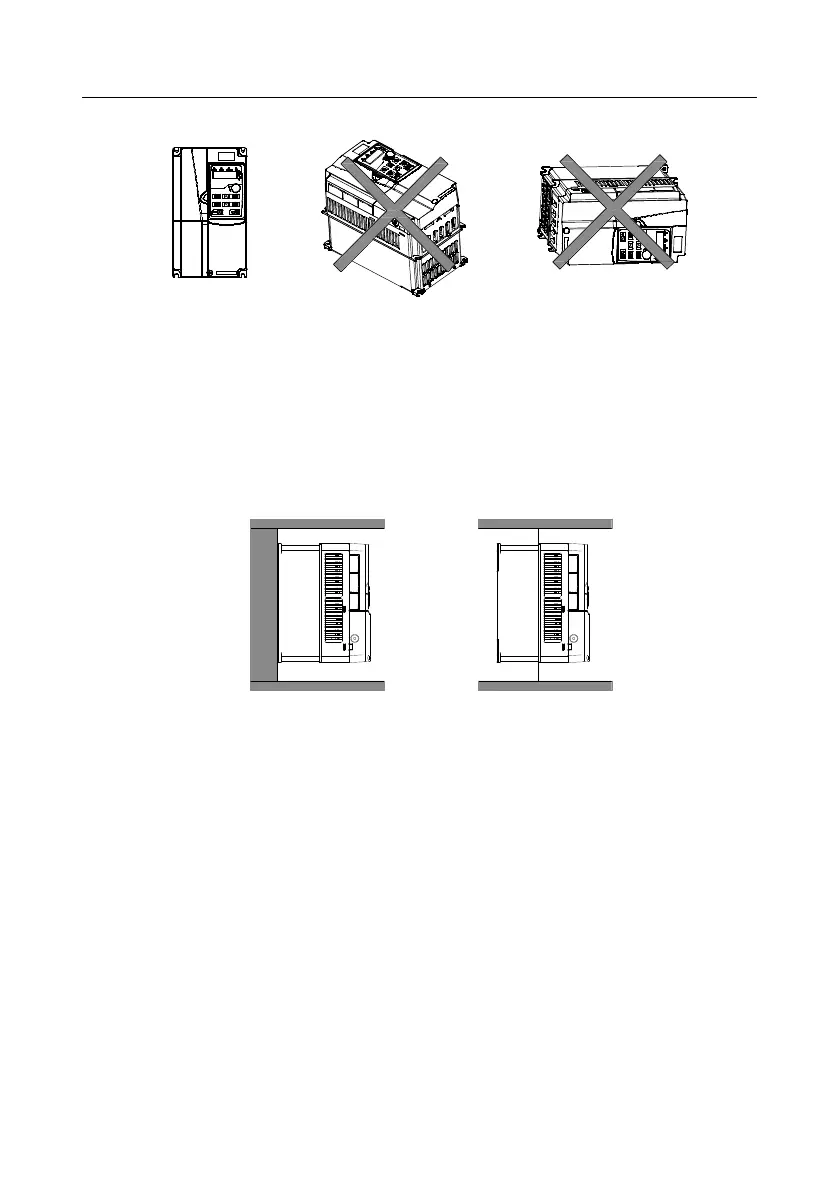

Fig 4.1 Installation direction of the inverter
4.2.3 Installation mode
There are four kinds of installation modes based on different inverter dimensions.
1. Rail-mouting: suitable for 230V and for 400V up to 2.2kW.
2. Wall-mounting: suitable for 400V up to 315kW.
3. Flange-mounting: suitable for 400V 4200kW.
4. Floor-mounting: suitable for 400V 220400kW.
Wall-mounting
Flange-mounting
Fig 4.2 Installation mode
(1) Mark the position of the installation hole;
(2) Mount the screws or bolts onto the designated position;
(3) Put the inverter on the wall;
(4) Tighten the fixing screws on the wall.
Note:
1. Flange-mounting plate is a must for 400V 475kW inverters that adopt flange-mounting mode;
while 400V 90200kW models dont need.
2. Optional installation base is available for 400V 220315kW. The base can hold an input AC
reactor (or DC reactor) and an output AC reactor.
