S1 series standard inverter

-19-

4.2.6 Vertical installation

Cold

Hot

air

Cold

Hot

air

Windshield

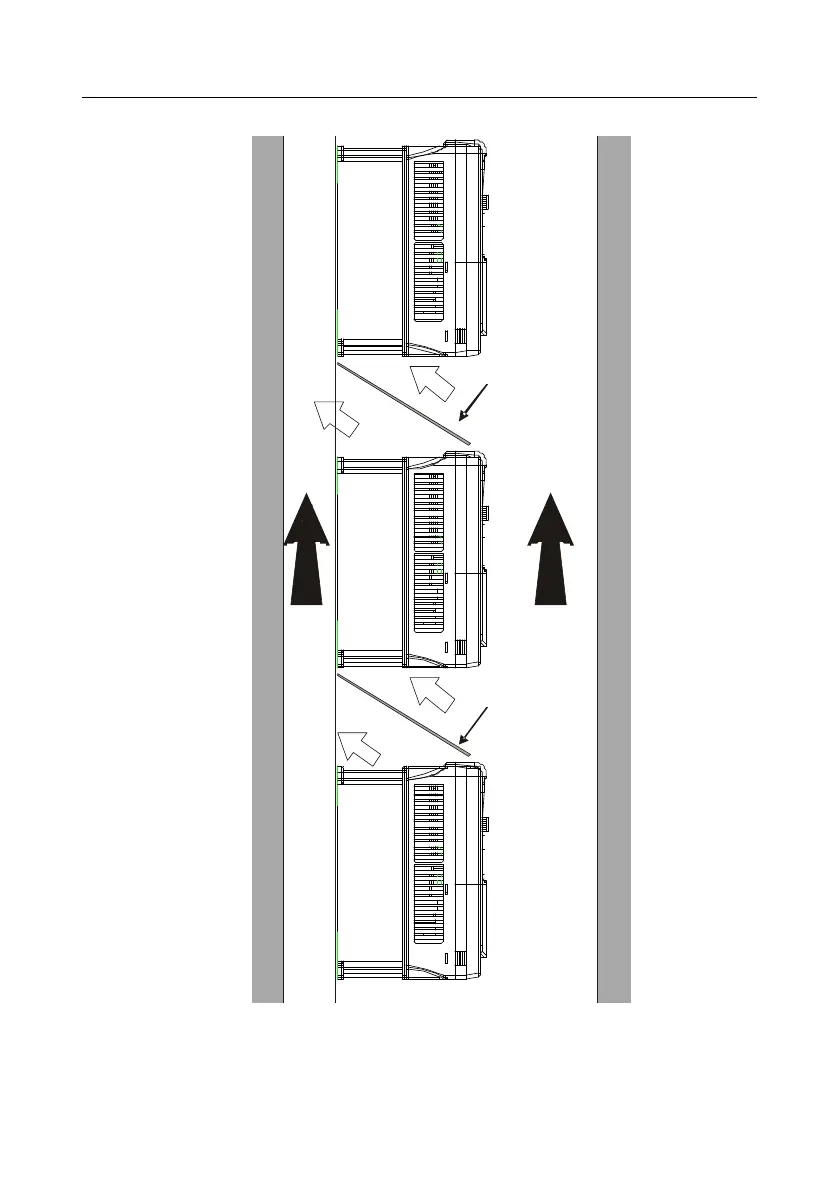

Fig 4.5 Vertical installation

Note: During vertical installation, users must install windshield, otherwise, the inverter will experience

mutual interference, and the heat dissipation effect will be degraded.

Questions and Answers:

Need help?

Do you have a question about the Hitachi S1 Series and is the answer not in the manual?

General

Output Frequency	0 - 400 Hz
Overload Capacity	150% for 60 seconds
Frequency	50/60 Hz
Control Method	Sensorless Vector Control
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication	RS485, Modbus RTU
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC (Matches Input Voltage)
Cooling Method	Fan Cooled
