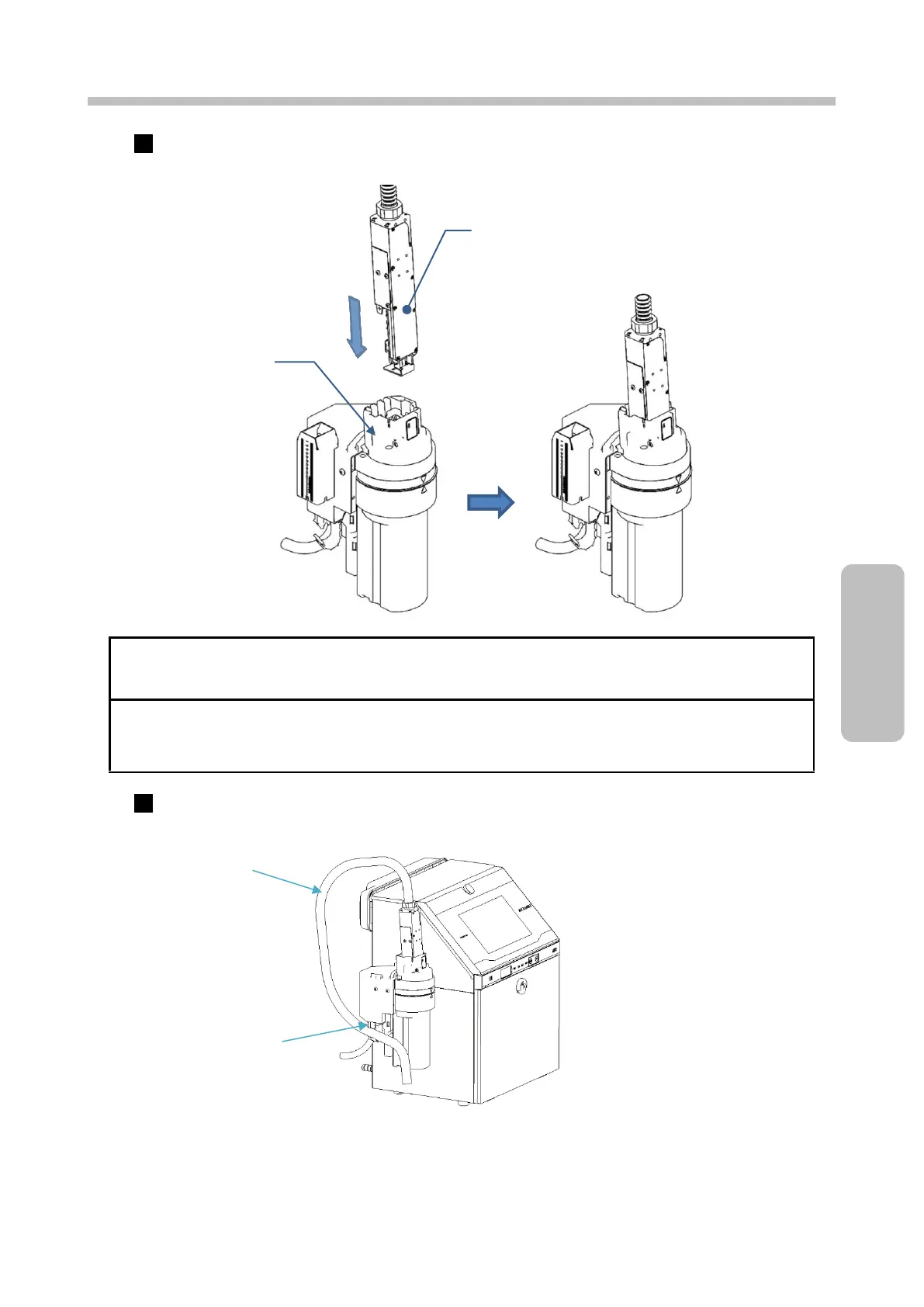

Insert the print head into the print head slot of the head cleaning unit in the direction indicated in the
figure below.
NOTE
● Do not insert the print head into the head cleaning unit forcibly.
Otherwise, some part may deform, fall off, or be damaged.
To prevent a load on the base of the print head under the weight of the head cable, hang the head cable
on the cable hook attached to the head cleaning unit.
● There is no need to use the cable hook if the head cable is fixed in any other way so that no load is
applied to the base of the print head.
5
Print head slot
Print head
Insert
6
Head cable
Cable hook
