Chapter 4. Ink and Makeup Replenishment
4-17
Chapter 4.

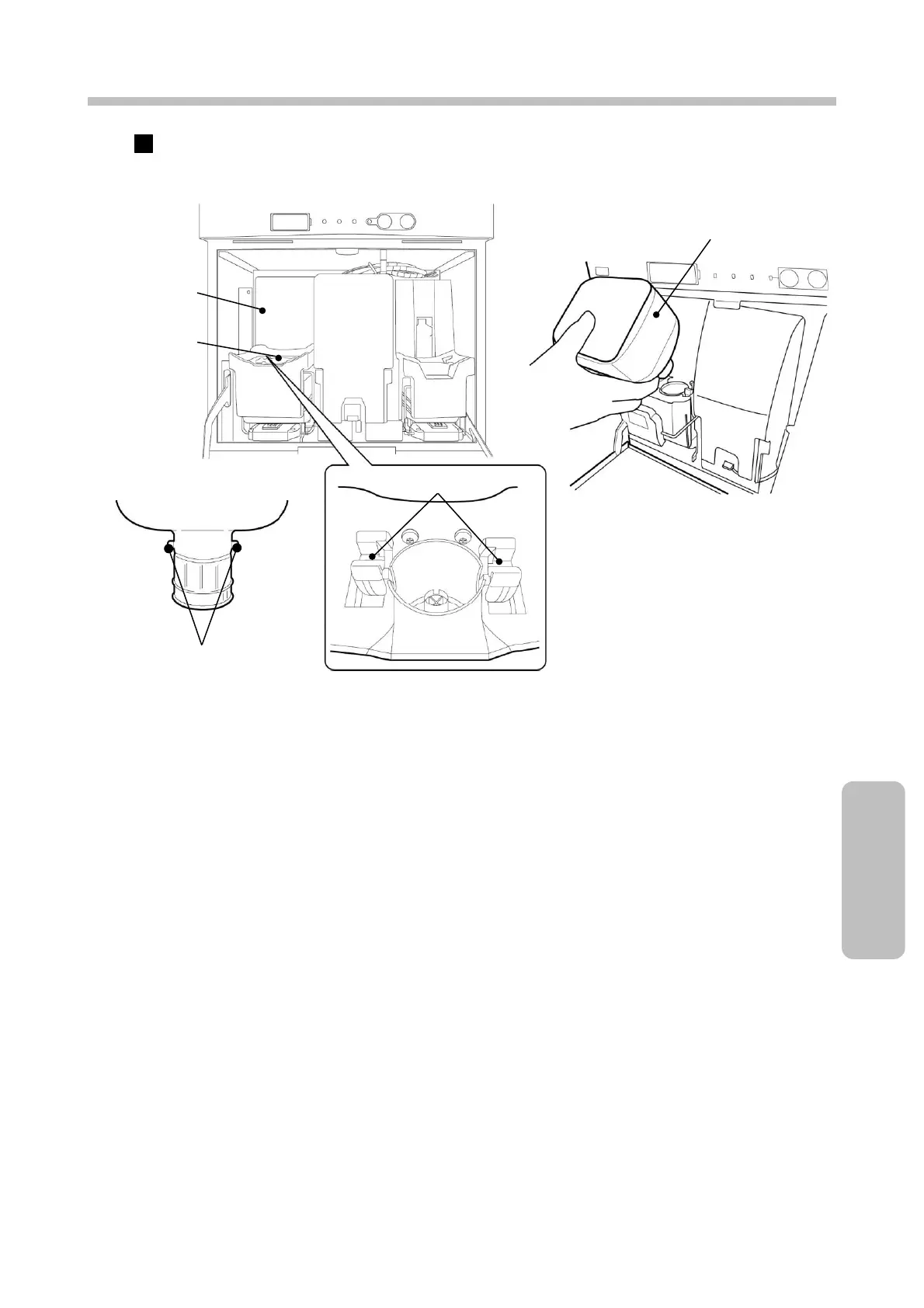

Set a new cartridge bottle in the specified position.
Install the boss of the cartridge bottle on the boss guide of the makeup supply port.
Note: If a foreign object such as a screw is found or gets in the makeup supply port, remove it.
5
Set a new cartridge bottle.
Makeup side
Makeup supply
port
Boss guide
Boss
