Chapter 2 Component Names and Functions
2-2
This chapter describes the names and functions of components of this unit.
2.1. External Views

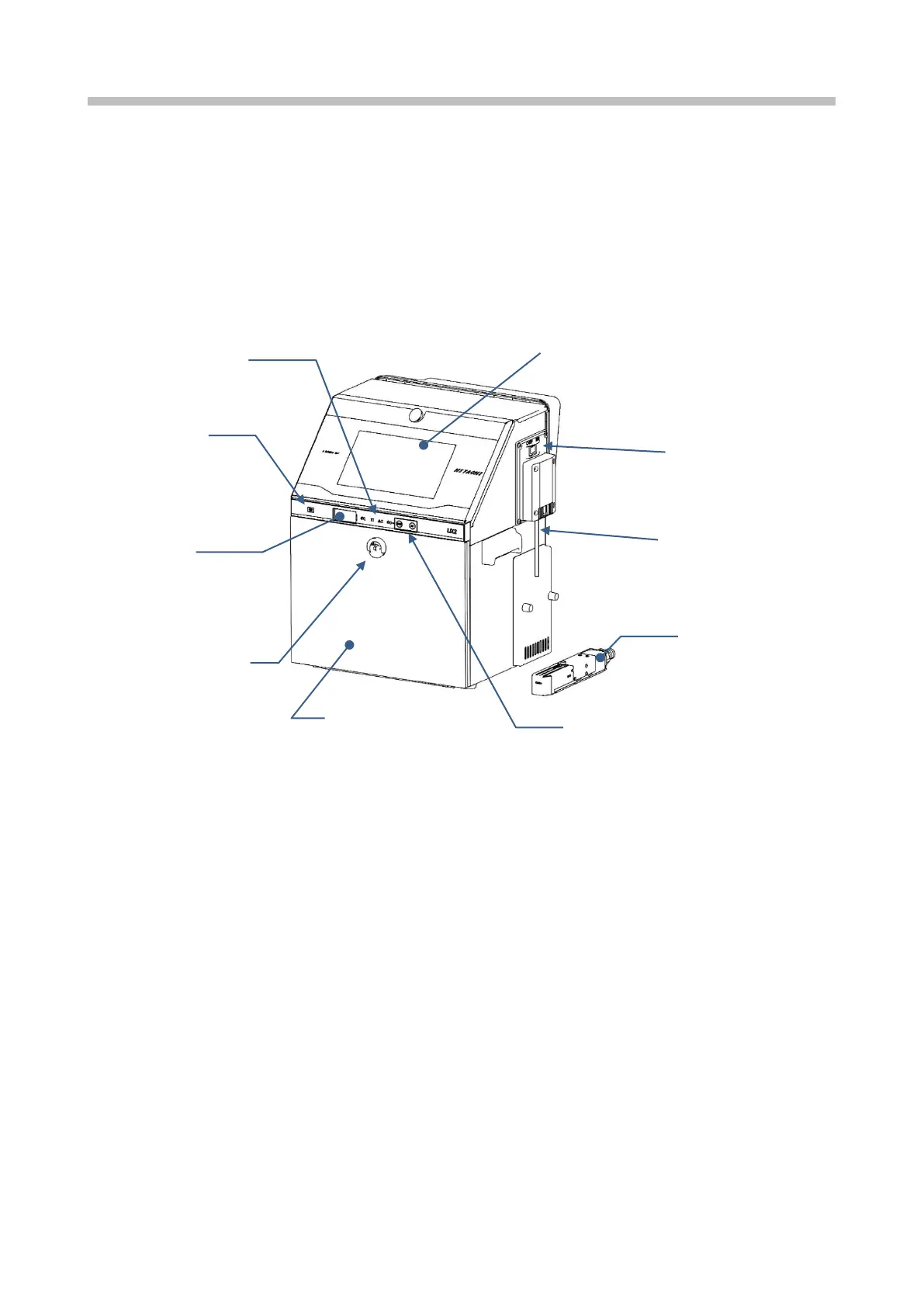

(1) External views (front side)
The external views of the unit are as follows.
Operation screen
Used to operate this unit.
Main power switch
Turns the unit ON and
OFF.
Power cable
Dedicated to 100 VAC.
Maintenance cover
Opened/closed for ink and
makeup replacement and
other maintenance purposes.
ON/STOP switch
Starts or stops the unit with the main
power on.
Print head
Performs printing.
Maintenance cover
knob
USB cover
Opened/closed when
copying print data to
USB memory.
Operating status indicator
lamps
Displays "Ready", "Fault"
and "Warning".
RFID reader
Reads ID of ink and
makeup for certification.
