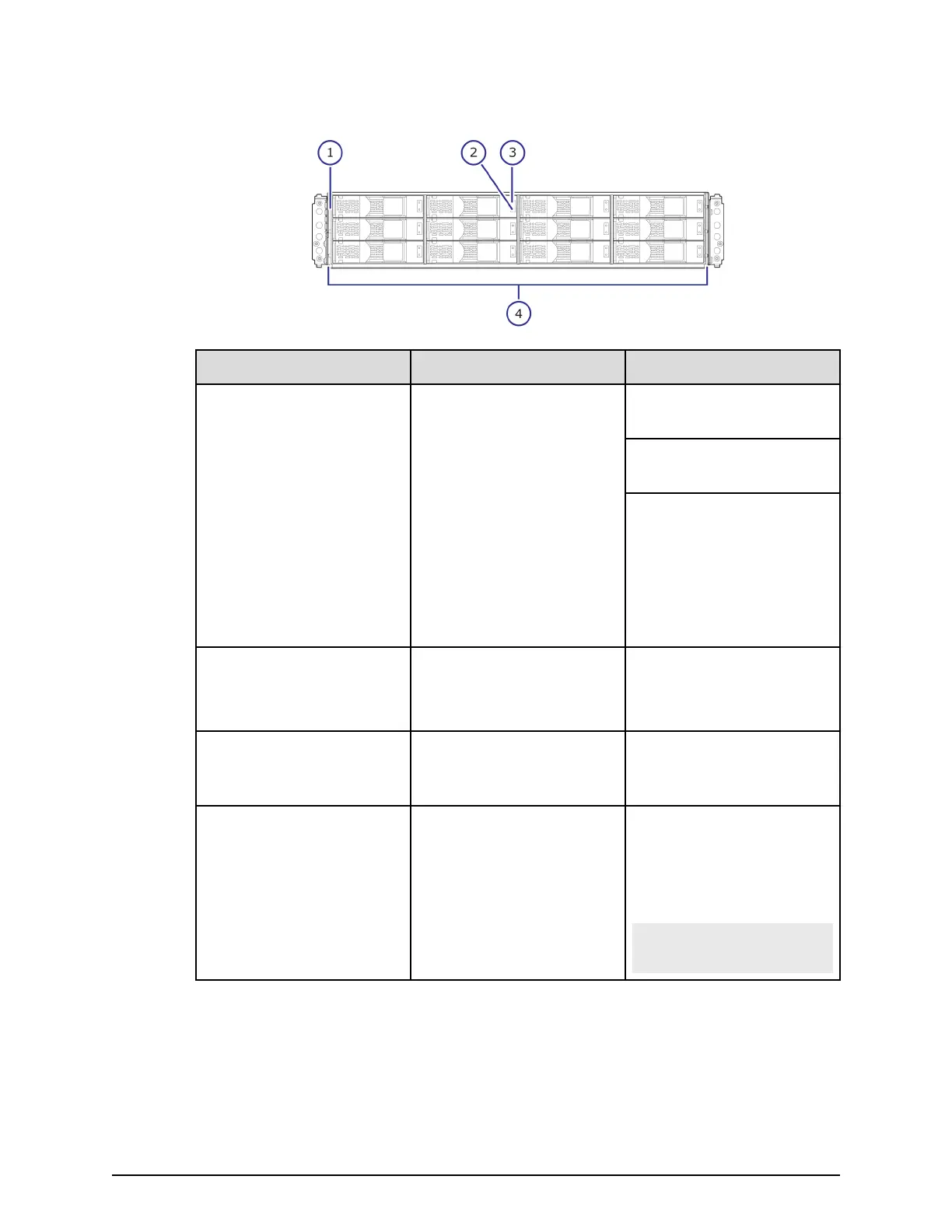

LFF front panel without bezel
Number Item Description
1 POWER, READY, and
LOCATE LEDs
Green: Drive tray is
powered on.
Green: Drive tray is
operational.
Amber:
Indicates the location of
the chassis.
Can be turned on or
turned o by the
maintenance utility.
2 ACT LED Green: Normal operation.
Blink green: Drive is being
accessed.
3 ALM LED Red: Drive stopped due to
a failure and can be
replaced.
4 Large form-factor drives The twelve 3.5-inch large
form factor drives are
positioned horizontally.
The slots are organized in
the following order:
8 9 10 11
4 5 6 7
0 1 2 3
LFF front panel without bezel
Chapter 3: Drive trays
Hitachi Virtual Storage Platform G350, G370 Hardware Reference Guide 38
