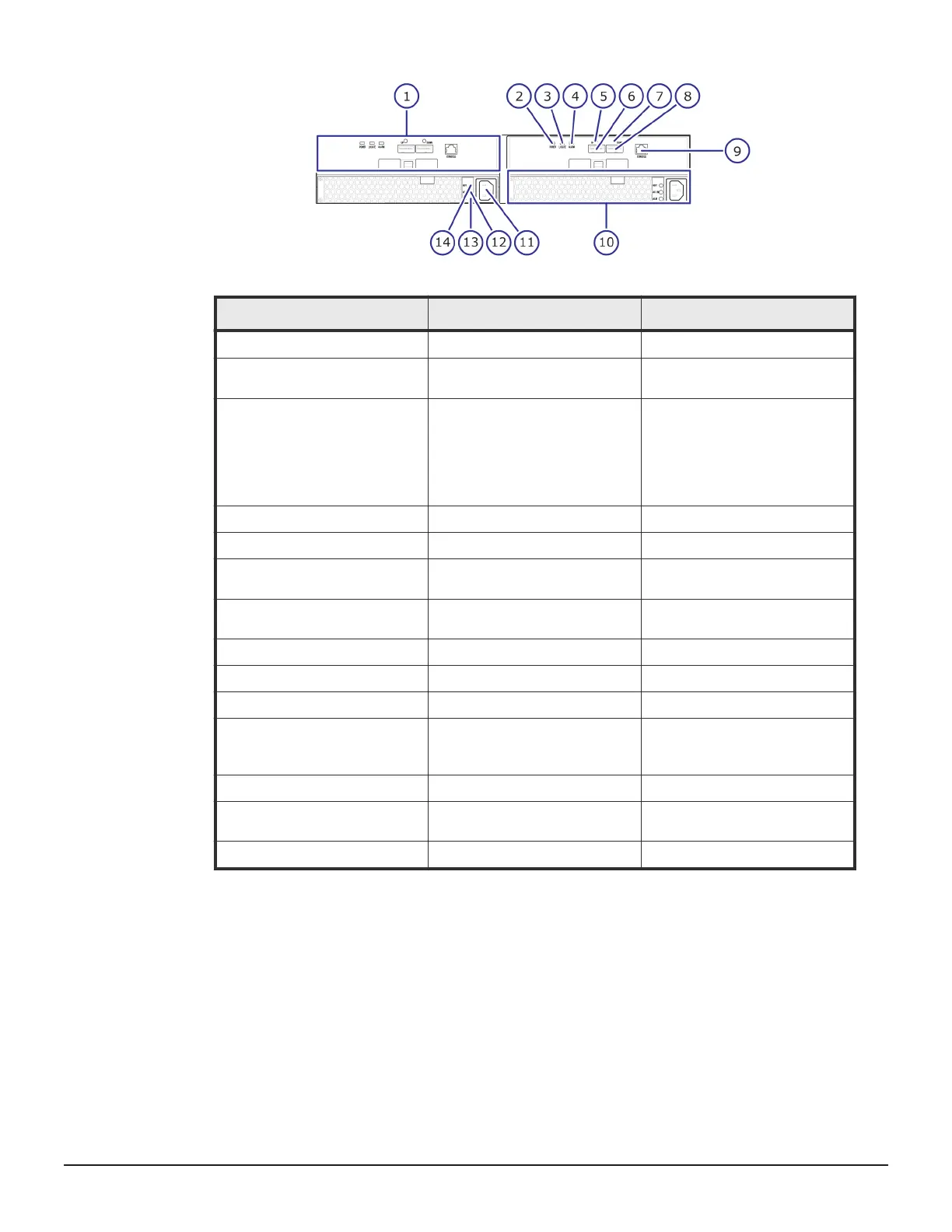

Hitachi Virtual Storage Platform G400 Reference Guide

Number
Item Description
1
ENC
N/A
2
POWER LED Green: ENC is in the power-on
state.
3
LOCATE LED Amber:
• Indicates the location of the
chassis.
• Can be turned on or turned
off by the maintenance
utility.
4
ALARM LED Red: ENC can be replaced.
5
PATH (IN) LED Blue: IN side port is linked up.
6
PATH (IN) connector Connects to a controller or
drive tray.
7
PATH (OUT)LED Blue: OUT side port is linked
up.
8
PATH (OUT) connector Connects to a drive tray.
9
Console This port is reserved.
10
Power supply unit
N/A
11
Receptacle Connects to the power cable
provided with the storage
system.
12
AC IN LED Green: Normal operation.
13
ALM LED Red: Power supply unit can be
replaced.
14
RDY LED Green: Normal operation.
Large form-factor (LFF) drive tray
LFF with front panel bezel
44 Storage system drive trays
Hitachi Virtual Storage Platform G400, G600 Hardware Reference Guide
