OPERATOR'S STATION
1-34
Air Conditioner
Most air conditioner functions are operated by using switches
(3) and (4), however air vent selection and turning A/C ON and
OFF are performed from the air conditioner setting screen in
the menu. (Refer to the page 1-115)
Circulation Air Mode

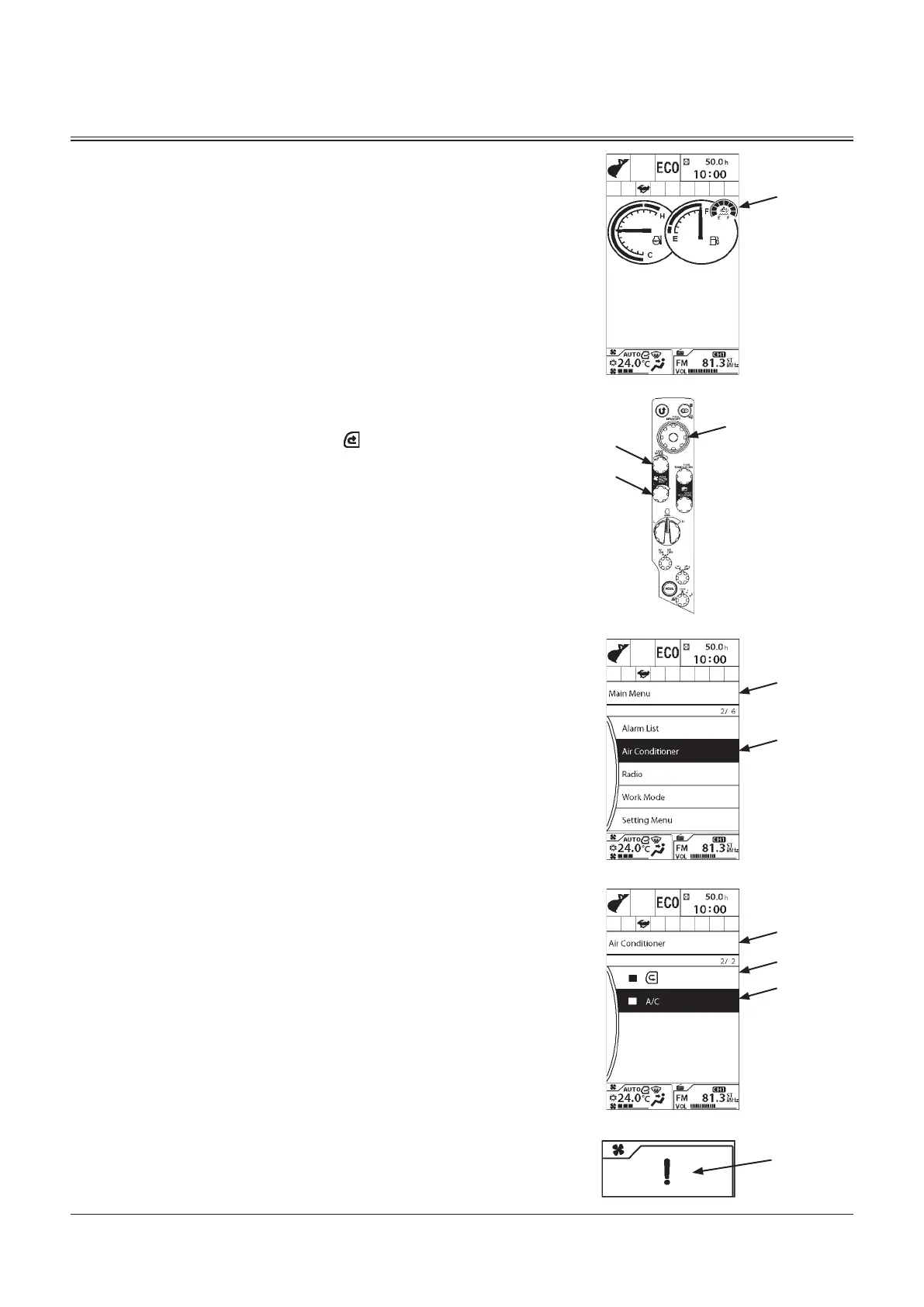

1. Push selector knob (2) while displaying Basic Screen (1)
to display Main Menu screen (5).
2. Rotate selector knob (2) to highlight Air Conditioner (6).
3. Push selector knob (2) to display Air Conditioner screen
(7).
Rotate selector knob (2) to highlight (8) mark.
4. Push selector knob (2) to set the circulation air mode.
5. Push selector knob (2) again to switch the fresh air mode.
Air Conditioner ON/OFF
1. Rotate selector knob (2) to highlight A/C (9).
2. Push selector knob (2) to turn the air compressor ON.
3. Push selector knob (2) again to turn the air compressor
OFF.
f
NOTE: When the function is ON, the mark "" is displayed in
green. When the function is OFF, the mark "" is displayed in
gray.
IMPORTANT: If mark (10) is displayed on the air
conditioner display, communication between the air
conditioner and the monitor is abnormal. Consult your
authorized dealer.
1
5
7
6
8
9
10
2
3
4
MDAA-01-091EN
MDAA-01-226
MDAA-01-089EN
MDC1-01-001
MDCD-01-026
