Hitachi ZAXIS 135US-6 class User Manual

MAINTENANCE
7-118

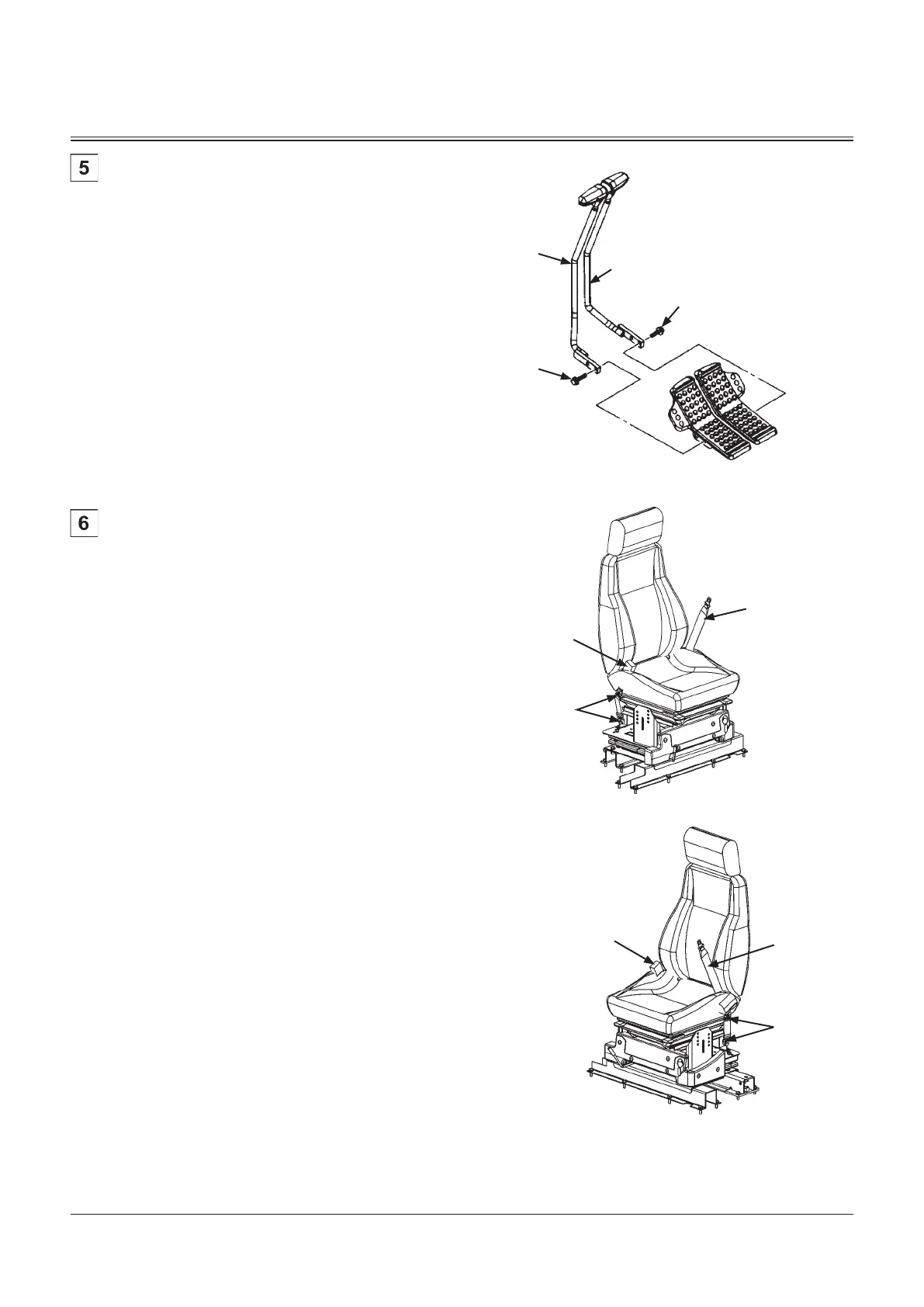

Remove Travel Levers
--- as required
Travel levers (3) and (4) may be removed if desired.
Procedure:
Remove bolts (1) and (2) to remove travel levers (3) and (4)
from brackets.
f
NOTE: Wrench size: 17 mm

Tightening Torque: 50 N·m (5.0 kgf·m)
Check and Replace Seat Belt
Check --- daily
Replace --- every 3 years
Prior to operating the machine, thoroughly examine belt (5),
buckle (6) and attaching hardware (7). If any item is damaged
or materially worn, replace seat belt (5) or component before
operating the machine.
We recommend that seat belt (5) should be replaced every 3
years regardless of its apparent condition.
Consult your authorized dealer for replacement.
2
5
5
7
6
6
7
4
3
1
M178-07-077
M1U1-07-008
M1U1-07-009
