13-13
OPTIONAL ATTACHMENTS AND DEVICES
BLADE

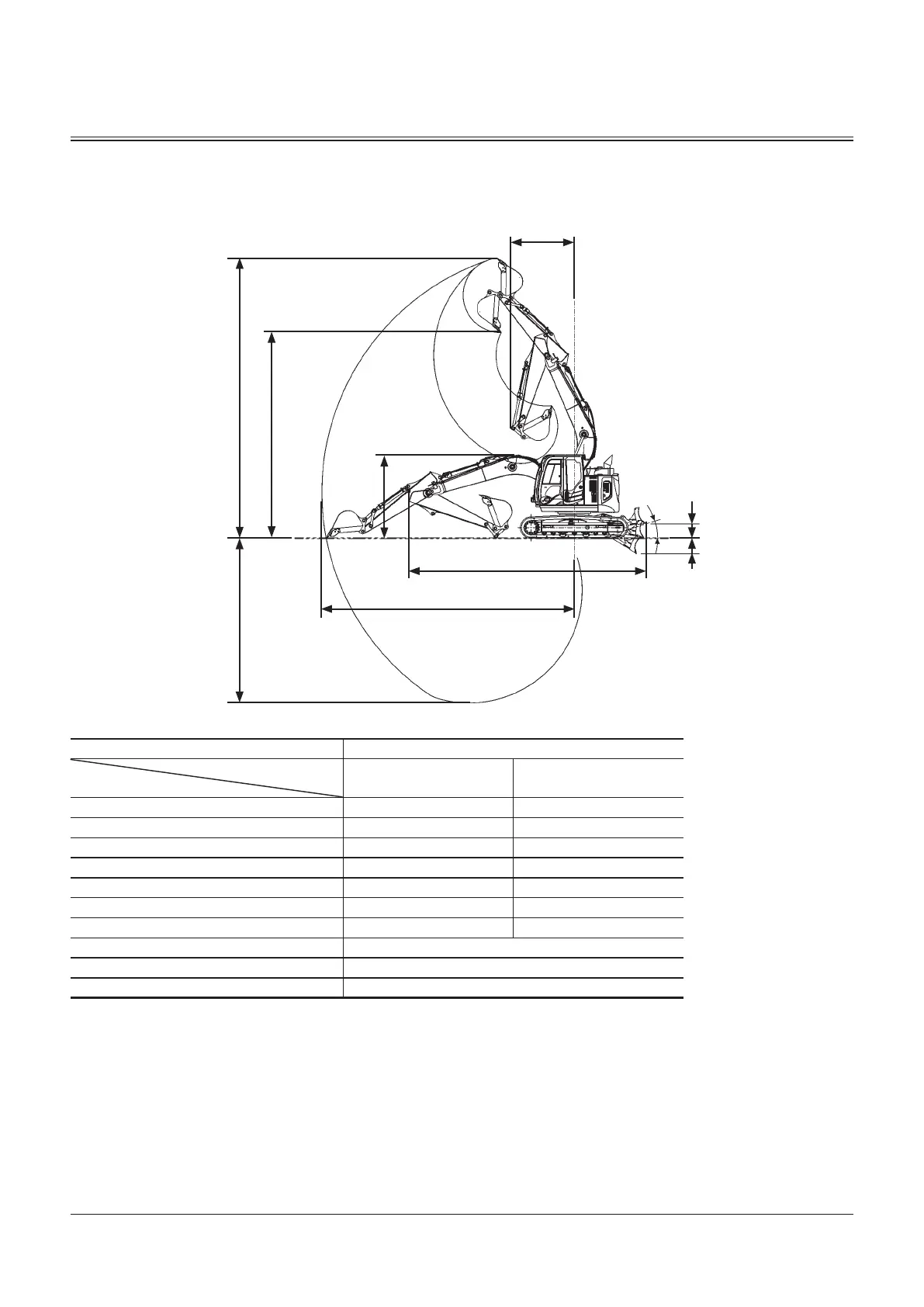

Working Ranges
ZX135US-6 with Blade
Model ZX135US-6 with Blade
Category
Item
2.52 m Arm 3.01 m Arm
A:
Maximum Digging Reach mm 8390 8860
B: Maximum Digging Depth mm 5490 5980
C: Maximum Cutting Height mm 9290 9690
D: Maximum Dumping Height mm 6830 7220
E: Overall Height mm 2870 *2870
F: Overall Length mm 7890 7900
G: Minimum Swing Radius mm 2110 2450
H: Max. Raising Height mm 460
I: Max. Digging Depth mm 540
J: Blade Angle degree 27
f
NOTE: The dimensions do not include height of the shoe lug (except Item E). * The dimensions asterisked are for transport
pin position.
G
C
D
E
F
H
I
A
B
MDAT-13-002
J
