OPERATOR'S STATION
1-126
MDD5-01-002
MDAT-01-269
MDD5-01-003

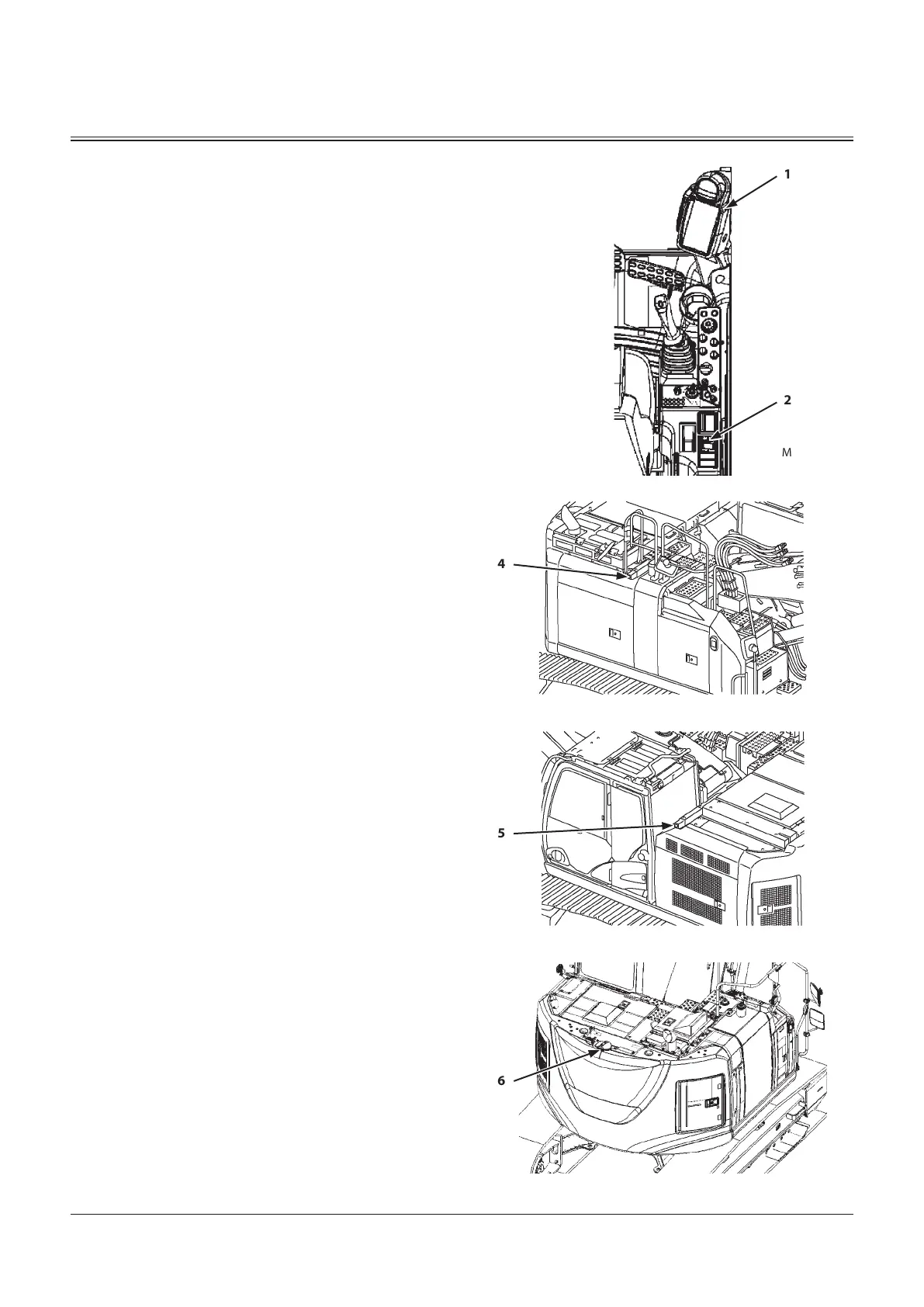

Aerial Angle Monitor
A composite image of the area around the vehicle is displayed
on main monitor (1) and consists of images from camera (4) on
the right side, camera (5) on the left and camera (6) on the rear
of the machine. It helps when checking for obstacles around
the vehicle.
Pressing screen changeover switch (1) allows the camera
image to be displayed as-is.
d
WARNING:
The images are displayed for the purpose of helping
the operator check the area around the vehicle.
People and objects displayed on the monitor may
appear differently from their actual positions or
distances. Some areas, such as near and under the
vehicle, cannot be depicted by the cameras. Before
moving the machine, always check the area around
the machine thoroughly before moving it.
Check visibility of the monitor image before
operating the machine. If the visibility is poor, the
field of vision cannot be ensured, which may result in
serious personal injury or property damage.
The installation position of cameras is adjusted to
produce a good composite image. Do not make any
alterations, such as changing the position of left (4),
right (5) or rear (6) cameras.
If the image is difficult to see, clean the camera(s)
and/or monitor to make the image clearer. Always
ensure good footing when cleaning the cameras.
f
NOTE: The surface of side camera monitor (1) and camera
lenses are made of plastic. When cleaning them, use a clean,
water-dampened cloth and wipe them gently. Never use an
organic solvent.
MDC1-01-573
1
2
4
5
6
To Next Page
