Hitachi ZAXIS 135US-6 class - Coolant Temperature Gauge; Operating Status Icon Display

OPERATOR'S STATION
1-16

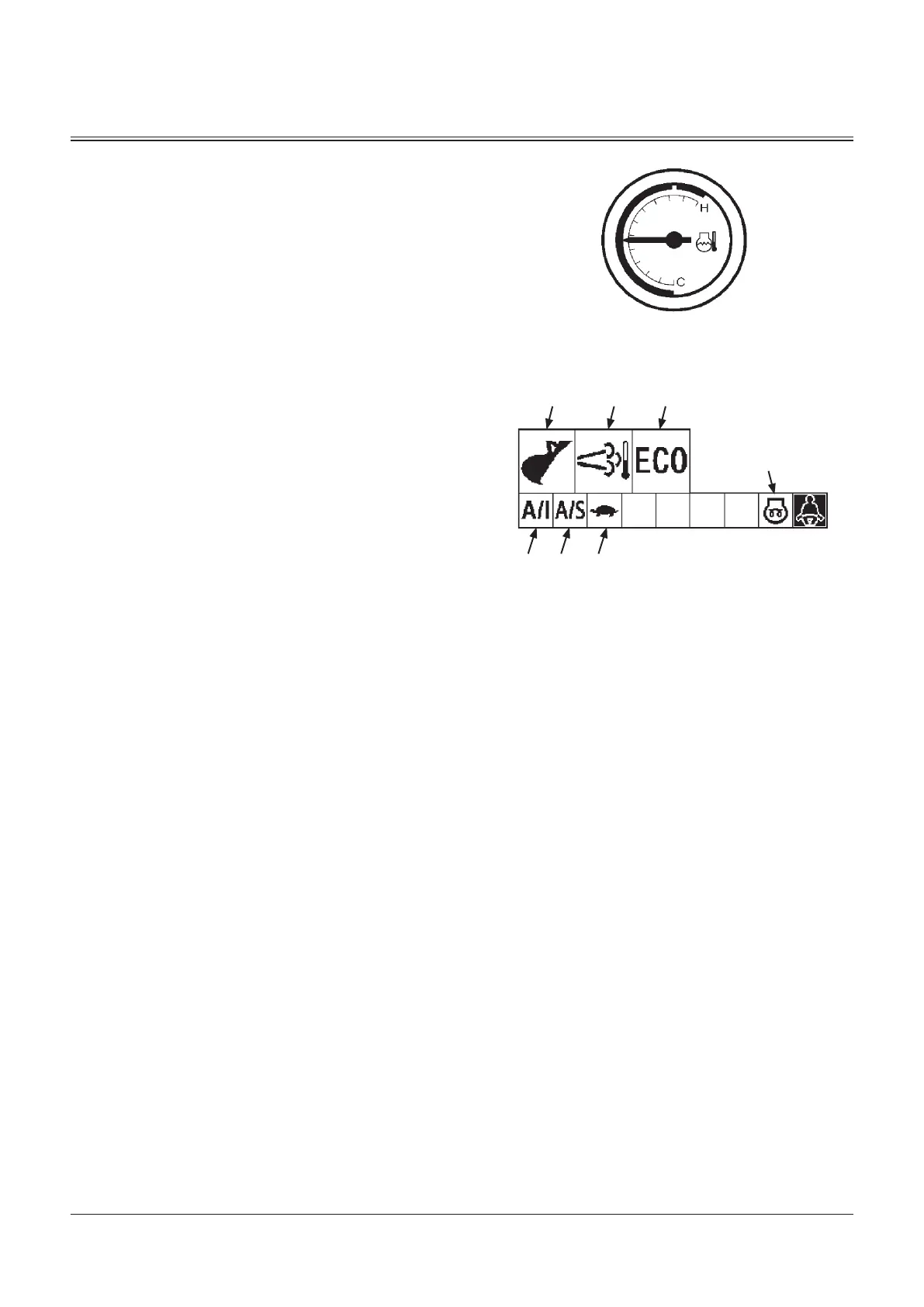

Coolant Temperature Gauge
The engine coolant temperature is indicated with a needle.
Normally the needle is around the center of the scale during
operation.
Operating Status Icon Display
Displays icons indicating the current status of each of
following items: Attachment (1) and aftertreatment device
display (2) selected from the work mode selection screen;
power mode (3), preheat indicator (4), travel mode (5), auto
shut-down (6) ON, auto-idle (7) ON selected from the switch
panel.
