SPECIFICATIONS

12-10

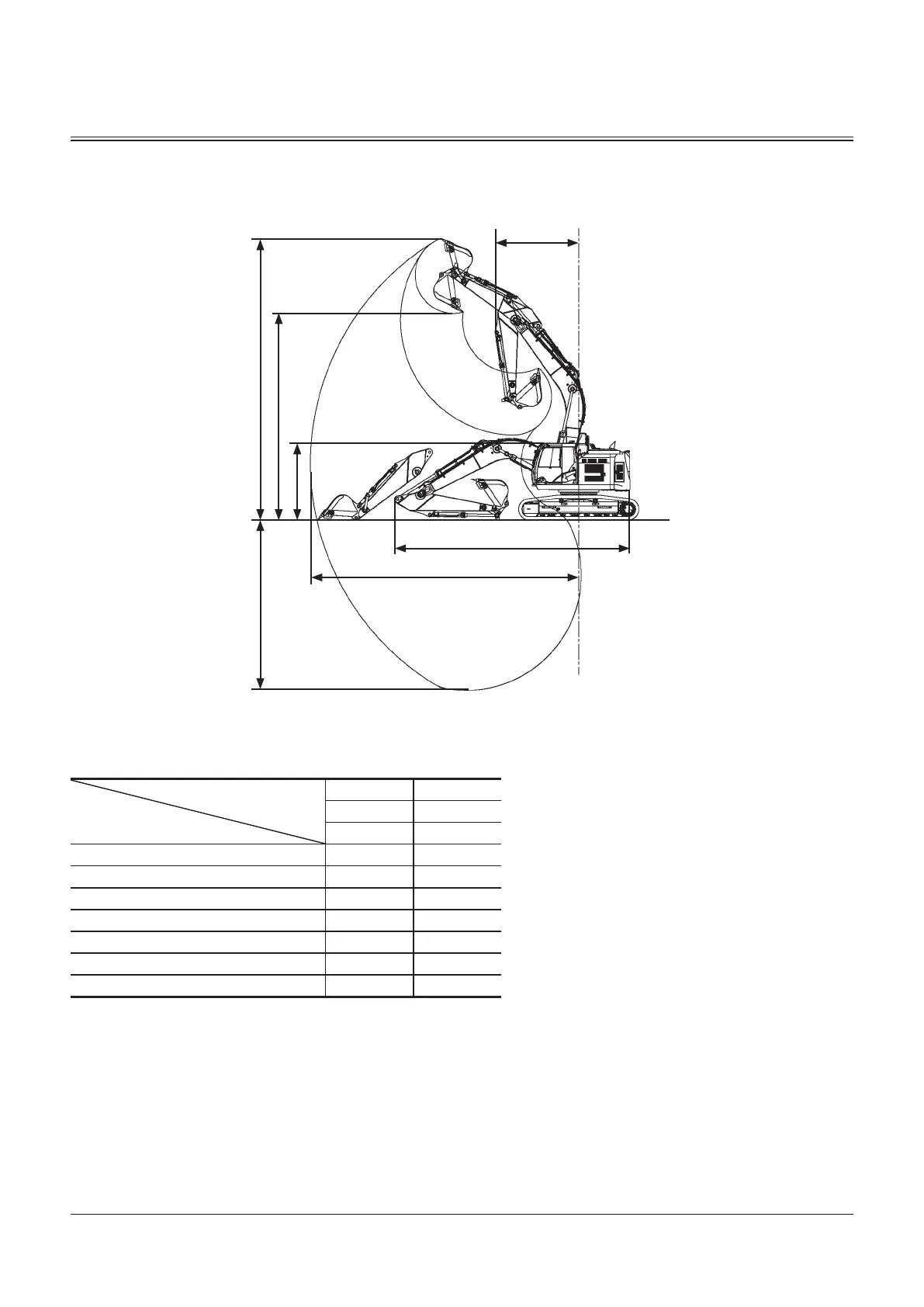

Working Ranges

ZX345USLC-6

Category

Item

3.11 m Arm 3.76 m Arm

Backhoe Backhoe

mm mm

A : Maximum Digging Reach 10900 11460

B : Maximum Digging Depth *6920 *7570

C : Maximum Cutting Height *11410 *11690

D : Maximum Dumping Height *8380 *8670

E : Overall Height 3590 3590

F : Overall Length 9960 10020

G : Minimum Swing Radius 3400 3390

NOTE: * The dimensions do not include the height of the shoe lug.

Backhoe

MDD5-12-002
