Hitachi ZAXIS 135US-6 class User Manual

MAINTENANCE
7-4

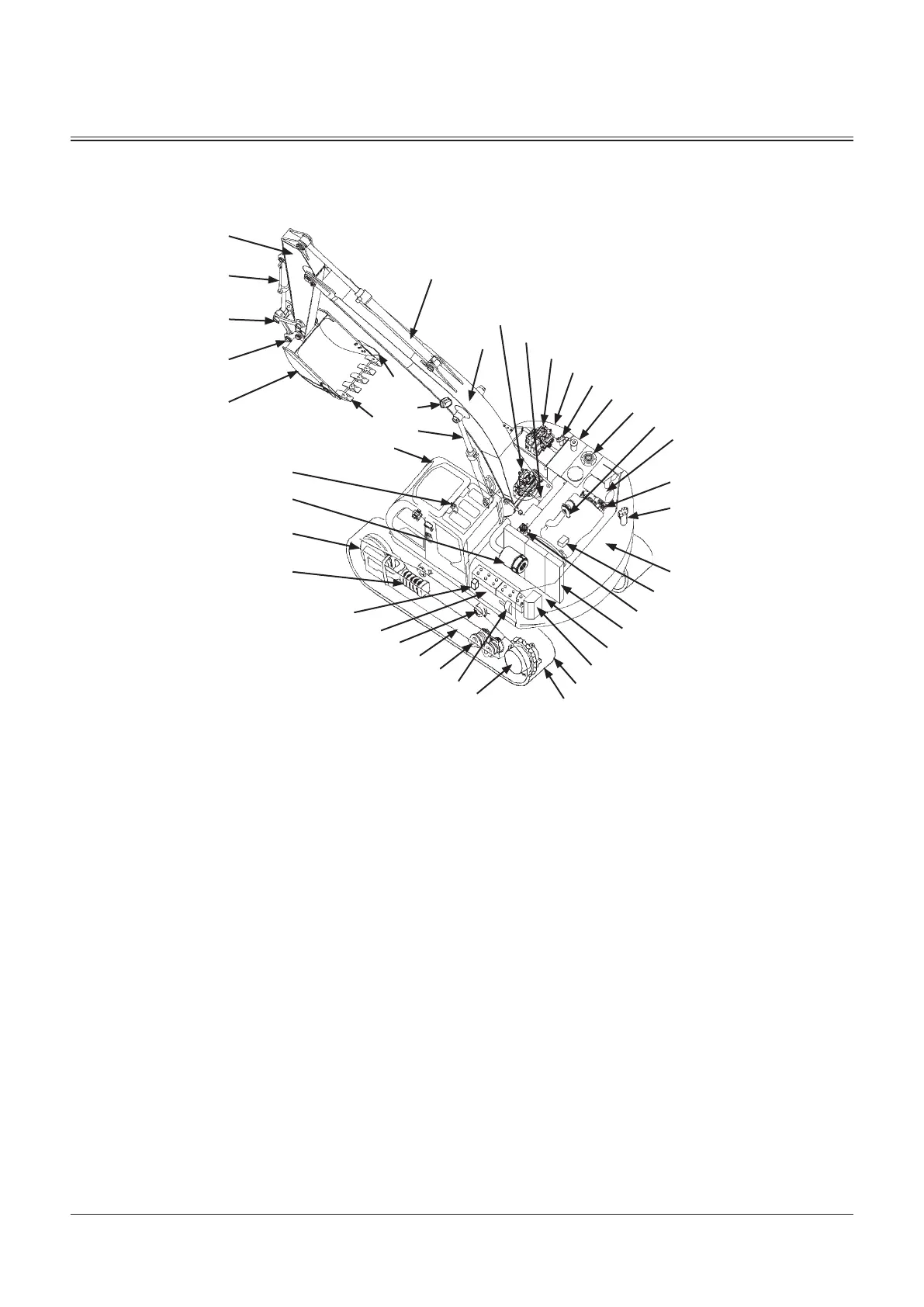

Layout
ZX345USLC-6
1- Tooth
2- Side Cutter
3- Bucket
4- Link A
5- Link B
6- Bucket Cylinder
7- Arm
8- Arm Cylinder
9- Boom
10- Tools
11- Swing Bearing
12- Control Valve
13- Swing Reduction Gear
14- Hydraulic Oil Tank
15- Fuel Tank
16- Engine
17- Aftertreatment Device
18- DEF/AdBlue® Supply Module
19- Pump
20- Pilot Filter
21- Engine Oil Filter
22- Counterweight
23- Expansion Tank
24- Radiator, Oil Cooler, Inter
Cooler
25- DEF/AdBlue® Tank
26- Center Joint
27- Battery
28- Track Link
29- Shoe
30- Travel Device
31- Battery Disconnect Switch
32- Lower Roller
33- Track Frame
34- Upper Roller
35- Washer Tank
36- Track Adjuster
37- Front Idler
38- Air Cleaner
39- Control Lever
40- Cab
41- Boom Cylinder
42- Work Light
MDD5-01-001
36
37
38
39
35
27
34
33
32
31
30
29
28
25
18
24
26
23
22
21
19
17
16
14
15
20
10
12
11
13
8
7
6
5
4
3
1
2
42
41
40
9
