MAINTENANCE
7-13
ZX345USLC-6
d
WARNING:
 Do not keep the hood and access covers open when
the machine is parked on a slope, or while the wind
is blowing hard. The hood or access covers may close
accidentally, possibly resulting in personal injury.

When opening or closing the hood and access covers,
take extra care not to catch fingers between the base
machine and the hood or access covers.


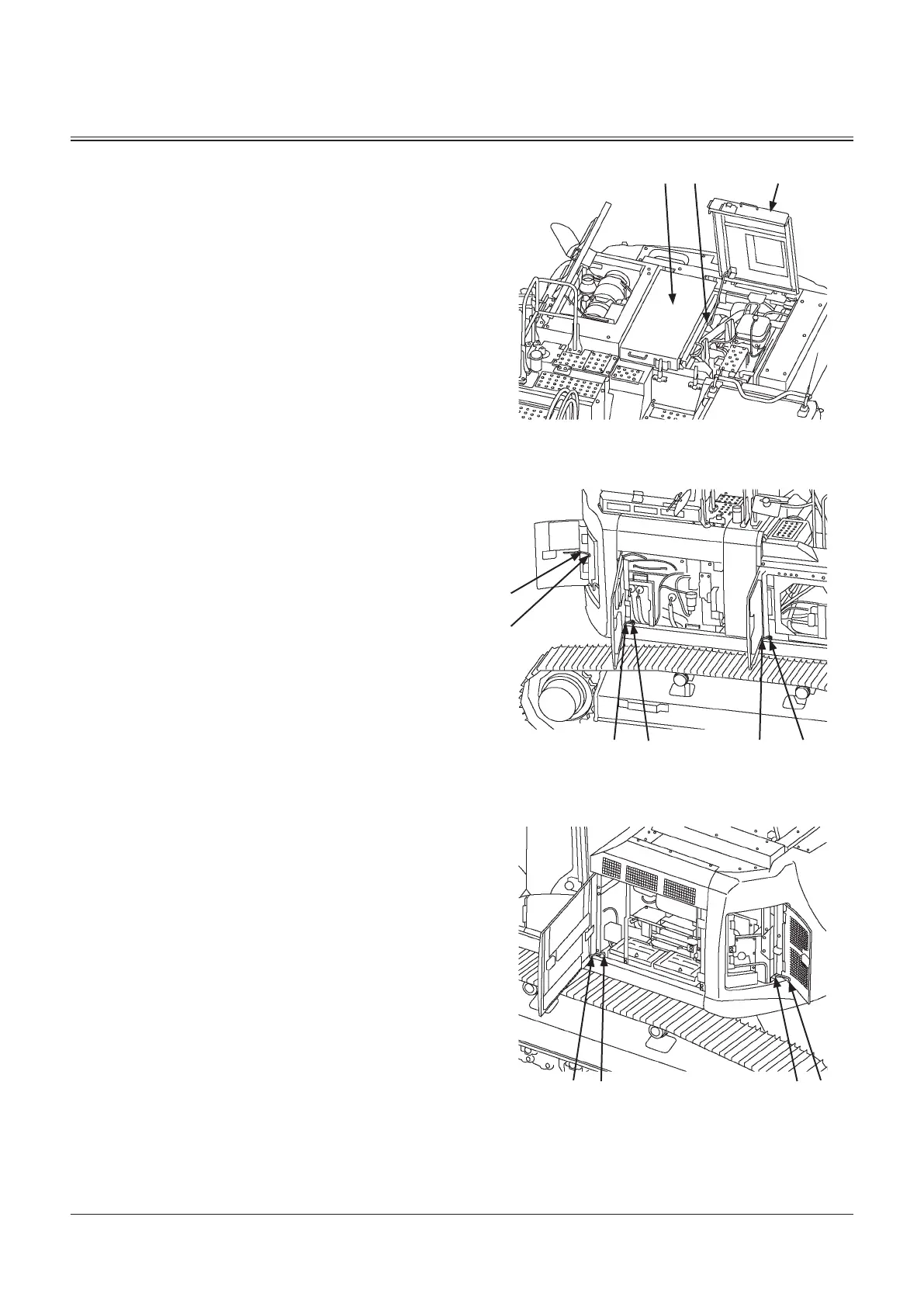

Holding the handle on the access cover, raise the cover until
the cover is secured with catch (1).
 When opening the engine cover, open the left engine
cover (5). Then, pull to open the right engine cover (4) as
illustrated.
 After opening the right and/or left access cover, be sure to
insert rod (2) into cover lock hole (3) to hold the cover.
MDD5-07-001
MDD5-07-002
MDD5-07-003
Right Cover
2
2
2 2
2
3
3
3 3
3
Left Cover
Engine Cover
4 51
