3. At this time, do not remove the inner element.
IMPORTANT: Do not hit or strike outer element (1)
against another object to clean the element.
4. To clean outer element (1), blow compressed air (0.69
MPa (7 kgf/cm
2
) or less) from the inside towards the
outside, following the direction of the pleats. Next, blow
from the outside inward, and then blow from the inside
outward once again. When blowing compressed air, be
sure to keep the air nozzle 50 mm or more away from the
element.
5. After cleaning is complete, be sure to check outer
element (1) for any damage such as holes or wear of filter
paper. If any damage is found, replace the element with
a new one.
6. Press outer element (1) into the air cleaner body
straightly by hand. Ensure that outer element (1) is
properly installed by pushing its bottom edge.
7. Install cover and tighten clamps (2).
8. In case the air filter restriction indicator lights soon after
cleaning outer element (1) even if it has been cleaned
less than 6 times, replace both outer and inner elements
with new ones.
IMPORTANT: Do not install outer element (1) and/or the
cover forcibly when installing the clamps. Doing so
may result in deformation of clamps (2), element, and/
or cover.
1
2

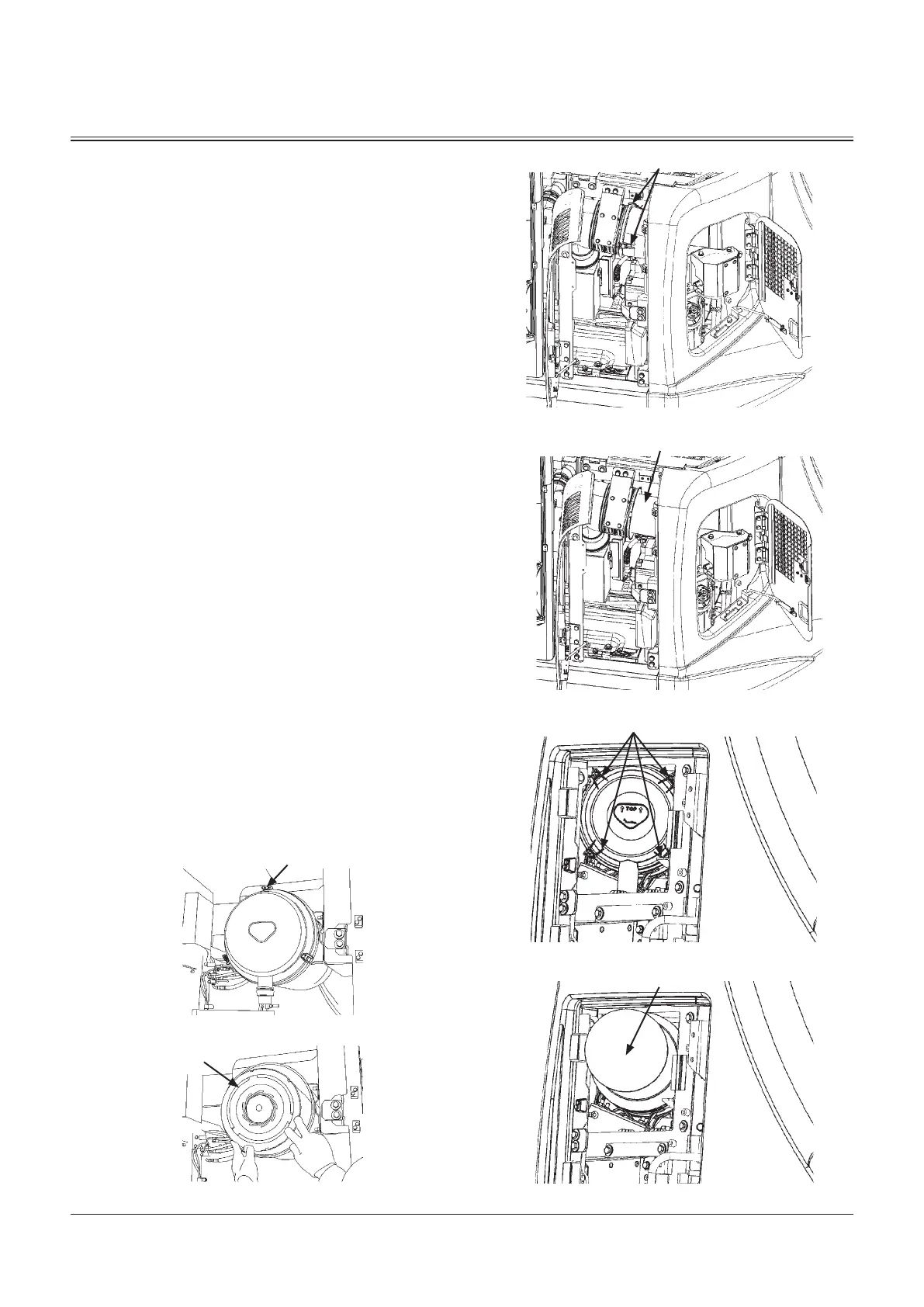

MDAT-07-019
MDAT-07-020
MDAT-07-021
MDAT-07-022
ZX135US-6
ZX135US-6
ZX225USLC-6
ZX225USLC-6
2
1
ZX345USLC-6
ZX345USLC-6
1
2
M1U1-07-027
M1U1-07-028
