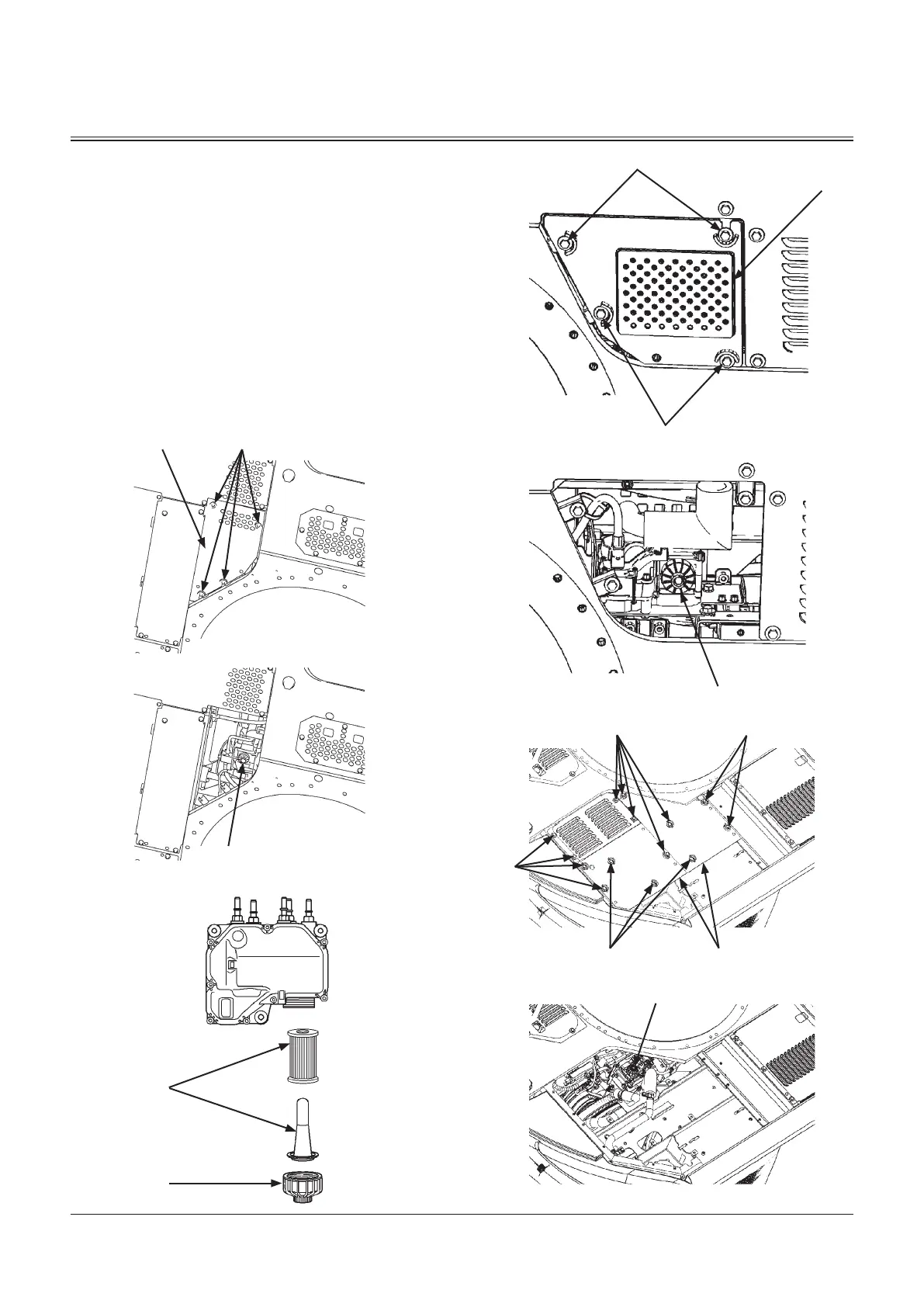

NOTE: The DEF/AdBlue® pump is located bottom of the
machine, near the engine.
2. Remove bolts (1) and cover (2).
3. Remove cap (3) from the DEF/AdBlue® pump by using a
27 mm bihexagon wrench.
4. Pull out filter (4) inside the pump. As it is tightly
mounted, it can not be pulled by hands. Use tools such
as a pliers. Replace filter (4) assembly when replacing
filter (4) of DEF/AdBlue® supply module.
5. Install new filter (4), and tighten cap (3) with 20±5 N·m
(2.0±0.5 kgf·m) torque.
6. Fix cover (2) with bolts (1).
