SPECIFICATIONS
12-5
MDAT-12-007
Specifications
ZX225USLC-6
Model ZX225USLC-6
Type of Front-End Attachment 2.91 m Arm
Bucket Capacity (Heaped) PCSA 0.80 m
3
, CECE 0.70 m
3
Counterweight Weight 7280 kg
Operating Weight 17200 kg
Base Machine Weight 13700 kg
Engine Type Isuzu AR-4HK1XASA-12
Engine Power ISO 14396: 122 kW/2000 min
-1
(166 PS/2000 rpm)
A: Overall Width (Excluding back mirrors) 2990 mm
B: Cab Height 2950 mm
B': Cab Top Handrail Height 2990 mm
C: Rear End Swing Radius 1680 mm
D: Minimum Ground Clearance *450 mm
E: Counterweight Clearance *980 mm
F: Engine Cover Height *2660 mm
F': Body Top Handrail Height 3020 mm
G: Overall Width of Upperstructure 2910 mm
H: Undercarriage Length 4460 mm
I: Undercarriage Width 2990 mm
J: Sprocket Center to Idle Center 3660 mm
K: Track Shoe Width 600 mm (Grouser shoe)
Ground Pressure 52 kPa (0.53 kgf/cm
2
)
Swing Speed 11.8 min
–1
(rpm)
Travel Speed (fast/slow) 5.5/3.5 km/h
Gradeability 35 ° (tanθ = 0.70)
f
NOTE: * The dimensions do not include the height of the shoe lug.

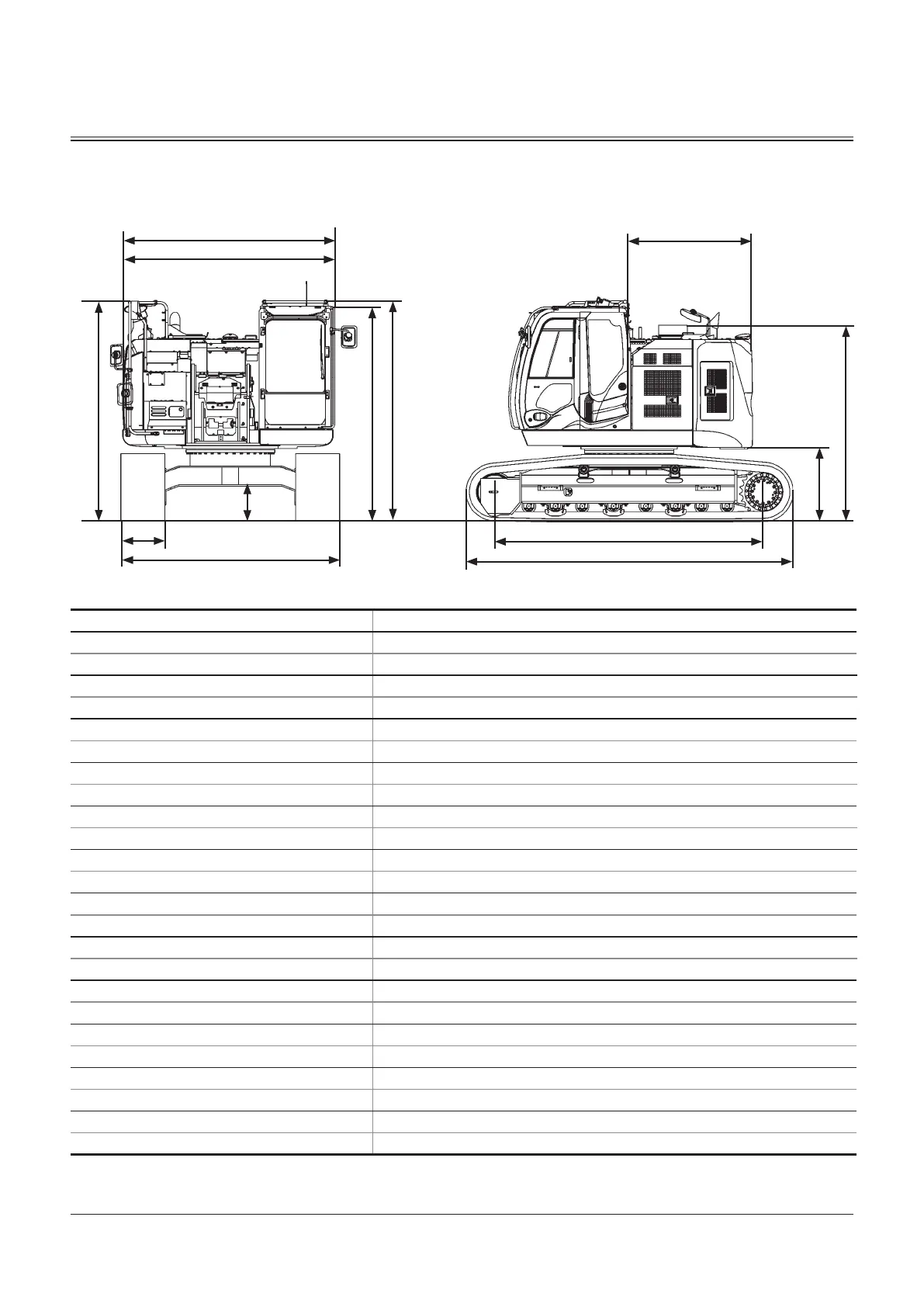

A
