OPTIONAL ATTACHMENTS AND DEVICES
HYDRAULIC BREAKER, HYDRAULIC CRUSHER AND QUICK COUPLER

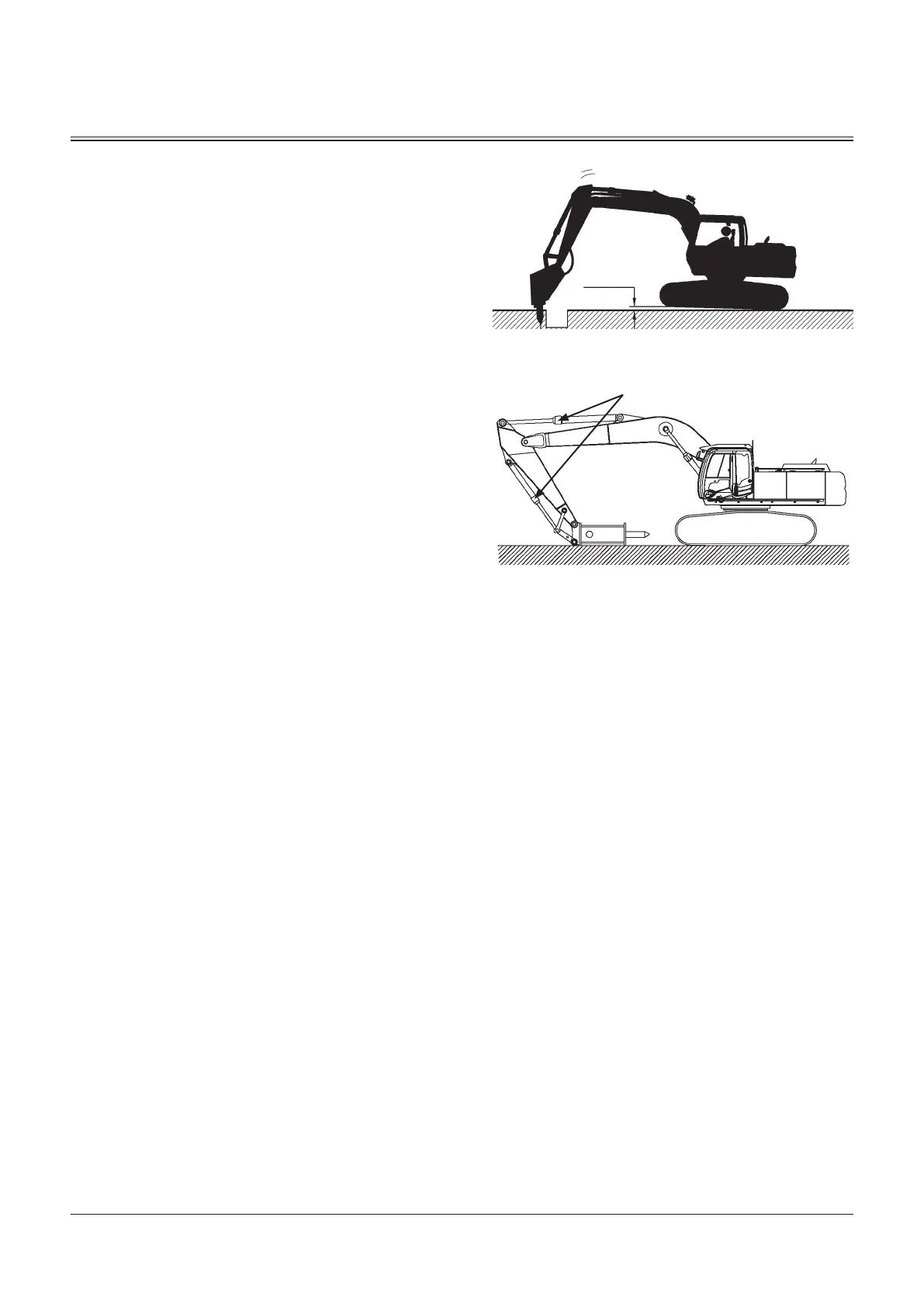

Raising the Front Part of the Undercarriage by Pressing
Down the Breaker May Cause Damage to the Front
Attachment
Never raise the front edge of the undercarriage higher than
150 mm by pressing the breaker down.
Machine storing position with breaker
After operating the machine, be sure to place the breaker
horizontally on the ground. Do not leave cylinders at their
stroke end position. Failure to do so may damage the
cylinder.
Raising
100 to 150 mm
Pressing
Down
M147-05-016
Do not leave cylinders at their stroke end
position.
Place horizontally
MJAD-05-001
