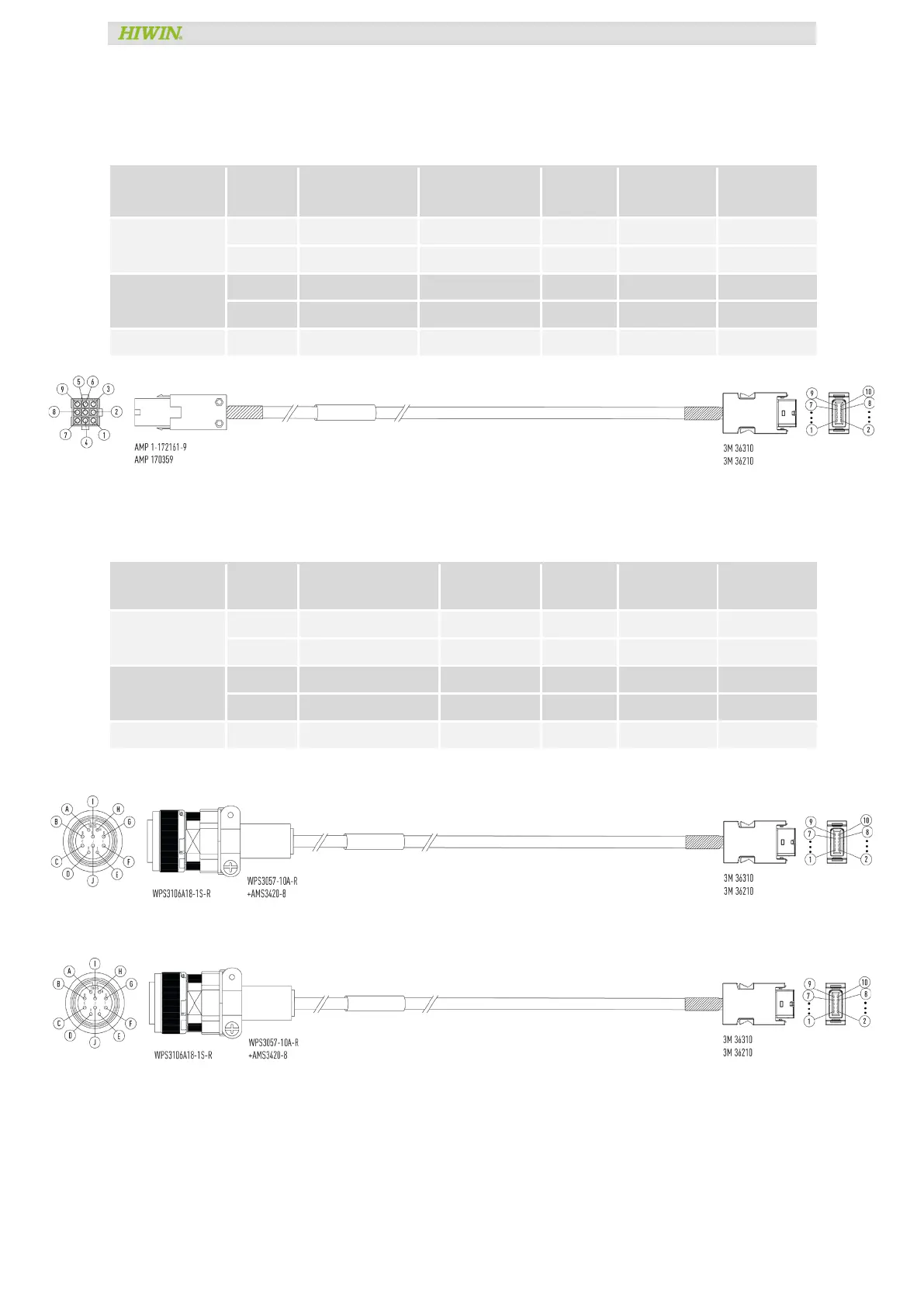

8.2.2.2 23 bit Single-Turn Absolute Encoder Cable Connector

Small Capacity Series / 50 W – 750 W
– HVE23IAB
Function Signal AMP 1-172161-9
AMP 170359-1
Color 3M 36310
3M 36210
Conductors Insulators
Power 5 V 1 Blue (Red) 1 24 AWG 1,3 mm
0 V 2 Blue (Black) 2 24 AWG 1,3 mm
Serial Data Signal SD+ 7 Yellow (Red) 3 24 AWG 1,3 mm
SD- 8 Yellow (Black) 4 24 AWG 1,3 mm
Shielding Shielding 9 Black Housing Shielding -

Middle Capacity Series / 1 kW – 2 kW
– HVE23IBB / HVE23ICB
Function Signal WPS 3106A18-1S-R
WPS 3108A18-1S-R
Color 3M 36310
3M 36210
Conductors Insulators
Power 5 V A Blue (Red) 1 24 AWG 1,3 mm
0 V B Blue (Black) 2 24 AWG 1,3 mm
Serial Data Signal SD+ G Yellow (Red) 3 24 AWG 1,3 mm
SD- H Yellow (Black) 4 24 AWG 1,3 mm
Shielding Shielding I Black Houing Shielding -
– HVE23IBB
– HVE23ICB
