User Manual Installation, Assembly and Commissioning

EM1 Series AC Servo Motors EM1-01-0-EN-2110-MA Page 52 of 72

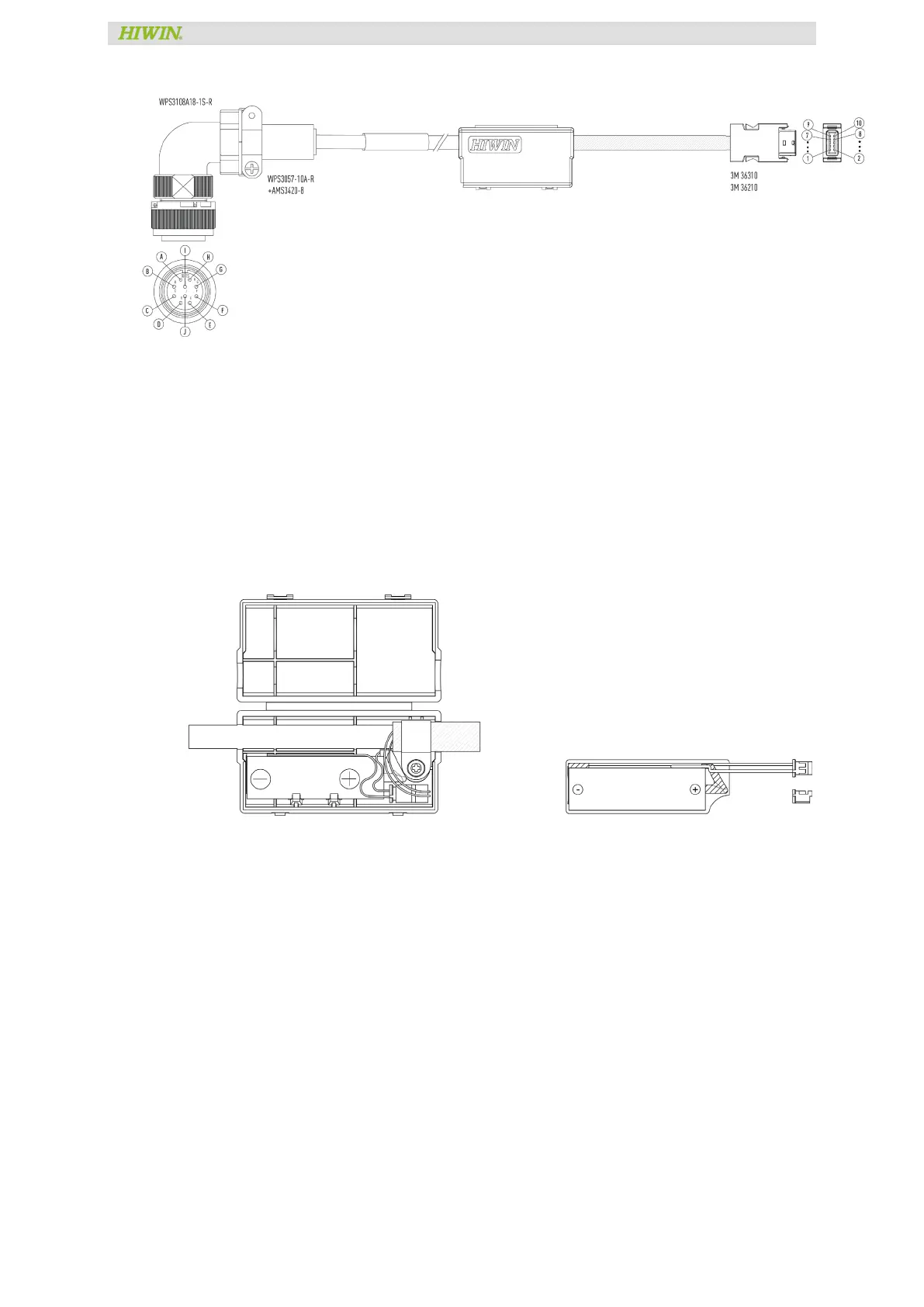

– HVPE23ACB



Multi-Turn Absolute Encoder Cable Battery Replacement Procedures:

1. Remove screw from upper cover.

2. Remove upper cover from battery case.

3. Remove battery from battery case.

4. Check battery type is correct.

5. Replace the old battery to new one.

6. Recover upper case and tighten the screw back.

Battery case: Position of battery

Battery type: Toshiba ER6V LY
