Care must be taken during this operation to ensure:
a) All required safety measures are taken to ensure correct lifting and handling to avoid
risk of injury through dropping, falling and tilting.
b) No damage occurs to the machine, which could impair the normal operation.
10.2 LOCATION.
The mixer is not suitable for outdoor installation and must not be installed
where a water jet could be used for cleaning. The mixer must only be
operated by trained staff and must be installed in an area where the use and
maintenance is restricted to trained personnel.
The mixer must be installed on a horizontal flat surface level to a minimum of 1mm in 1
metre side to side and front to back. Select a suitable flat level surface that can support
the weight of the mixer and bowl contents when full (refer to Table 1 for weights and
dimensions). In areas where stability may be an issue, the machine should be secured in
position. Refer to the recommended spare parts, Section 13, page 37 for a deck
mounting kit part number.
Once in position, the mixer must be levelled;
Remove the two top cover screws and the top cover.

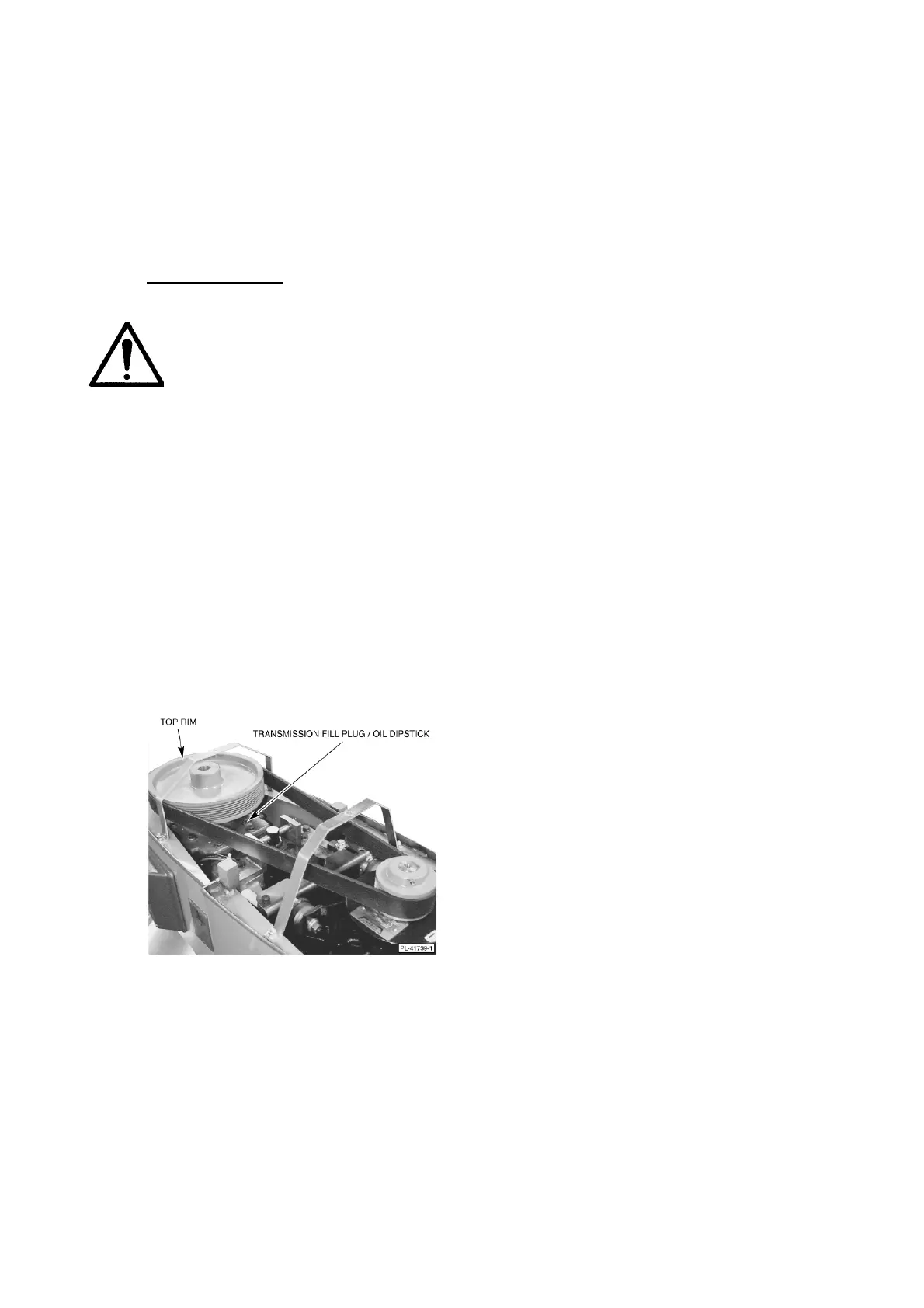

Place a level on the top rim of the large pulley (refer to Fig. 9). Slide shims
under the base contact surface of the mixer as required levelling it front-to-
back and side-to-side.
Do not replace the top cover until installation is completed.
Figure 9.
Ensure there is sufficient space around the mixer for the user to operate the controls and
to install and remove bowls. The area above and to the right side of the mixer should
allow the top and side covers to be removed for routine maintenance and servicing.
Servicing may be more difficult because of reduced clearances and you should always
check that equipment specifications permit the close proximity of other equipment. Refer
to Fig. 8, page 29 for the overall dimensions of the mixer and the clearance required to
accommodate the hinged bowl.
The mixer may be secured to floor by the use of deck plates. Each deck plate requires
two (2) ½" bolts. Bolts are to be supplied by customer. Refer to the recommended spare
parts Section 13, page 37 for a deck mounting kit part number.
