Holtek HT66F30 User Manual

Rev. 2.50 222 June 22, 2017 Rev. 2.50 223 June 22, 2017
HT66F20/HT66F30/HT66F40/HT66F50/HT66F60
HT66FU30/HT66FU40/HT66FU50/HT66FU60
A/D Flash MCU with EEPROM
HT66F20/HT66F30/HT66F40/HT66F50/HT66F60
HT66FU30/HT66FU40/HT66FU50/HT66FU60
A/D Flash MCU with EEPROM

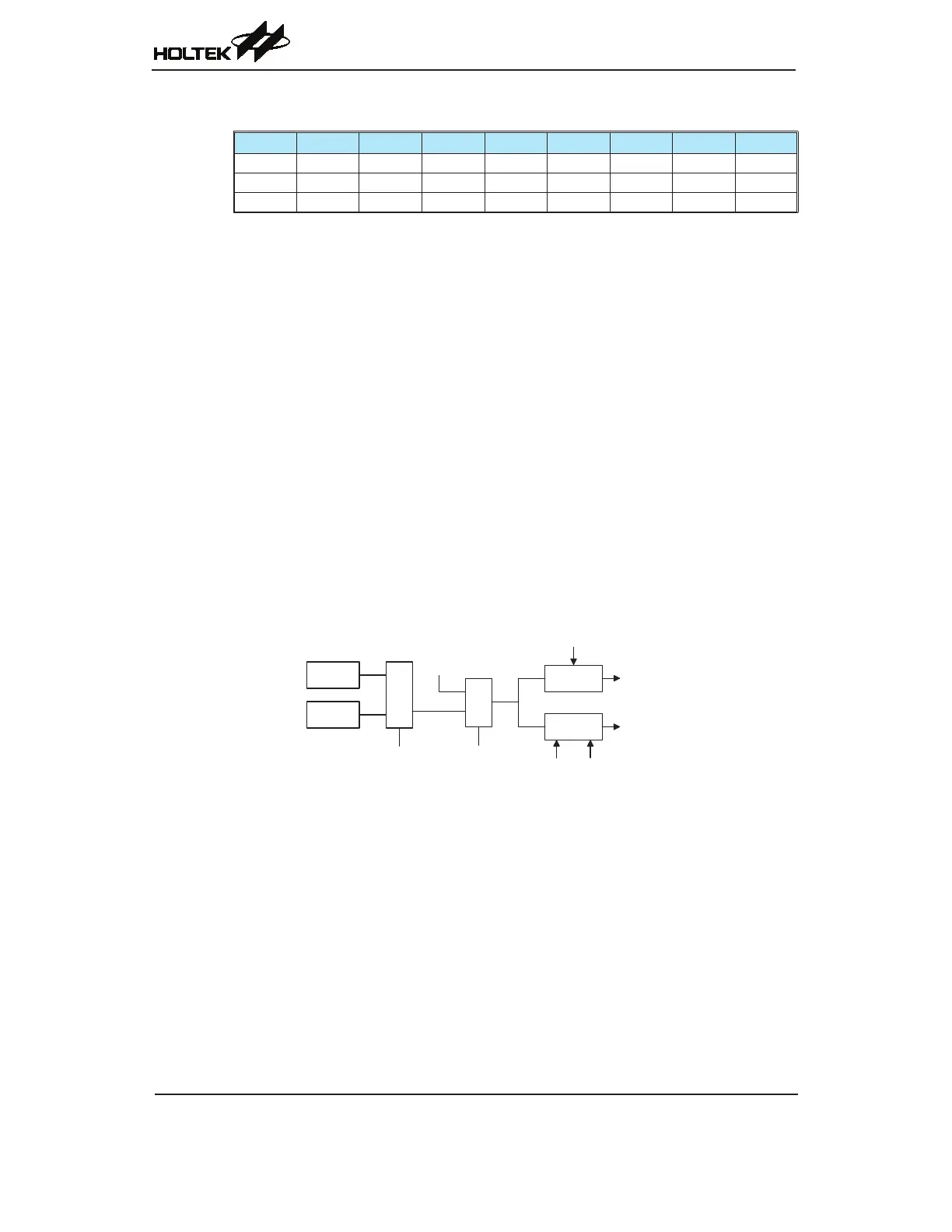

TBC Register
Bit 7 6 5 4 3 2 1 0
Name TBON TBCK
TB11 TB10 LXTLP TB02 TB01 TB00
R/W R/W R/W R/W R/W R/W R/W R/W R/W
POR 0 0
1 1 0 1 1 1
Bit7 TBON:TB0andTB1Control
0:Disable
1:Enable
Bit6 TBCK:Selectf
TB
Clock
0:f
TBC
1:f
SYS
/4
Bit5~4 TB11~TB10:SelectTimeBase1Time-outPeriod
00:4096/f
TB
01:8192/f
TB
10:16384/f
TB
11:32768/f
TB
Bit3 LXTLP:LXTLowPowerControl
0:Disable
1:Enable
Bit2~0 TB02~TB00:SelectTimeBase0Time-outPeriod
000:256/f
TB
001:512/f
TB
010:1024/f
TB
011:2048/f
TB
100:4096/f
TB
101:8192/f
TB
110:16384/f
TB
111:32768/f
TB












  


 
 

   
   
  
 
 





Time Base Interrupt
