5.1. Hardware Description

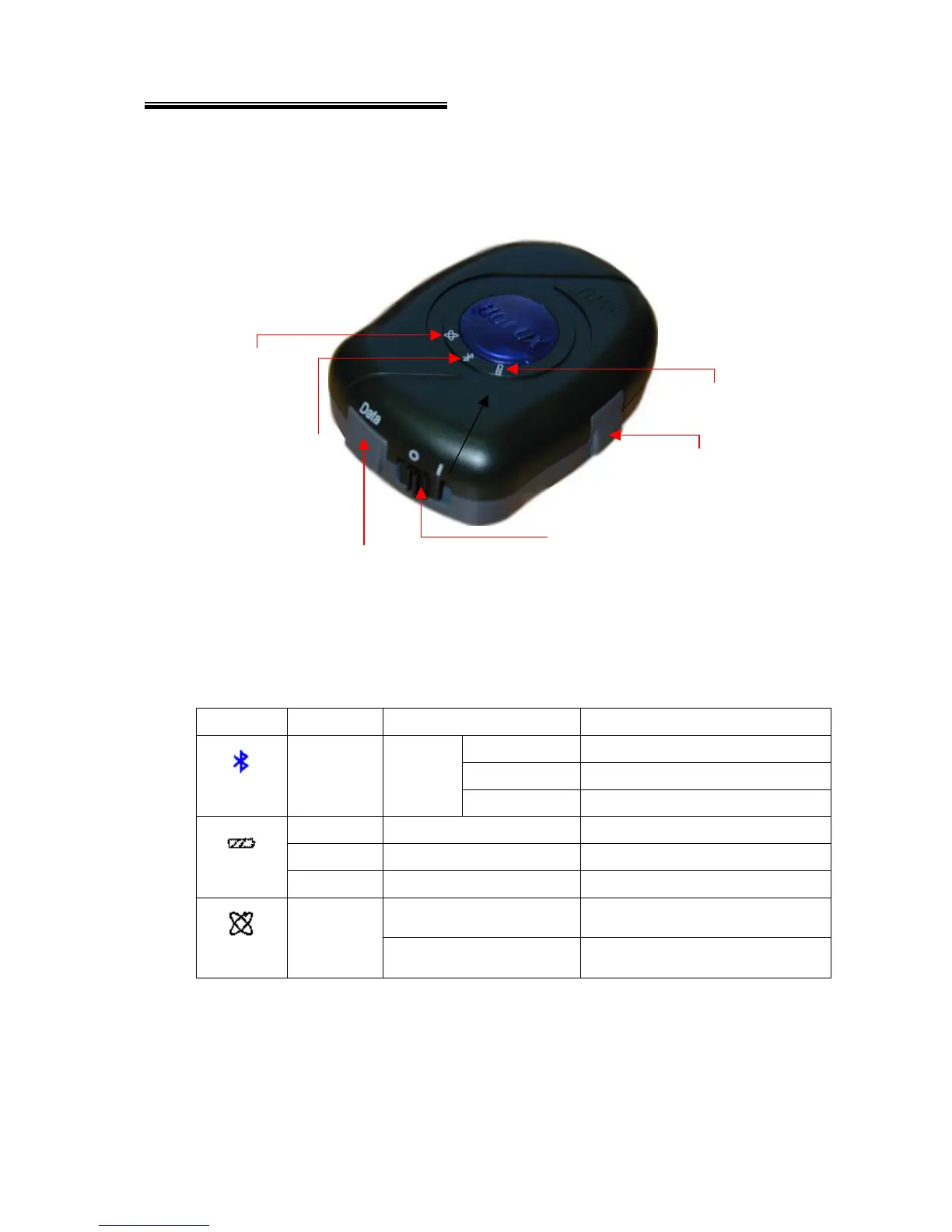

1). GR-230 Body description see Fig. 2:
(Fig.2)
2). LED status :
3). Power Switch :
1 : Power on
0 : Power off
SYMBOL COLOR STATUS DESCRIPTION
3 times / 1 sec Search Bluetooth Device
1 time / 3 sec Standby Mode
Bluetooth
Blue Blinking
1 time / 1 sec Transferring Data
Red Light on Power too low
Green Light on In charging
Battery
N/A Light off Battery full or Not in charging
Light on Acquiring Satellites
GPS
Orange
Blinking Position Fixed
External Antenna Port
LED of Battery
(Red / Green)
Power Switch
Power Jack & Data Port
LED of Bluetooth
(Blue)
LED of GPS
(Orange)
