HOLUX GR-230 Bluetooth GPS Receiver Manual
14

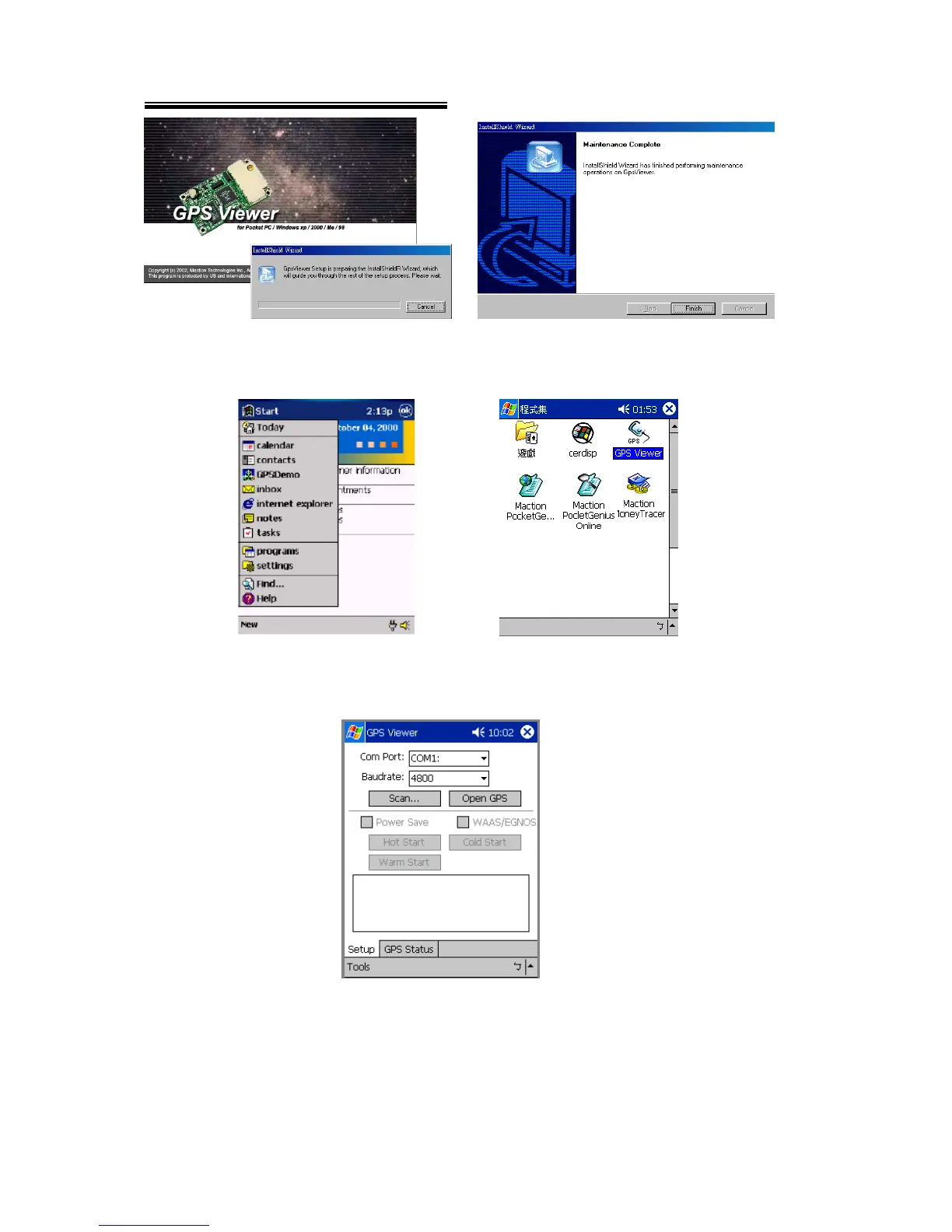

(Fig. 8)
4) Push “Start”→ “Programs”→ “GPSViewer” on PDA, as Fig. 9.
(Fig. 9)
5) The following window is show after executing GPSViewer, as Fig. 10.
(Fig. 10)
6) Setup Baud rate: 38400, then push “Scan” bottom to scan your COM Port
(Example theIPAQ 3970 is the output port COM8). Select your COM Port (COM1 ~
COM10), then push “Open GPN” bottom, as Fig. 11, Fig. 12, and Fig. 13.
