Output terminal and definition
Three kinds of output type:
• USB connector
• PS2 Female connector
• RJ-45 connector

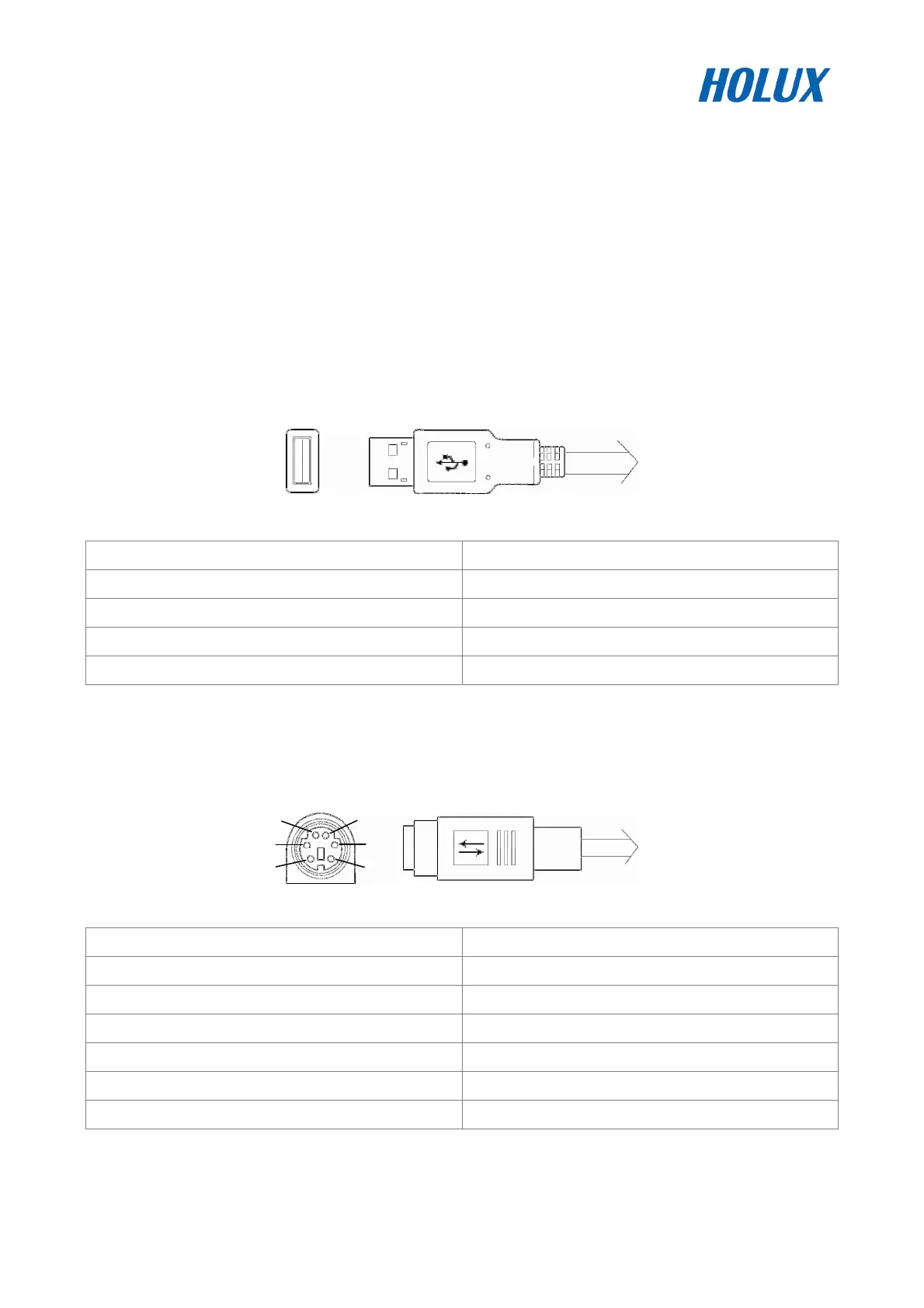

USB connector
Pin Signal Name
1 +5V DC
2 D-
3 D+
4 Ground
PS2 Female connector
Pin Signal Name
1 TX
2 +5V DC
3 N.C.
4 Ground
5
DGPS IN or (N.C.)
6 RX
N. C.: No connection
1
2 3
4
5 6
1
4
