Holux M-215+ - Optional Accessories; CA-RS232 Cable and PS-2 Connector

10
Optional accessory
M-215+ includes an antenna in a unique style waterproof gadget. Simply connect USB connector or
PS-2 female connector to one of the optional accessories linking to your notebook PC, PDA or other
devices.
CA-RS232: DB 9 pins Female and PS-2 male connector:
Cable Length to M-215+: 1 meter
RS-232 to PS-2: 45 cm

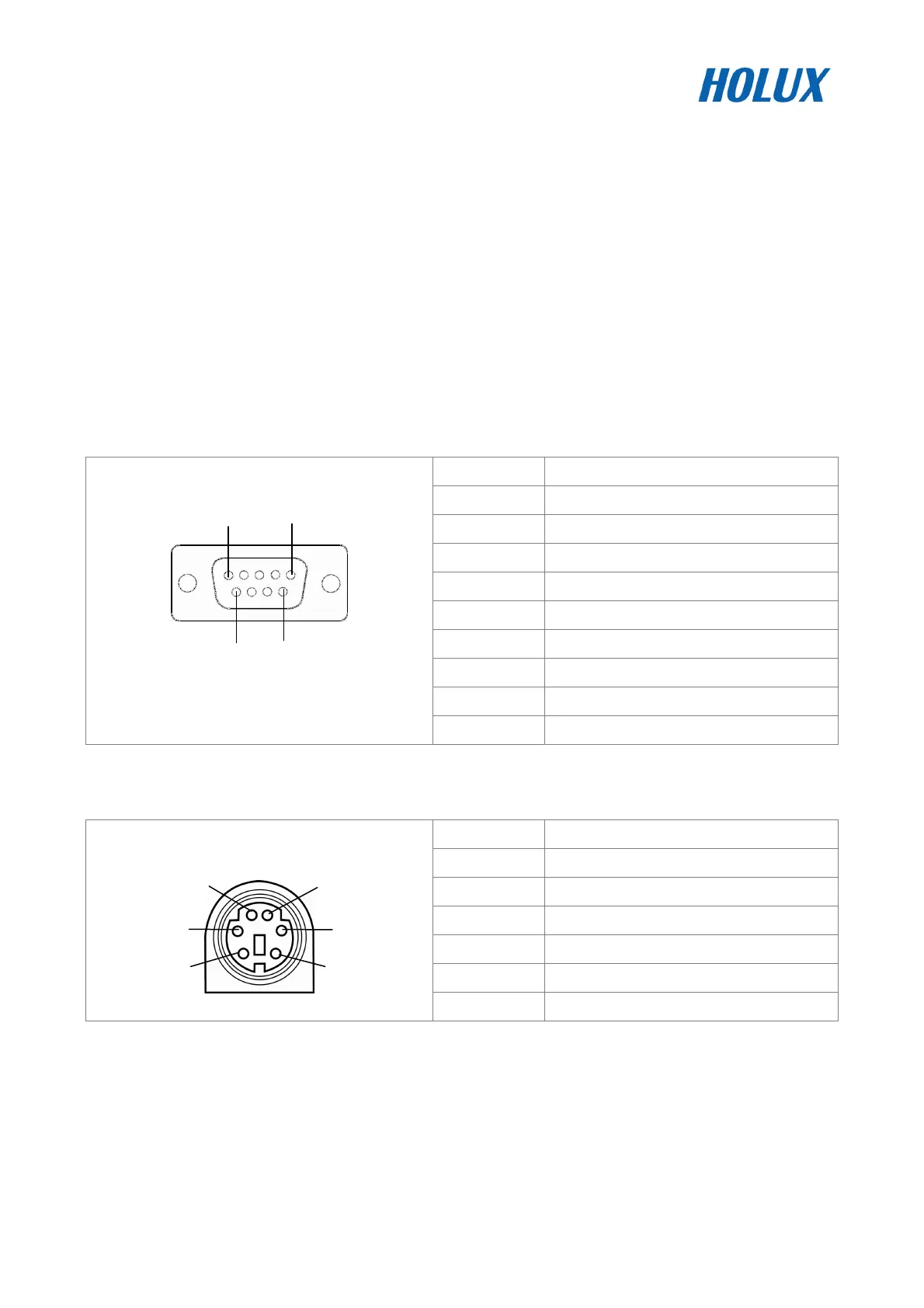

DB 9 pins Female connector function definition:
Pin Signal Name
1 N.C
2 TX
3 RX
4 N.C
5 Ground
6 N.C
7 N.C
8 N.C
9 DGPS in
PS2 composite male connector function definition:
Pin Signal Name
1 +5V DC
2 N.C
3 N.C
4 Ground
5 N.C
6 N.C
1 5
6
9
1
2
3
4
5
6
