Holux M-215+ - High Power and USB Connectors; Optional Cigarette Adapter

11

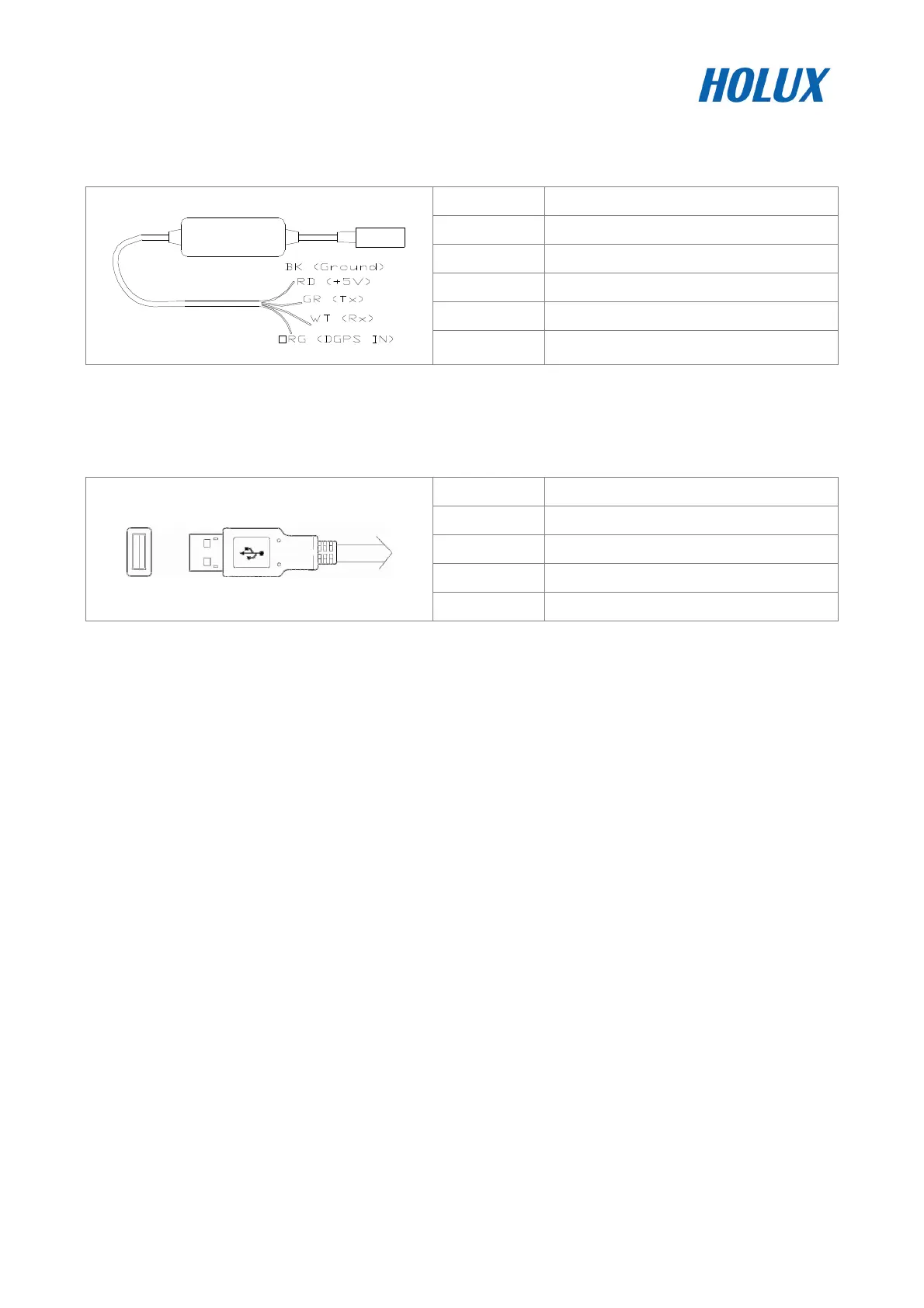

CA-6V30V: High power connector
CA-6V30V High power connector
Color Signal Name
Black Ground
Red +6~30V DC
Green TX
White RX
Orange DGPS IN
CA-USB: USB connector
The USB A Type is equipped with M-215+. The function definition is as follows:
Pin Signal Name
1 +5V DC
2 D +
3 D -
4 Ground
Optional Cigarette Adapter
The optional cigarette adapter is with 2-meter cable for using in a car or boat.
Input voltage: DC12V - 26V
