Holzmann BS 128HDR - Changing the Saw Blade; Setting Tape; Camber

MAINTENANCE AND CARE
HOLZMANN Maschinen Austria www.holzmann-maschinen.at Seite 38
BS 128HDR

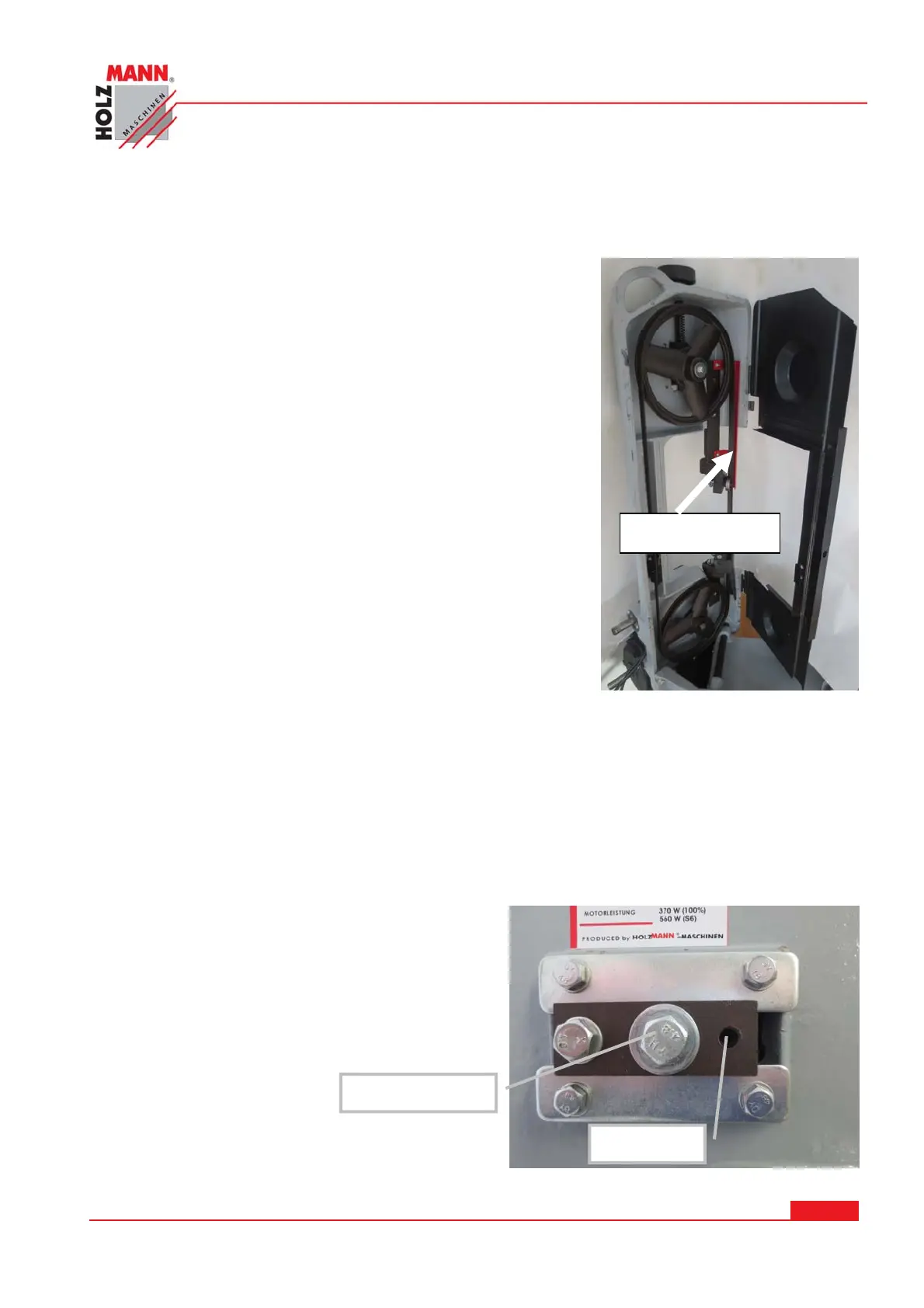

14.1 Changing the saw blade
 Move the metal belt in the vertical position and open the saw band cover.
 Loosen the saw band with the adjustment knob (10).
 Saw band guard above remove.
 Now pull off the old saw band of the impellers.
DANGER! Risk of injury! Wear work gloves.
 The new bandsaw first insert in the blade guides and then
place it on the wheels.
WARNING: Respect the right direction of the teeth. (see
image left front of the saw arm)
Then put the saw band on the wheels.
 The saw band with the control knob (2) tension (2 - 3mm
test).
 After a short test run check the tension and the tape /
chamber and tighten, it neccesary as in point 14.2
 Saw blade guard screw on.
 Close the saw band cover.
14.2 Setting tape / camber
The impeller is factory aligned to the drive wheel. Should, however (especially after exchange) of
the saw blade is not straight or run from the impeller, an adjustment may be necessary.
The tape / camber can be adjusted.
 The clamping screw slightly loose.
 With the grub screw the tape can be adjusted.
 Tighten the clamping screw.
grub screw
clamping screw
Saw band guard
