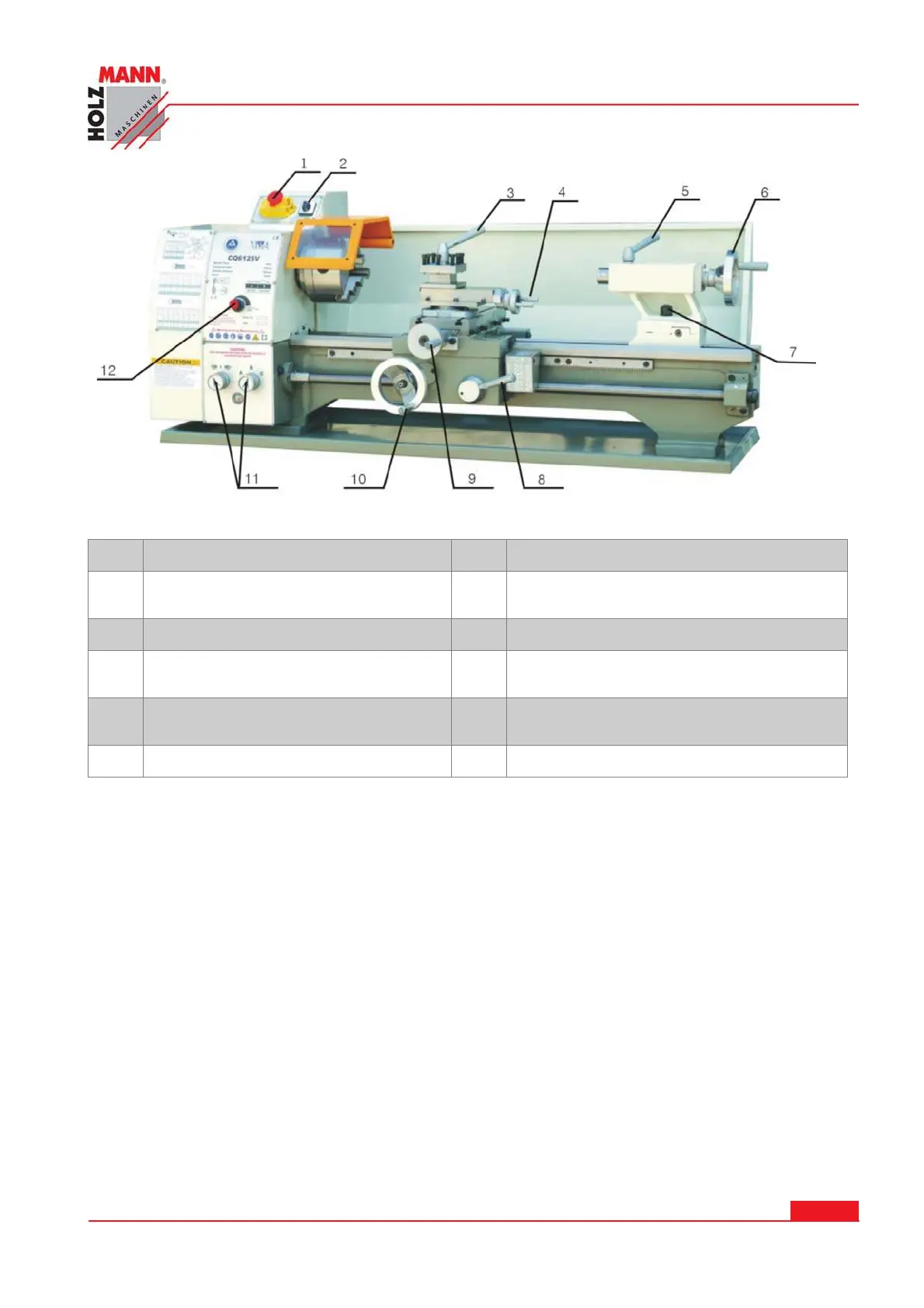

Metalldrehmaschine / metal turning lathe ED 750 FDQ
1
Emergency button ON/OFF switch 7 Screw for tailstock fixing
2
Forward and reverse turning switch 8 Handle for starting or stopping of the car-
riage longitudinal shifting while threading
3
Wrench for the tool-holder 9 Flywheel for feeding the cross slide
4
Flywheel for shifting the tool-holder
slide
10 Flywheel for manual shifting of the car-
riage in longitudinal direction
5
Handle for tail-spindle fixing 11 Drum (handle) for selection of “thread”
(only available on CQ6125V models)
6
Flywheel for tail-spindle shifting 12 Variable speed control switch
