4. Safe handling of lithium batteries Guide

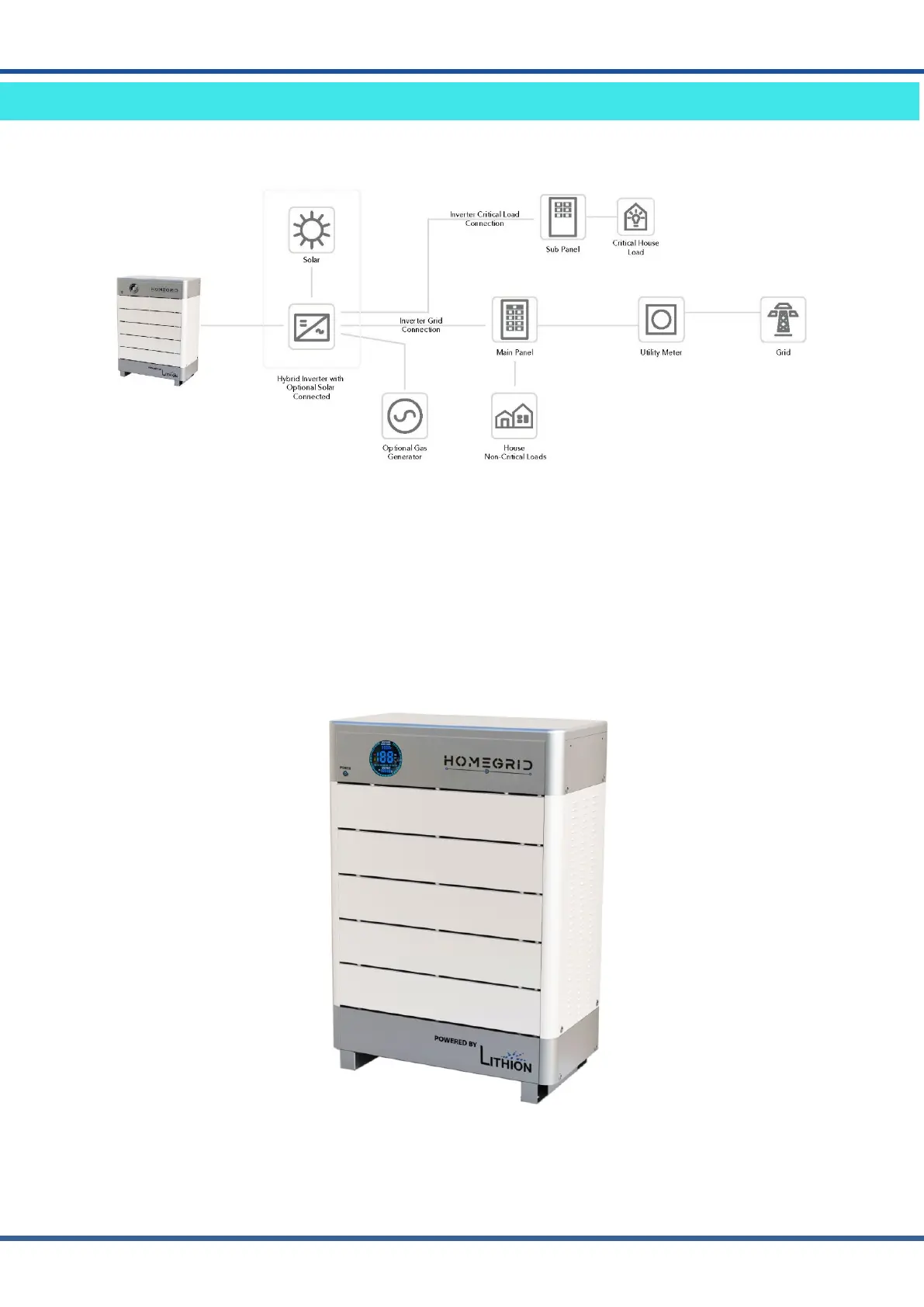

4.1. Schematic Diagram of Solution
Figure5.1.1.Schematicdiagramofsolution
4.2. Unpacking the system
Be careful when unpacking the system. The whole system is heavy. Don't lift it with poles or
sharp tools or by yourself, team lift is required. . Each modules weighs over 100lbs. The
weight of the battery can be found in the chapter "specifications".
The battery poles are located on the right side of the battery. The battery polarity is shown on
the left side of the battery. The positive pole is represented by "+" and the negative pole by "-
".
Figure5.2.1.Sideview of the whole system
