Page 24 Chapter 6: Installation
5. Installation
5.1. Package Items
Unpacking and check the Packing List:

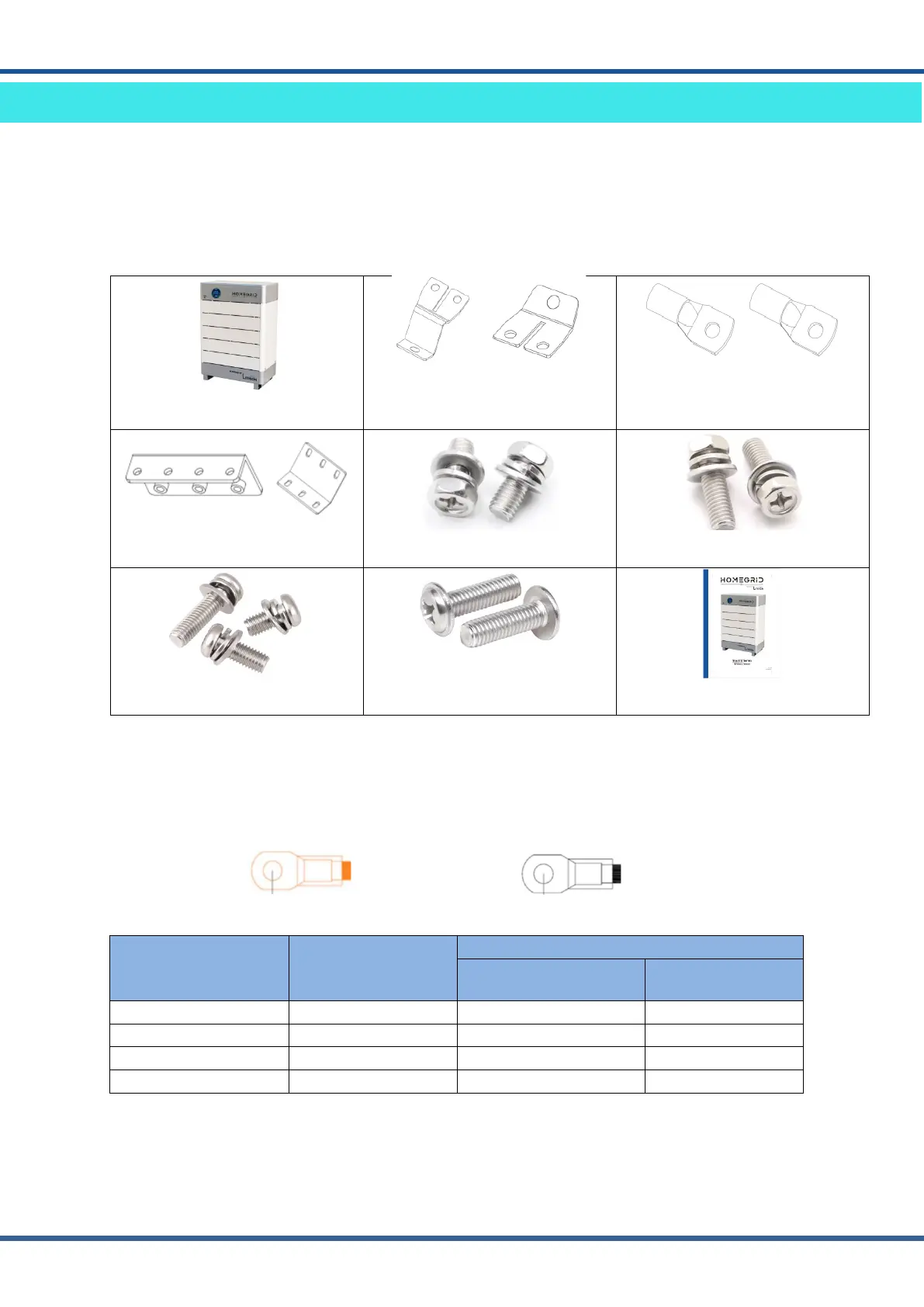

1）PACKING LIST
After receiving the complete system, please check to ensure that all the following components
are not lost or damaged
ESSsystem×1
Positive negative terminals ×2
Battery terminal ×2
Main control fixing bracket×2
M8*16x2
M6*10x6
M4*10x8
M3*12x15
User'smanualx1
2) Connector
Each system will be equipped with a positive connector and a negative connector. The two
connectors are not connected to the cable, and users can wire according to the actual
application needs.
Positive connector Negative connector
Model
Nominal
voltage(Vdc)
Cable specification
AWG mm
2
PF5-LFP04800-2A01
51.2Vdc
4
25
PF5-LFP09600-2A01 51.2Vdc 1/0 50
PF5-LFP14400-2A01
51.2Vdc
3/0
95
PF5-LFP19200-2A01
51.2Vdc
4/0
120
NOTE:
●Safety and compliance with regulations require the installation of independent DC overload protector or
disconnecting device between battery and inverter. Even if disconnecting devices are not required in some
applications, overload protection is still required. Refer to the table below for typical amperes as the required fuse
or circuit breaker standard.
