2.3. Specifications

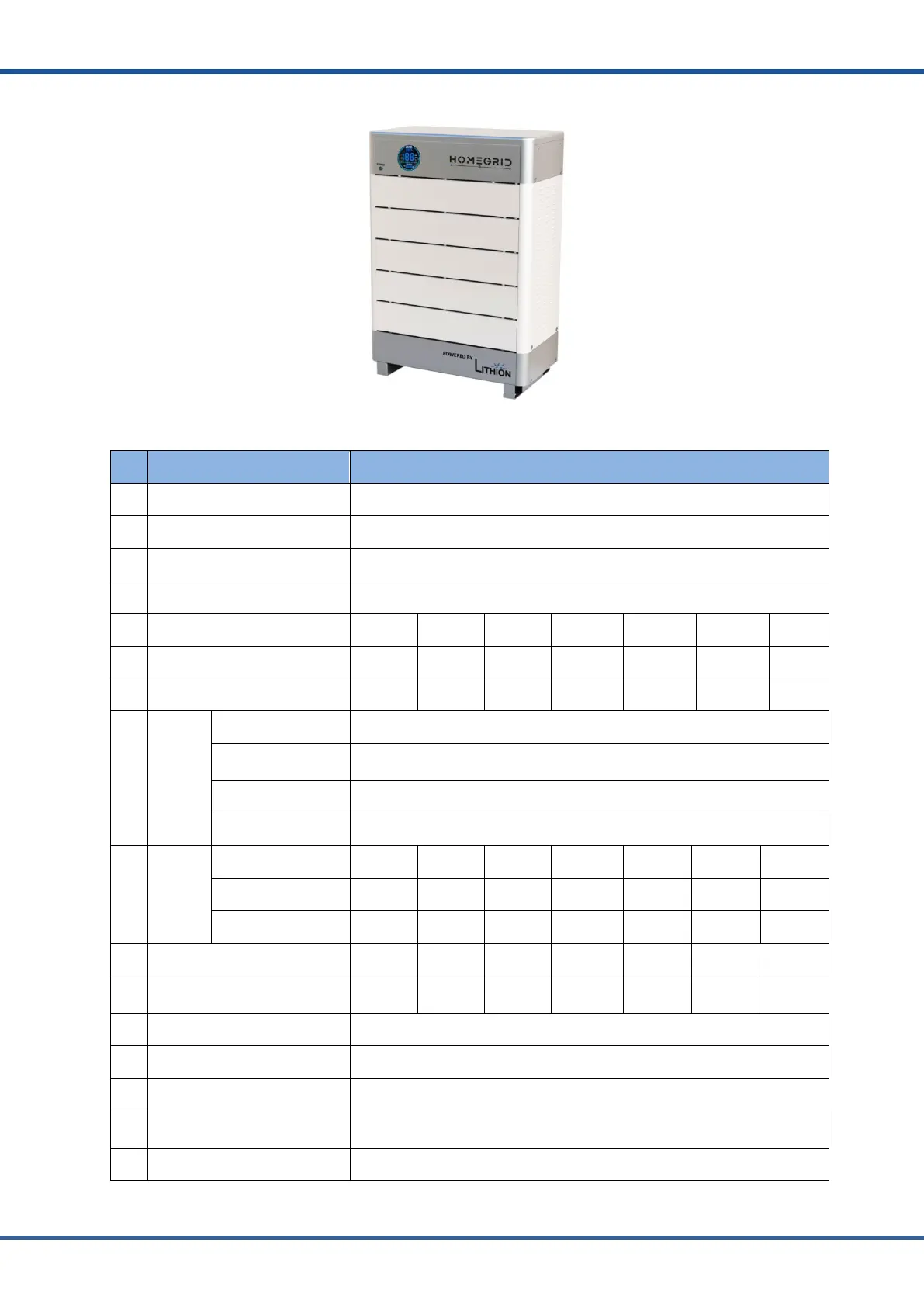

Figure2.3.1Overallsystemdiagram
No. Items Parameters
1 Model PF5-LFP***00-2A01
2 Main Controller Module HG-MC100-200M2
3 Battery Module Type HG-FS48100-15OSJ1
4 Battery Module Chemistry LiFePO4
5 Battery Module QTY 2 3 4 5 6 7 8
6 Nominal Capacity(Ah) 200 300 400 500 600 700 800
7 Nominal Energy(kWh)*** 9.60 14.4 19.2 24.0 28.8 33.6 38.4
8 Voltage
Nominal(V) 48.0
Recommend
Charging(V)
53.25
Max.Charging(V) 55.5
Discharge Cut-off(V) 40.5
9 Current
Max.Charging(A) 180 270 300 300 300 300 300
Max.Discharging(A)
180 270 300 300 300 300 300
Peak for 10s(A) 300 300 500 500 500 500 500
10 Weight (Approx.) 230lbs 325lbs 420lbs 515lbs 610lbs 705lbs 800lbs
11
Dimensions
(H*W=29”*D=15.75”)
24.2” 29.4 35.2” 41” 46.8” 52.6” 58.4”
12 Communication RS485, CAN
13 Cycle Life 6000 times@80%DOD
14 Designed Calendar Life ≥10 years
15 Safety Function
Over-charge, Over-discharge, Over-current, Low/High-temperature, Low-
voltage, Short-circuit Protections
16 Parallel Capability Maximum 15Stacks (Recommended 6 Stacks)
