Homelite ZIP START User Manual

9
3
1
2
10
9
5
4

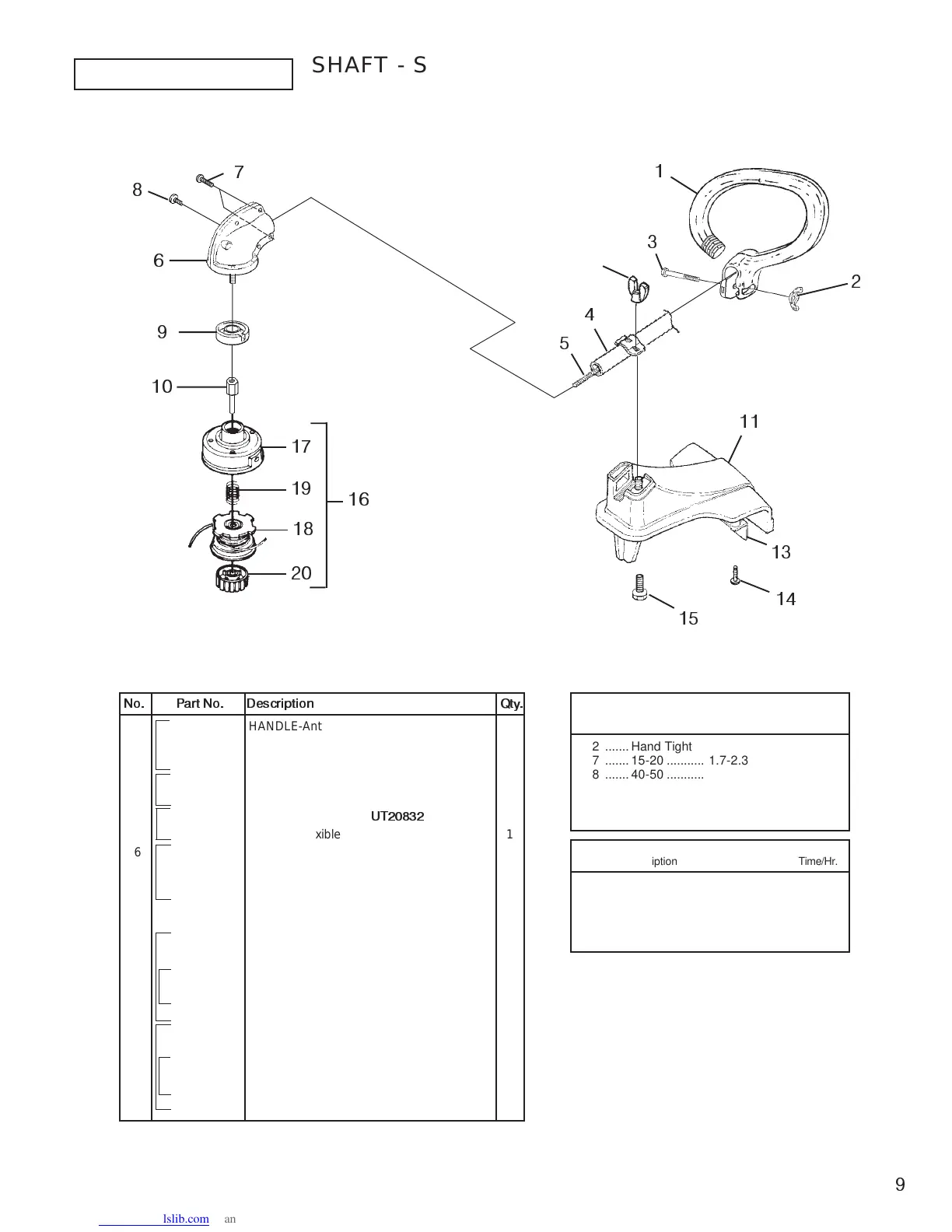

SHAFT - SPOOL & STRING - GRASS DEFLECTOR
16
18
20
17
19
1 • UP 06959 HANDLE-Anti-Vibe 1
2 UP 04262 NUT-Wing, Washer Faced (1/4-20) 1
3 UP 06523 SCREW-Cap Hex Hd. 1
4 • UP 04891 DRIVESHAFT ASSY. 1
5 UP 04717 SHAFT-Flexible 1
4 • UP 05071 DRIVESHAFT ASSY. ( UT20832 )1
5 UP 05072 SHAFT-Flexible 1
6 • UP 06970 GEARHEAD 1
8 UP 04404 Screw, Taptite Hex Hd. (10-24 x 1/2") 5
7 UP 04233 Screw-Hex Hd. (10-24 x 5/8") 2
9 UP 04126 WASHER-Flanged 1
10 UP 04128 ADAPTER-Shaft 1
11 • UP 04888 GRASS DEFLECTOR KIT 1
12 UP 04893 WING NUT 1
13 • UP 04890 BLADE-Cut-off 1
14 UP 03900 SCREW-Plastite. (10-14 X 3/4") 2
15 UP 04892 SCREW-Square Head 1
16 • DA 03001 A STRINGHEAD-Complete (.080") 1
17 UP 06567 HOUSING & EYELET (Dual Line) 1
18 • UP 00145 SPOOL & STRING (.080") 1
19 UP 06526 SPRING-Compression 1
20 UP 04273 RETAINER-Spool (R.H. Thread, Black) 1
No. P art No. Description Qt y.
Warranty Flat Rate
Job Description Time/Hr.
2 ....... Hand Tight
7 ....... 15-20 ........... 1.7-2.3
8 ....... 40-50 ........... 4.5-5.6
10 ....... 100-120 ....... 11.3-13.6
12 ....... Hand Tight
14 ....... 30-40 ........... 3.4-4.5
FM10 .. Stringhead Assy. ......................... .2
FN12 ... Driveshaft.................................... .3
FN13 ... Driveshaft Hsg. ........................... .3
FN15 ... Gearhead .................................... .3
FD20 ... Front Handle ............................... .2
Torque Specs
Item Required
No. In/Lbs Nm Loctite
7
8
6
13
11
14
12
15
Easy Reach ............... (UT20806)
Easy Reach ............... (UT20832, UT20837)
6/18/2001
