COMPONENT IDENTIFICATION

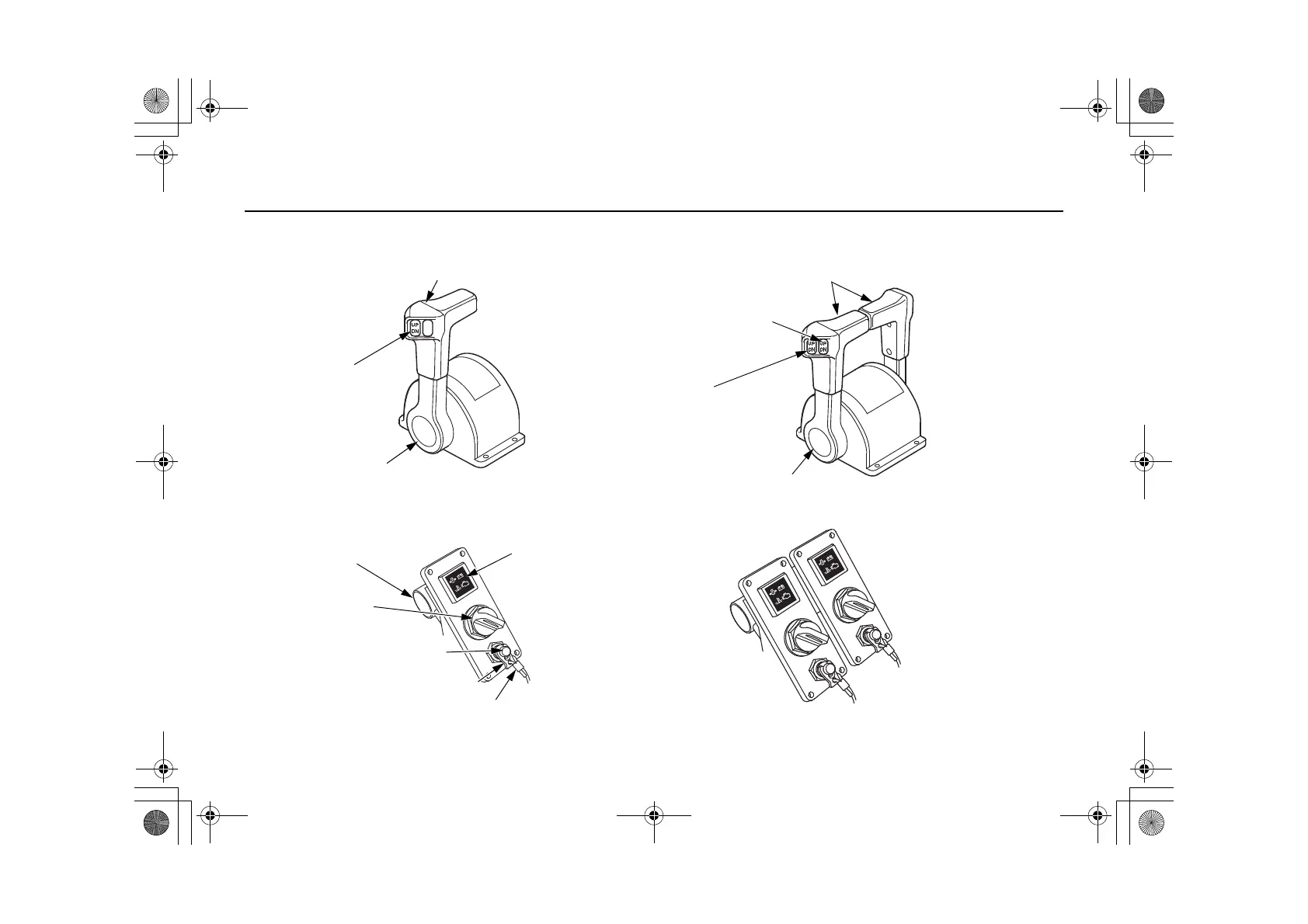

TOP-MOUNT TYPE (R3 type)
(SINGLE OUTBOARD MOTOR TYPE) (DUAL OUTBOARD MOTOR TYPE)
REMOTE CONTROL LEVER
POWER TRIM/TILT
SWITCH
FAST IDLE BUTTON
SWITCH PANEL (optional equipment)
(FLUSH-MOUNT, TOP-MOUNT)
INDICATORS
(Oil pressure, Overheat,
ACG, PGM-FI)
BUZZER
ENGINE SWITCH
EMERGENCY STOP SWITCH
EMERGENCY STOP SWITCH CLIP
EMERGENCY STOP SWITCH LANYARD
REMOTE CONTROL LEVERS
POWER TRIM/TILT
SWITCH (RIGHT)
POWER TRIM/TILT
SWITCH (LEFT)
FAST IDLE BUTTON
(for TOP-MOUNT DUAL type)
