92
OPERATION
Consult an authorized Honda
Outboard Motor dealer for the
method to adjust the tilt limit switch.
Press either UP or DN (down) of the
power trim/tilt switch and tilt the
outboard motor to the best position in
compliance with the cruising
conditions.
The power trim/tilt system operates
when the switch is pressed, and it
stops when the switch is released.
To trim up slightly, press on UP
momentarily but securely.
To trim down slightly, press on DN
(down) in the same manner.
For multiple outboard motors, the
trim/tilt angle of all outboard motors
is adjusted at the same time by using
the power trim/tilt switch on the
remote control lever and the trim/tilt
angle of each outboard motor is
adjusted by using each power trim/tilt
switch on the panel.

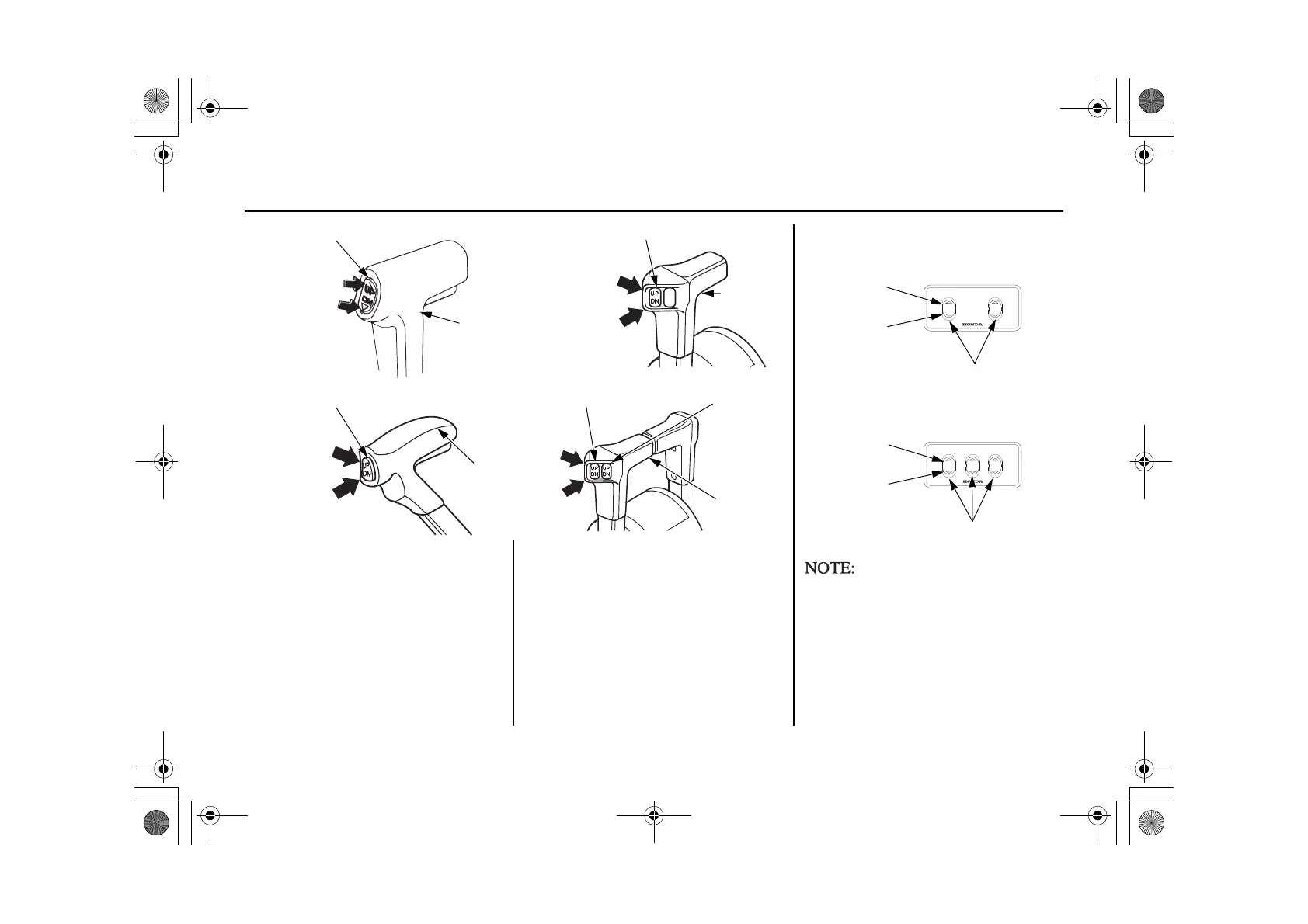

POWER TRIM/TILT SWITCH
PTT SWITCH PANEL
DUAL TYPE
Press UP to
raise bow
Press DN to
lower bow.
POWER TRIM/TILT SWITCH
TRIPLE TYPE
Press UP to
raise bow
Press DN to
lower bow.
㻰㻺
㼁㻼
㻰㻺
㼁㻼
3257 67%'
㻰㻺
㼁㻼
㻰㻺
㼁㻼
㻰㻺
㼁㻼
3257 67%'&(17(5
POWER TRIM/TILT SWITCH
Press UP to
raise bow.
Press DN to
lower bow.
REMOTE
CONTROL
LEVER
POWER TRIM/TILT SWITCH
Press UP to
raise bow.
Press DN to
lower bow.
(R1 type)
(R2 type)
REMOTE
CONTROL
LEVER
POWER TRIM/TILT SWITCH
(R3 type)
Single Type
Press UP to
raise bow.
Press DN to
lower bow.
REMOTE
CONTROL
LEVER
POWER TRIM/TILT SWITCH
(LEFT)
(RIGHT)
Dual Type
REMOTE
CONTROL
LEVER
