OPERATION
(R1 type)
(R3 type)
(R2 type)

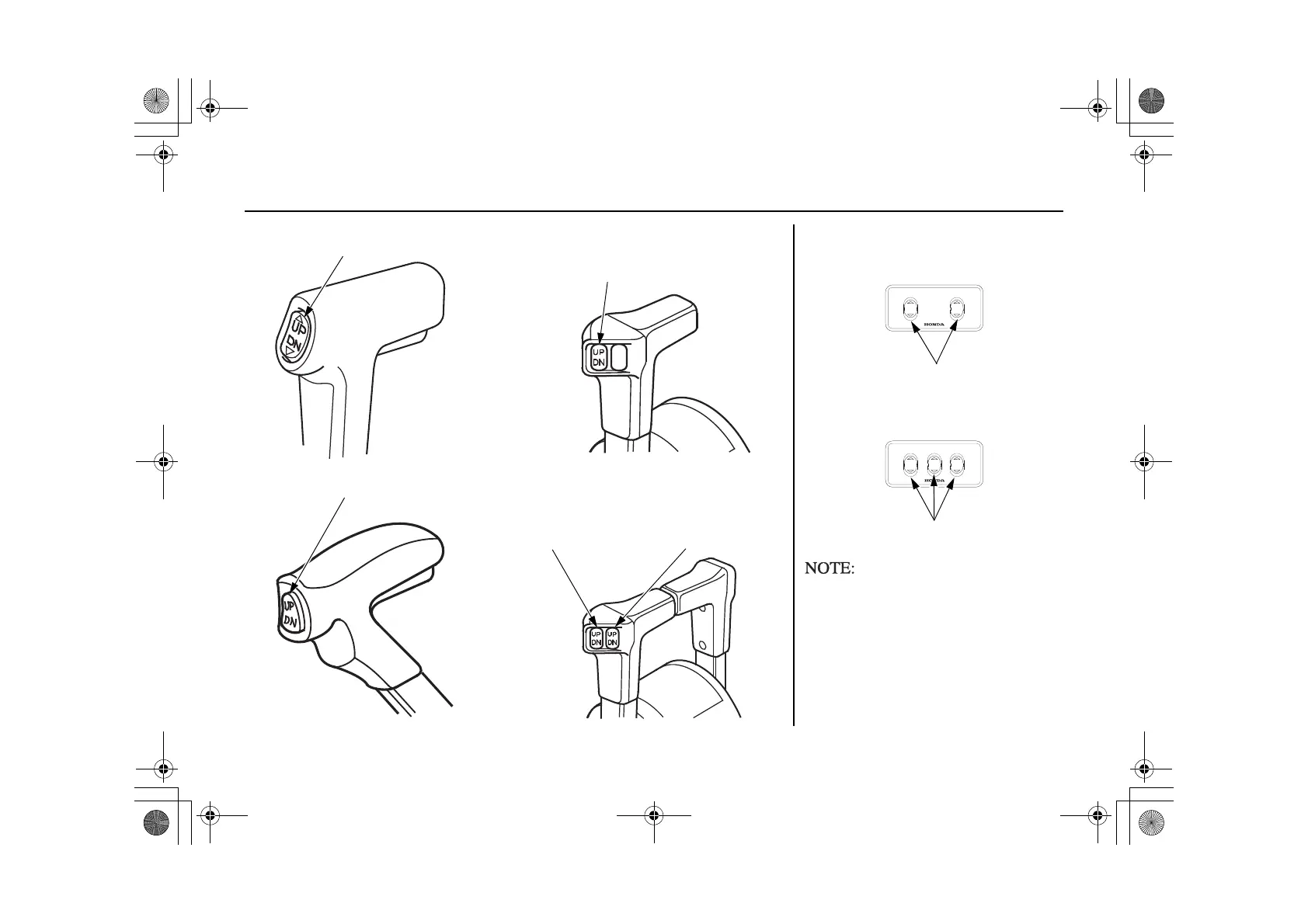

POWER TRIM/TILT SWITCH
POWER TRIM/TILT SWITCH
(single type)
POWER TRIM/TILT SWITCH
(dual type)
POWER TRIM/TILT SWITCH
(LEFT)
(RIGHT)
For multiple outboard motors, the
trim/tilt angle of all outboard motors
is adjusted at the same time by using
the power trim/tilt switch on the
remote control lever and the trim/tilt
angle of each outboard motor is
adjusted by using each power trim/tilt
switch on the panel.
POWER TRIM/TILT SWITCH
PTT SWITCH PANEL
DUAL TYPE
POWER TRIM/TILT SWITCH
TRIPLE TYPE
㻰㻺
㼁㻼
㻰㻺
㼁㻼
3257 67%'
㻰㻺
㼁㻼
㻰㻺
㼁㻼
㻰㻺
㼁㻼
3257 67%'&(17(5
