CONTROLS (H type)
Throttle GripChoke Knob (Manual choke type)
THROTTLE GRIP
CHOKE KNOB
OOFFFF
OONN
THROTTLE
INDICATOR

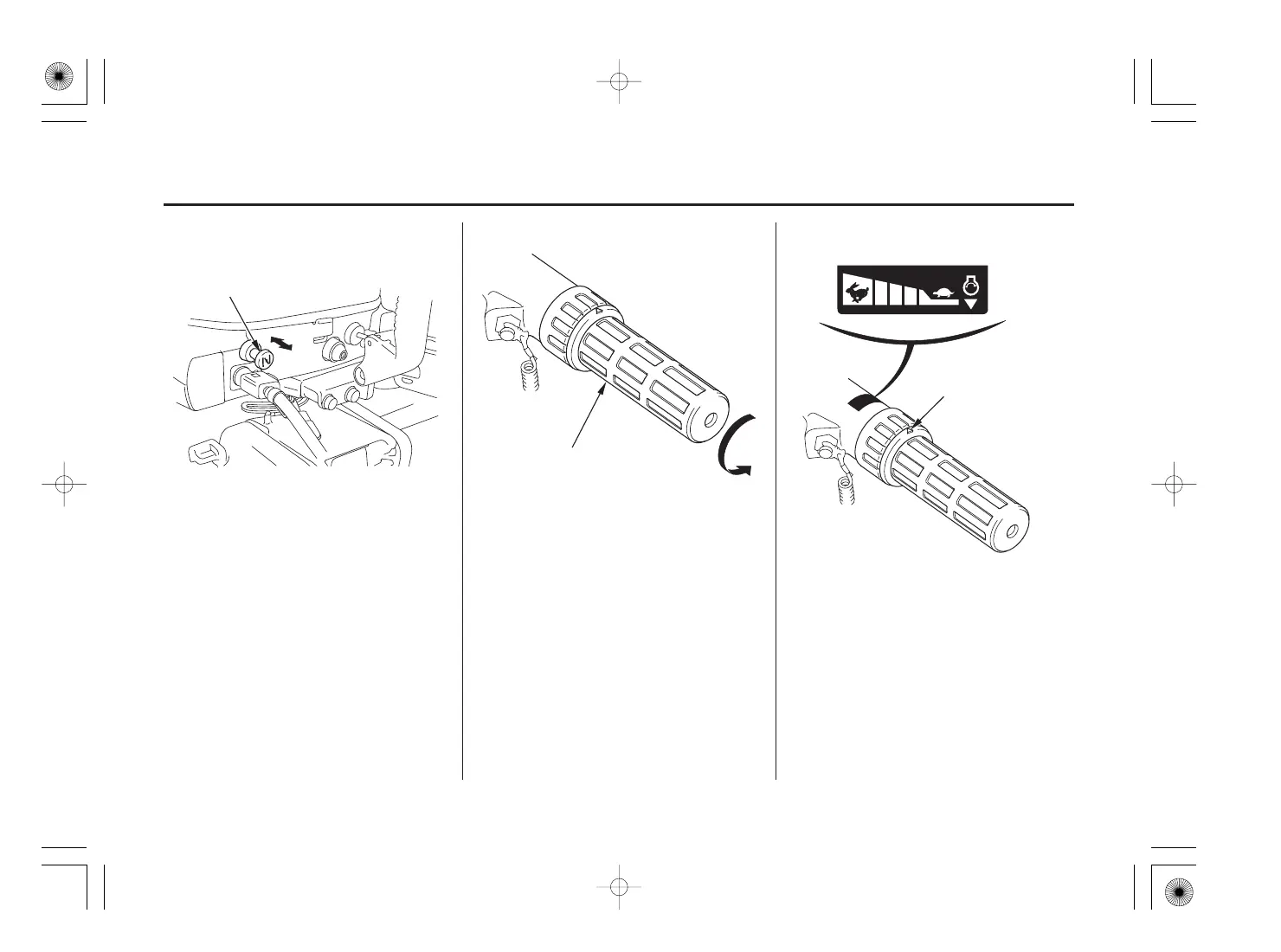

The curve on the grip label indicates
the engine speed.
The choke knob opens and closes the
choke valve in the carburetor.
Turn the grip clockwise or
counterclockwise to adjust the engine
speed. Turning the grip in the
direction shown by arrow increases
the engine speed.
The ON position enriches the fuel
mixture for starting a cold engine.
The OFF position provides the
correct fuel mixture for operation
after starting, and for restarting a
warm engine.
