CONTROLS (R type)
Remote Control Lever
REMOTE CONTROL LEVER
ENGINE SPEED
ENGINE SPEED
F(forward)
N (neutral)
R (reverse)
LOW
LOW
SHIFT
SHIFT
HIGH
HIGH
NEUTRAL
RELEASE LEVER
REMOTE CONTROL LEVER

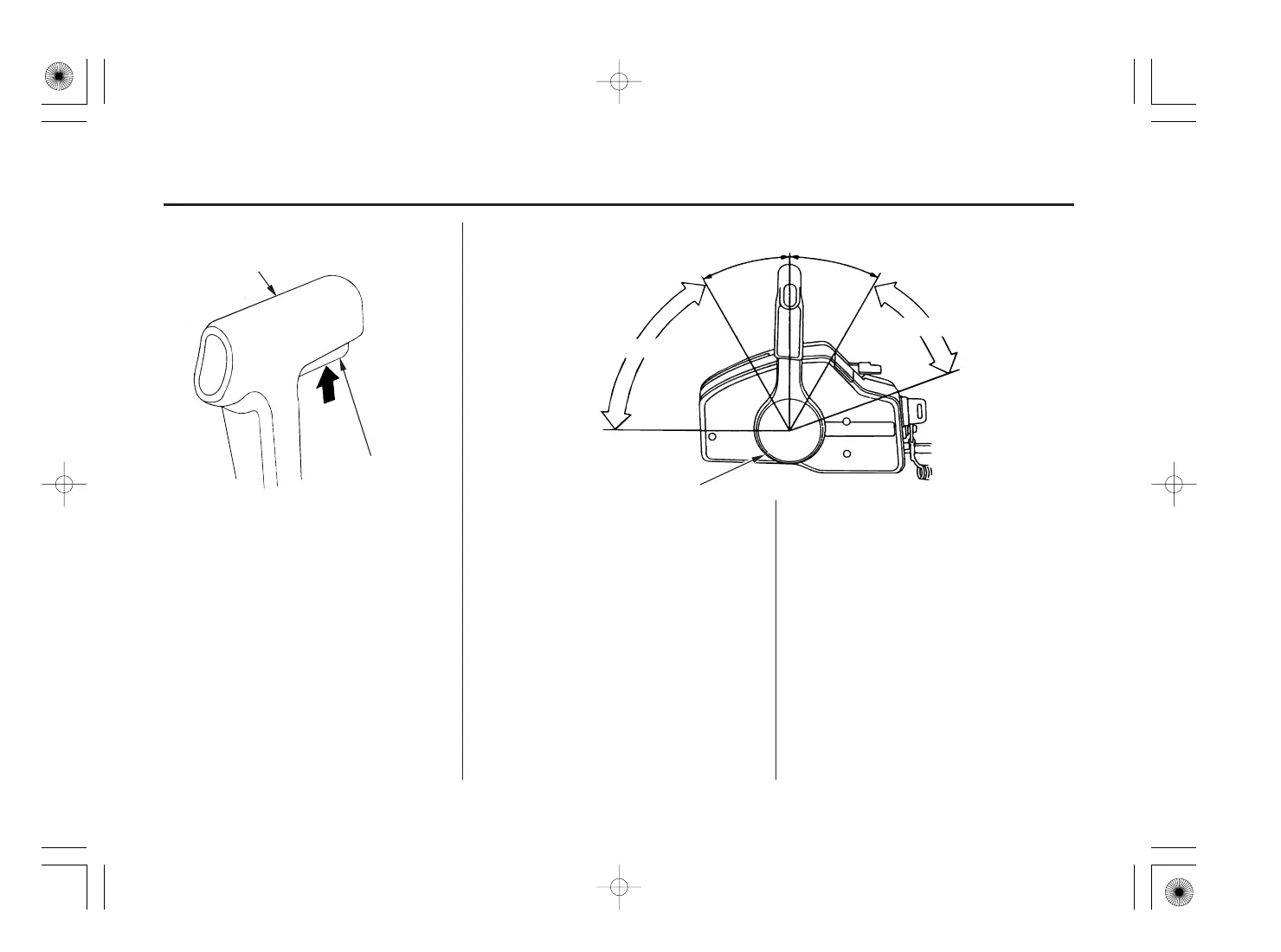

Shifting gear into forward, reverse,
or neutral and the engine speed
adjustment can be performed with
the remote control lever.
FORWARD: REVERSE:
Moving the lever to the FORWARD
position (i.e. approximately 30° from
the NEUTRAL position) engages the
gear into forward. Moving the lever
further from the FORWARD
position will increase the throttle
opening and the boat forward speed.
Moving the lever to the REVERSE
position (i.e. approximately 30° from
the NEUTRAL position) engages the
gear into reverse. Moving the lever
further from the REVERSE position
will increase the throttle opening and
the boat reverse speed.
Engine power is cut off from the
propeller.
NEUTRAL:
Push up the neutral release lever
before operating the remote control
lever.
