Honda BF8D - Steering Handle Friction (H type); Remote Control Lever Friction (R type)

55
Remote Control Lever Friction
(R type)

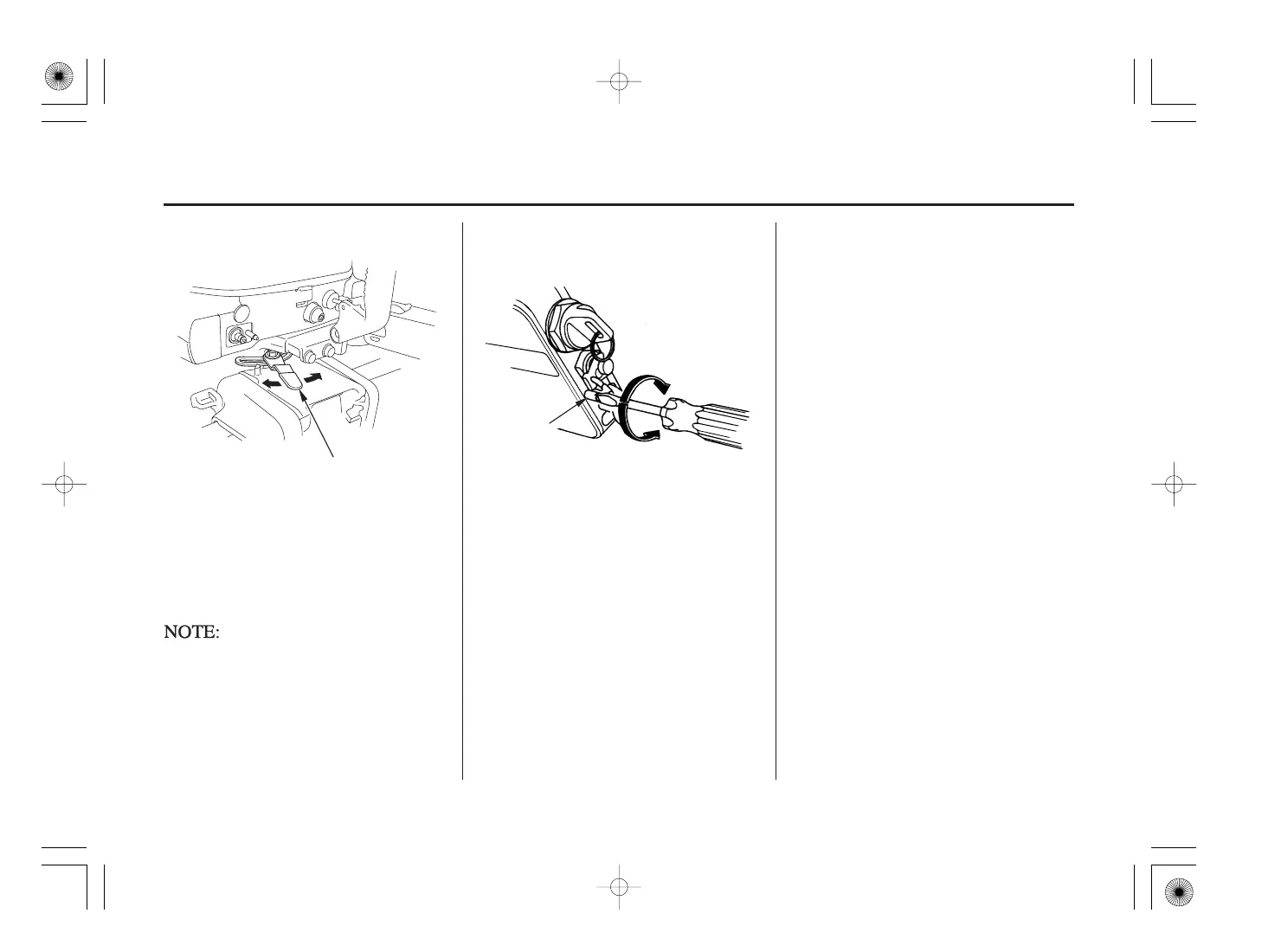

Steering Handle Friction (H type)
PRE-OPERATION CHECKS
TO INCREASE
FRICTION
TO DECREASE
FRICTION
FFRREEEE
LLOOCCKK
REMOTE
CONTROL
FRICTION
ADJUSTER
STEERING FRICTION LEVER
Check whether the handle moves
smoothly.
Check whether the remote control
lever moves smoothly.
For smooth steering, adjust the
steering friction lever so that a slight
drag is felt when turning.
Friction of the lever can be adjusted
by turning the remote control friction
adjuster right or left.
Do not apply grease or oil on the
friction lever. Grease or oil will
reduce the friction of the lever.
