BF8D:
BF10D:
BF15D:
BF20D:
433 mm (17.0 in)
563 mm (22.2 in)
703 mm (27.7 in)
S:
L:
X:
Type: T
5.9 kW (8.0 PS)
7.4 kW (10 PS)
11.0 kW (15 PS)
14.7 kW (20 PS)
Do not exceed the boat
manufacturer’s power
recommendation. Damage and
injury may result.
40
Improperly installed outboard
motor can result in the outboard
motor dropped into the water, boat
not able to cruise straight ahead,
engine speed not increase, and
much fuel consumption.

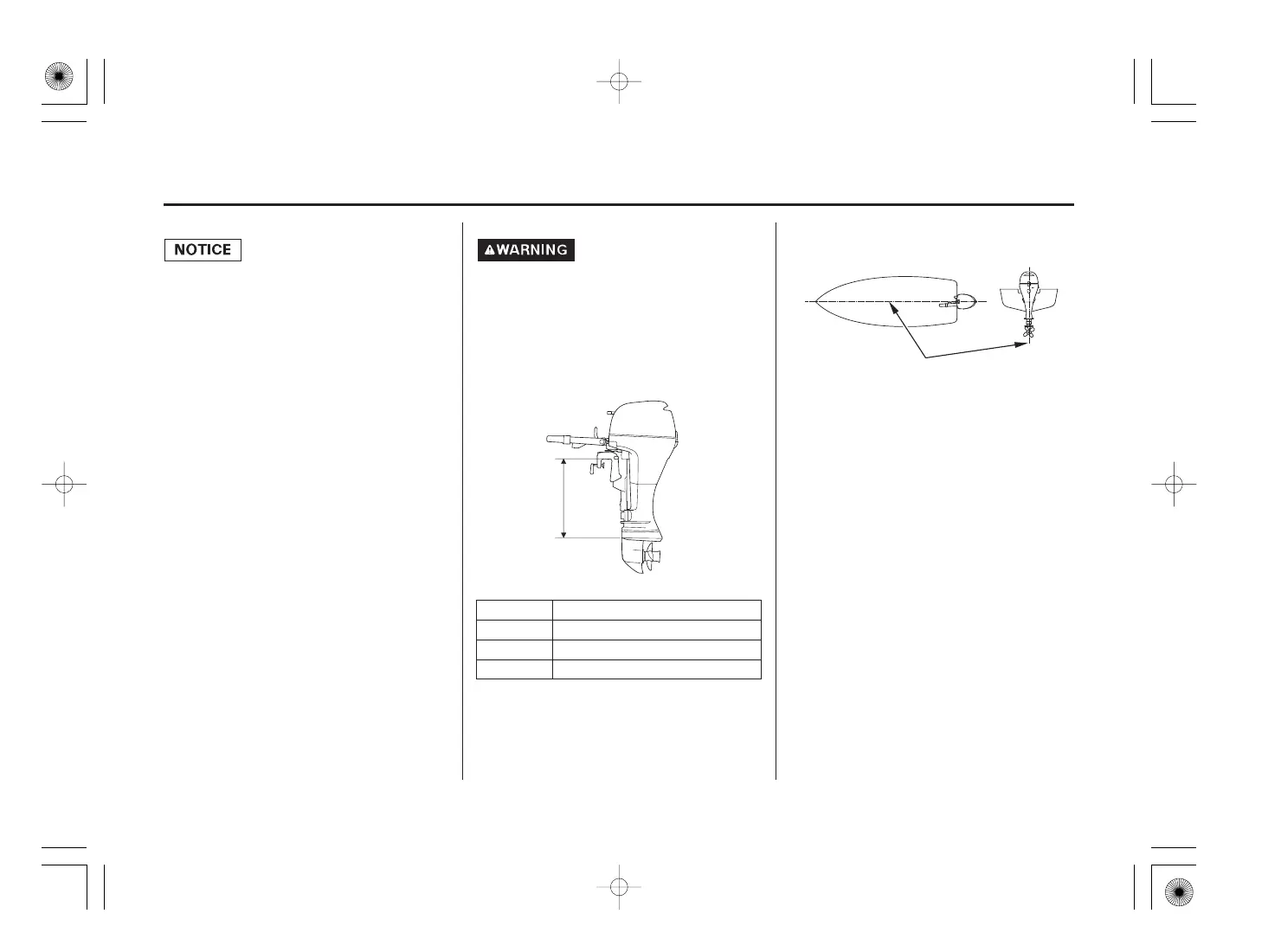

Location
Transom Height
INSTALLATION5.
T
CENTER LINE
Consult the authorized Honda dealer
in your area for the Y-OP (User
Optional Parts)/equipments
installation and operation.
We recommend that the outboard
motor be installed by an authorized
Honda outboard motor dealer.
Applicable Boat
Select the boat suitable for the engine
power.
Power recommendation is indicated
on most of the boats.
Select the outboard motor which is
correct for the boat transom height of
your boat.
Install the outboard motor at the stern,
at the center line of the boat.
The antiventilation plate of the
outboard motor should be
050mm(02in)belowthe
bottom of the boat.
The correct dimensions differ
according to the type of the boats and
the configuration of the bottom of
the boats. Follow the manufacture’s
recommended installation height.Engine power:
